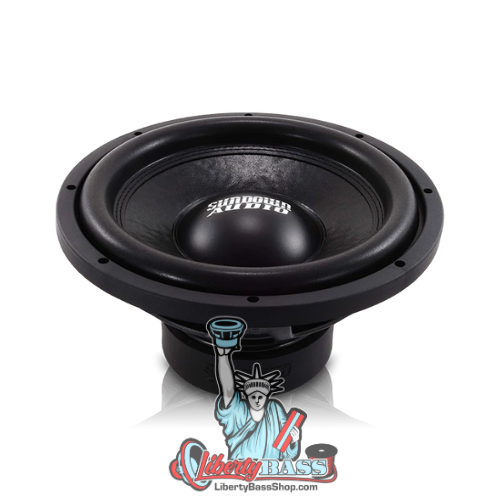

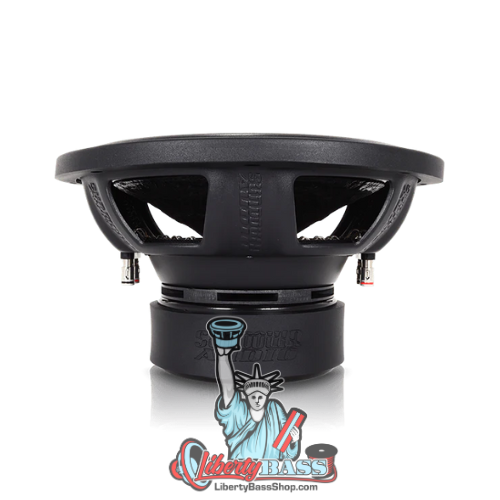

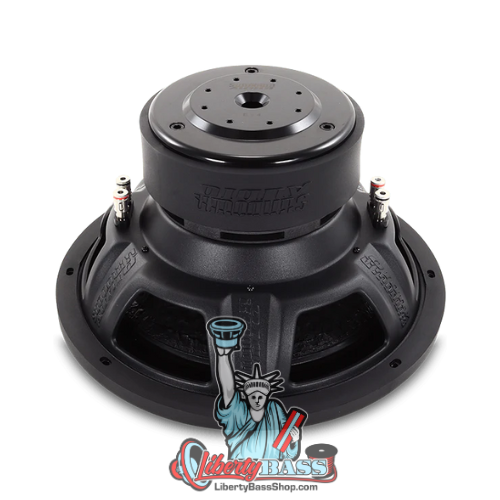

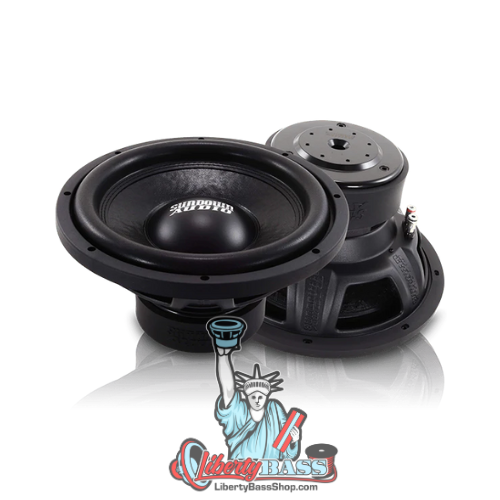

• E-Series V.4 12” Subwoofer

• Features

  • RMS 500 watts

    Dual 2 or 4 ohm voice coils

    Optimized for ported enclosures

    Class-leading 14mm Xmax

    Double-stacked magnet

    Vented magnetic gap & pole piece for superior cooling

    High strength stamped steel frame

    High temp 4-layer copper voice coil wire

    High-quality push terminals

    Stitched-on Mini-XL tinsel leads

    Typical entry-level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance. Through relentless research in their North Carolina Headquarters, Sundown optimized a 2.5” voice coil and a truly unique motor design to get the deepest possible bass response out of a 12” subwoofer.

    The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.

Enclosure Specifications
