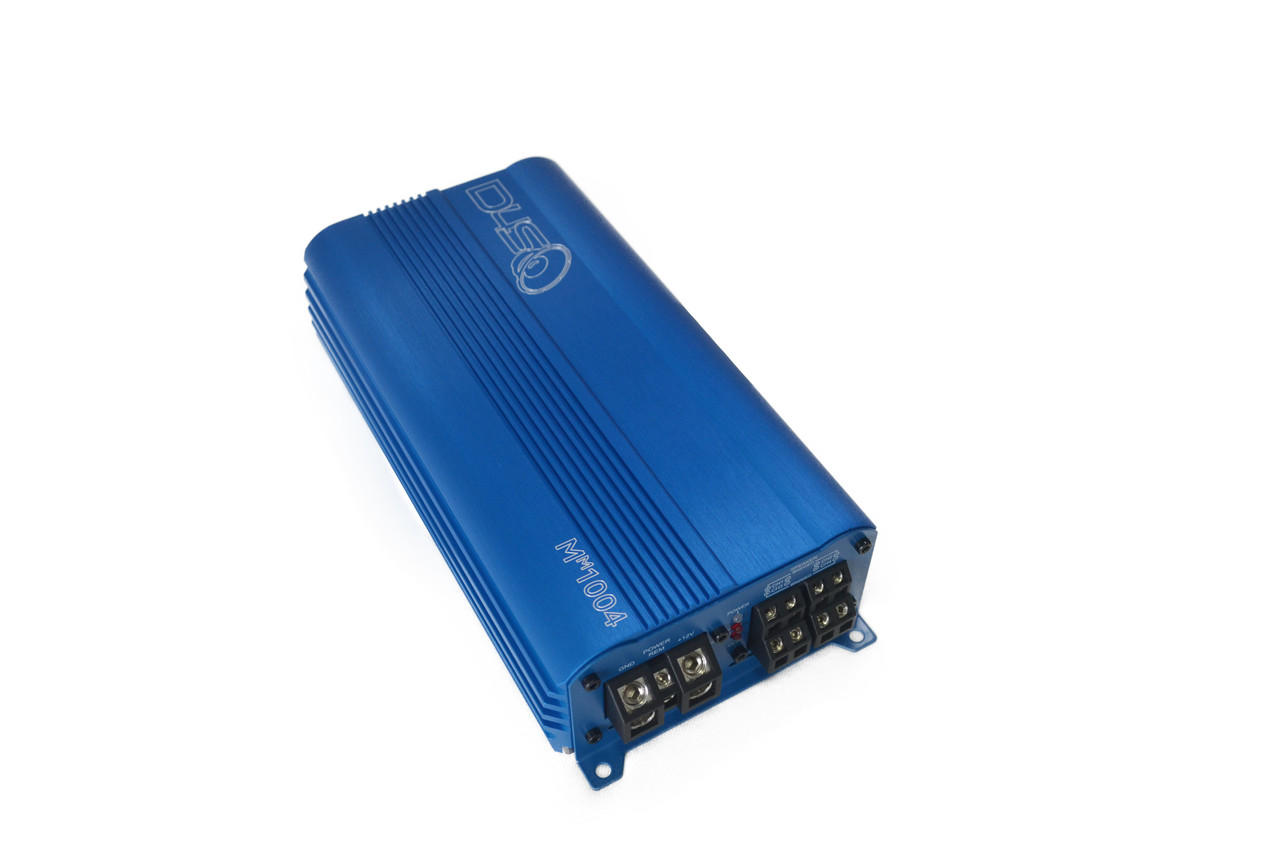

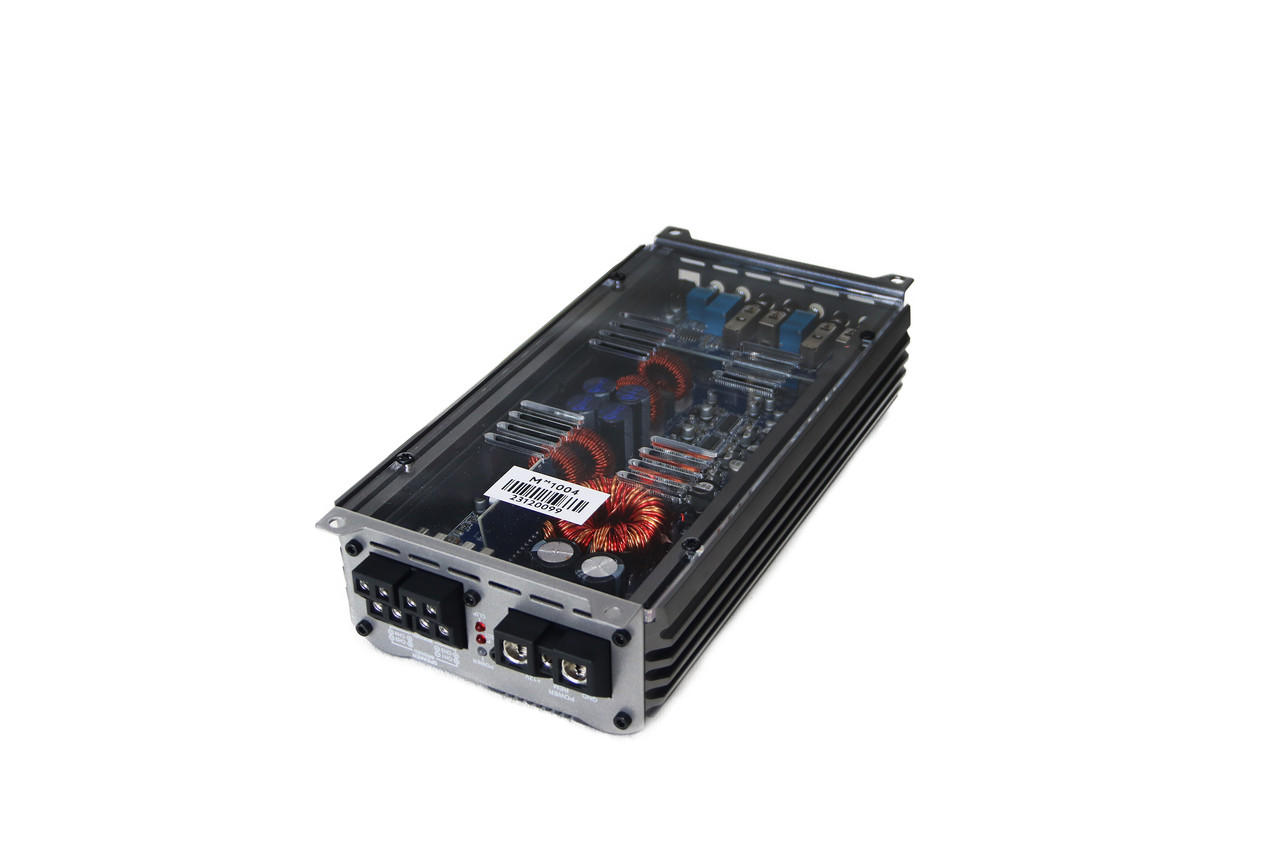

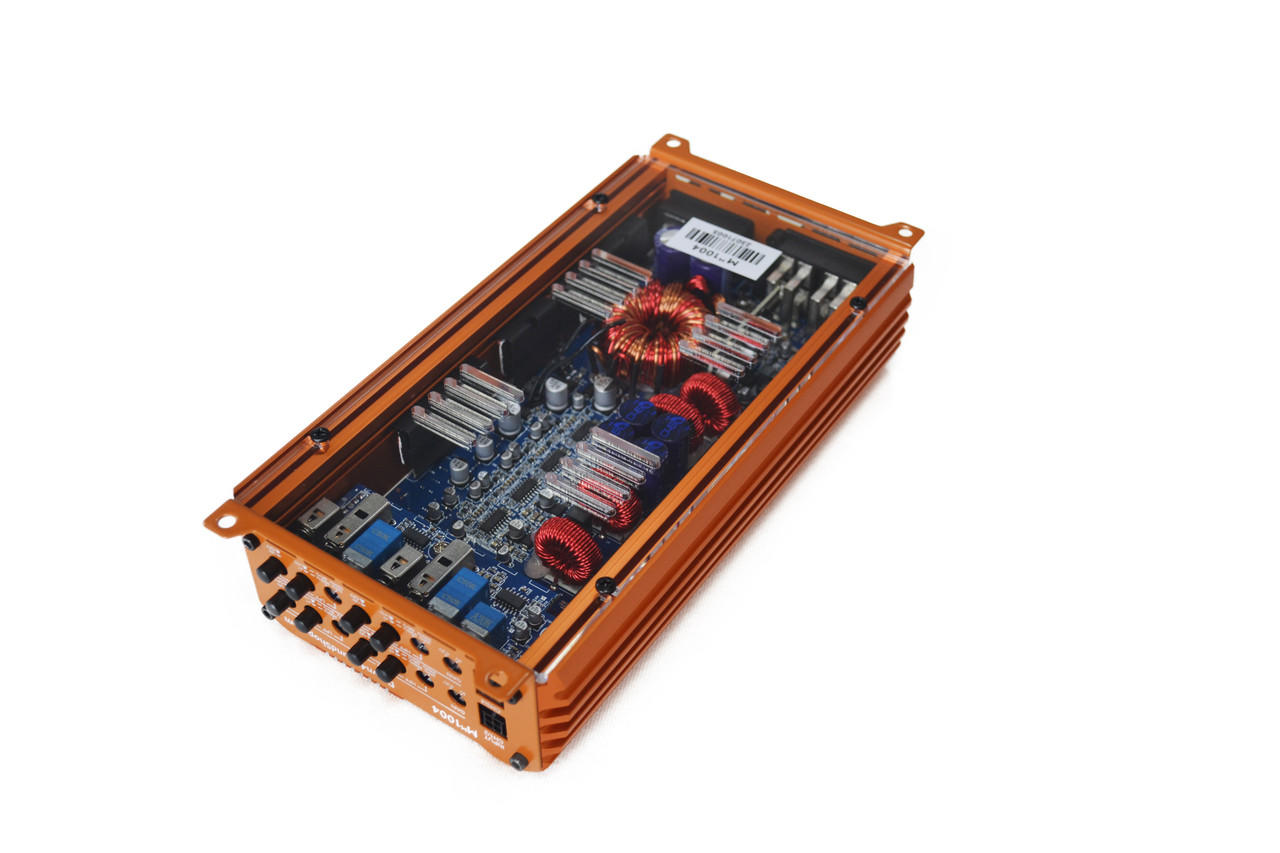

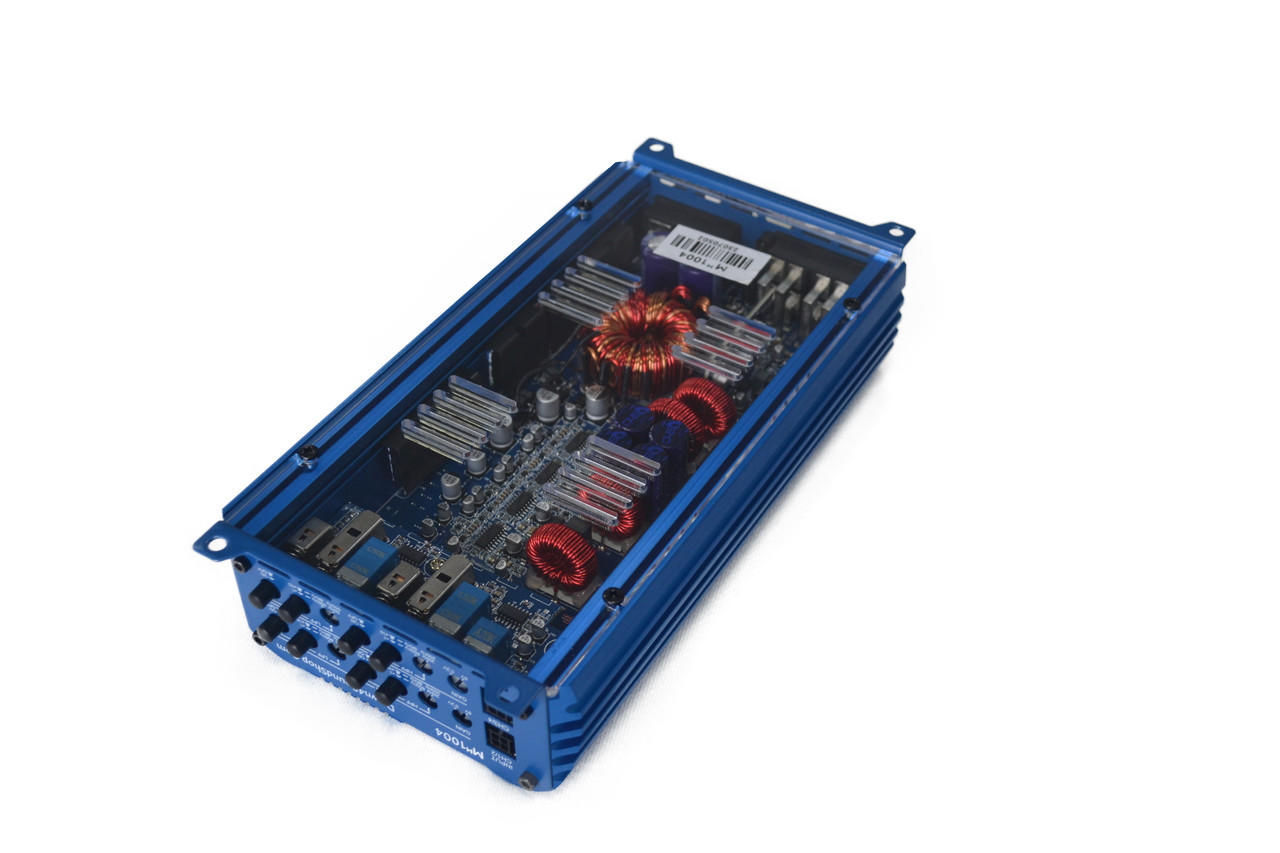

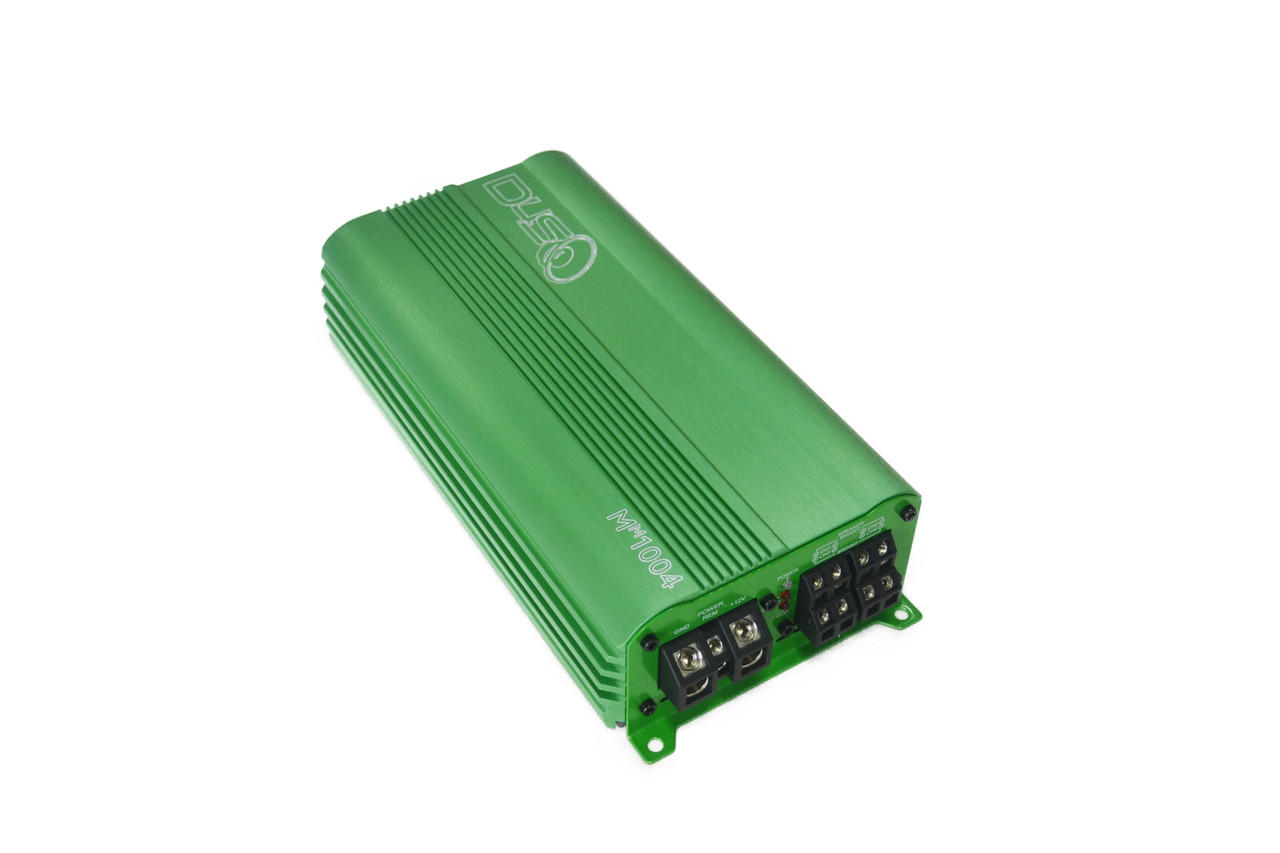

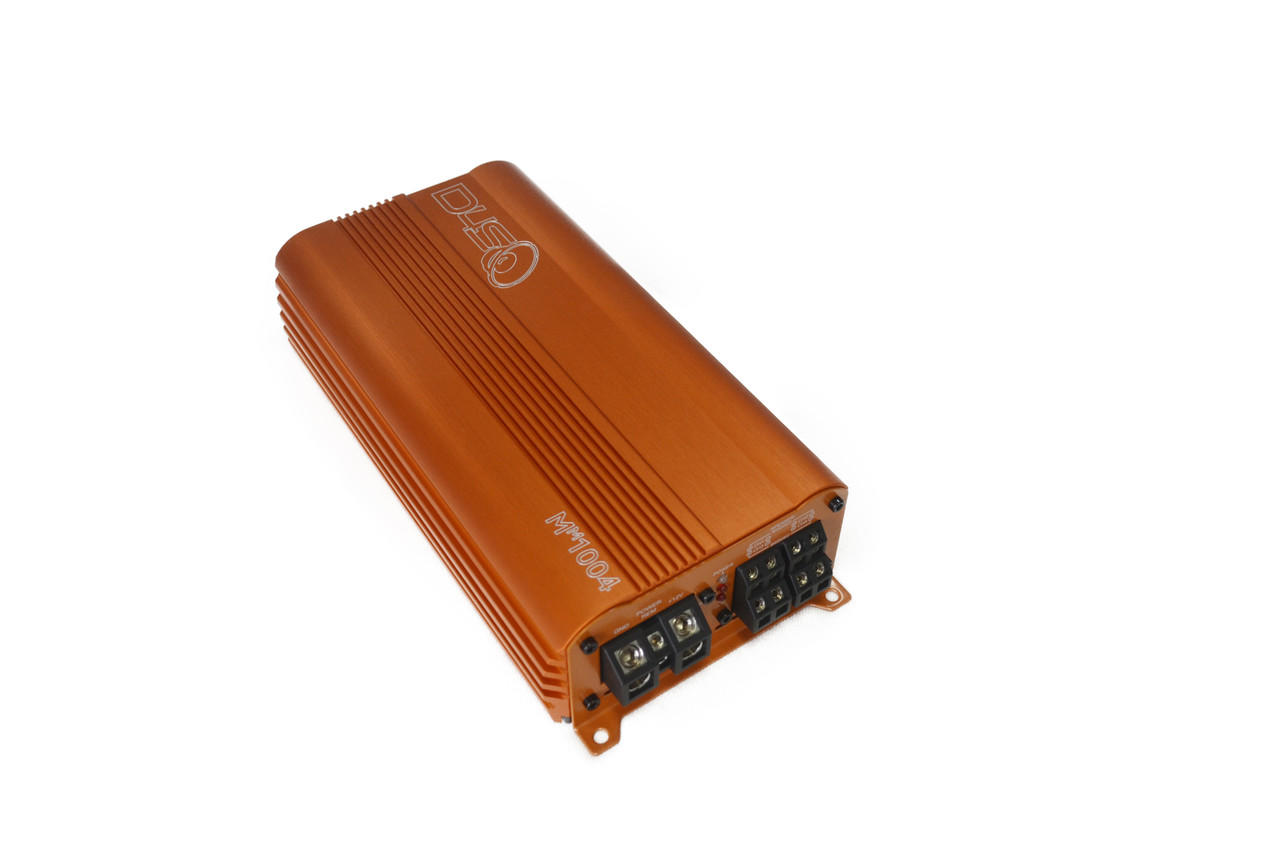

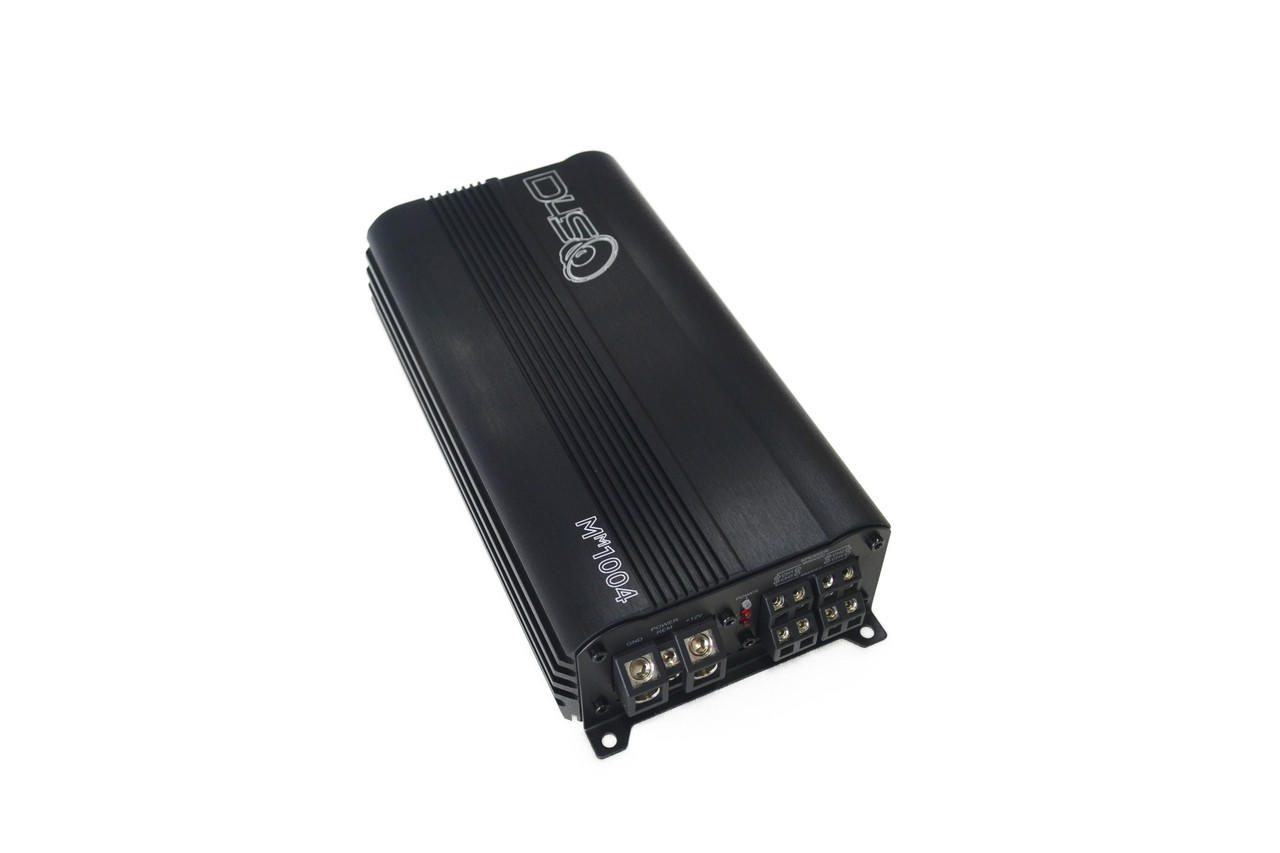

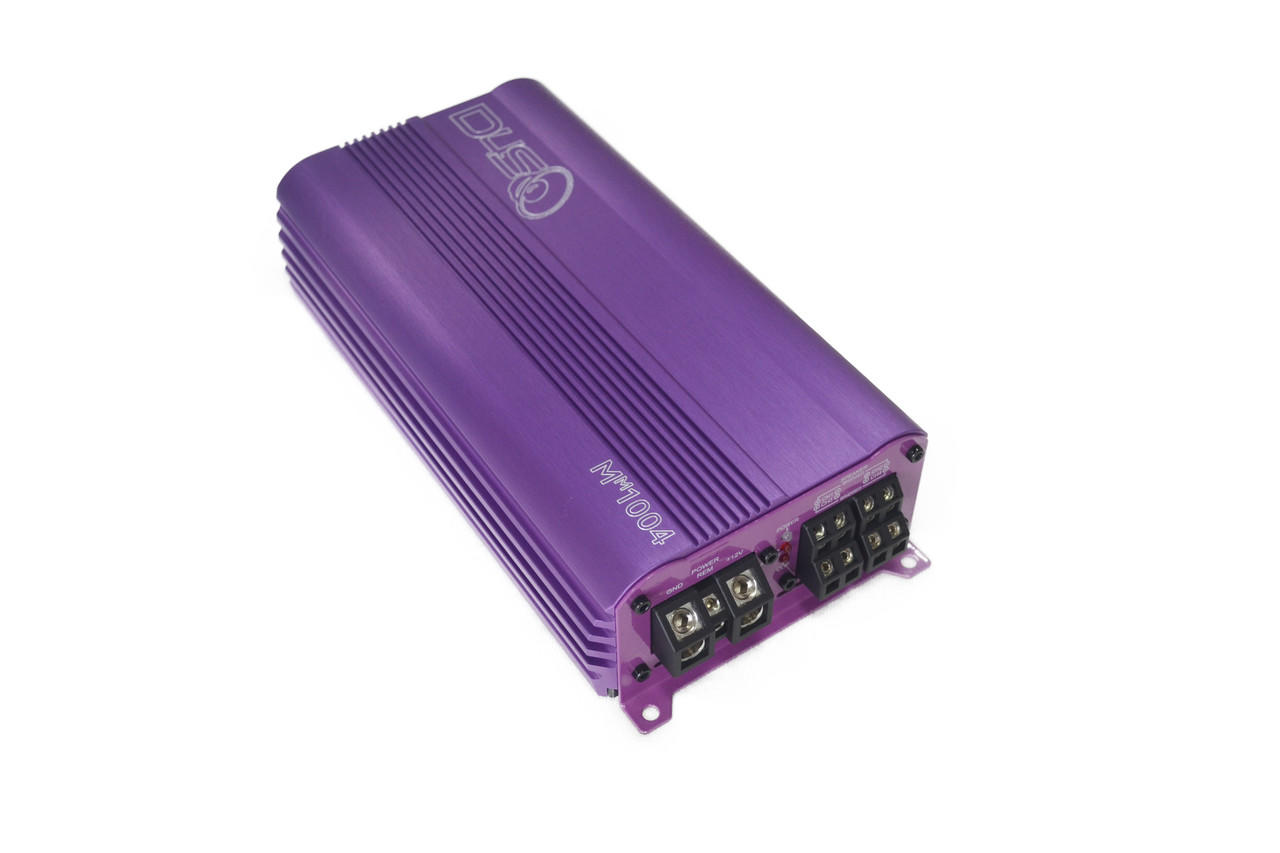

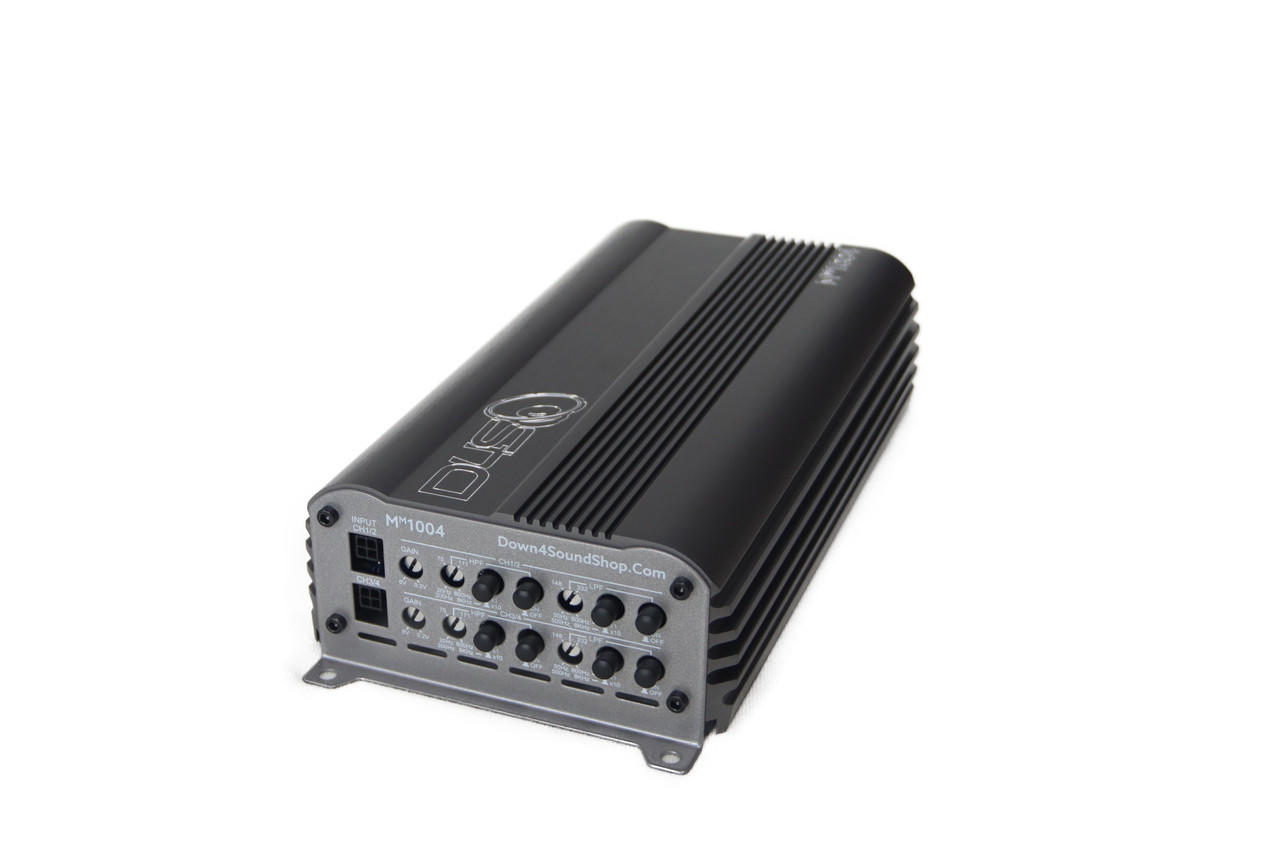

Down4Sound MM1004 (Mini Maxx) | 700W RMS Mini 4 CH Car Audio Amplifier

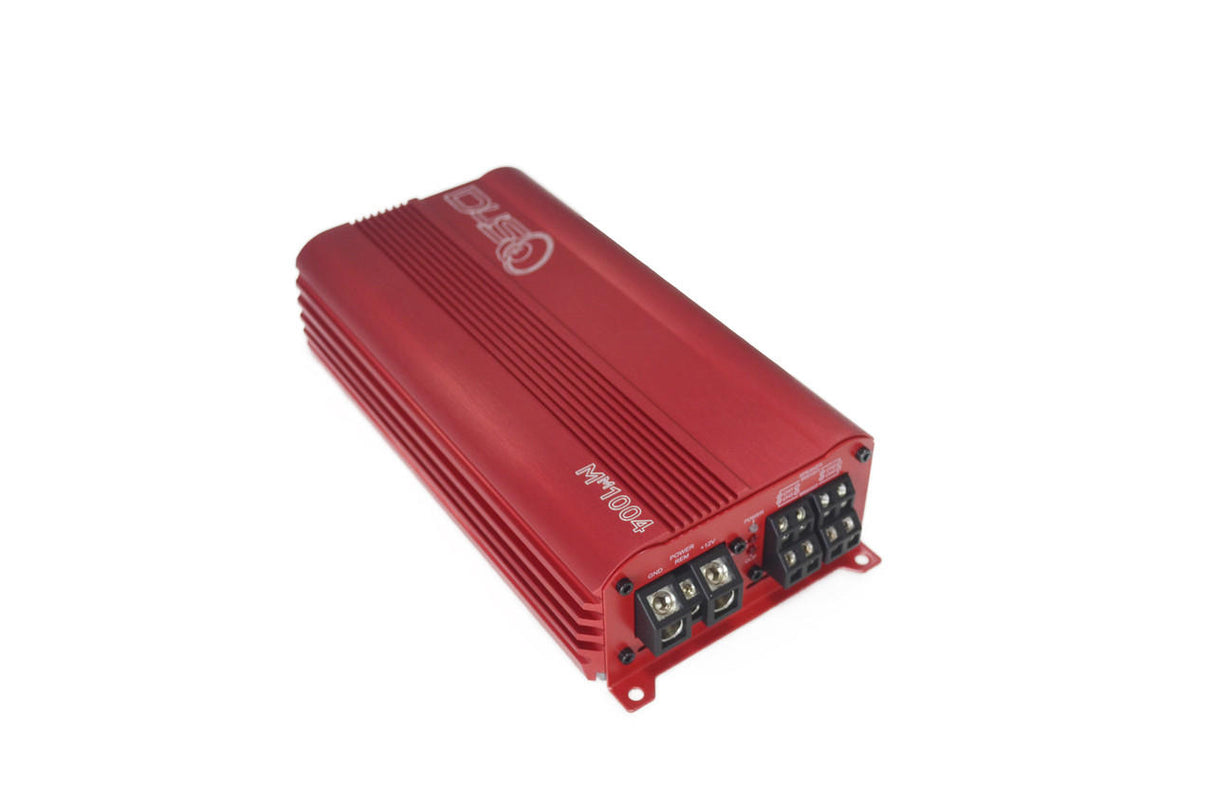

Unleash the sound of music to it full potential with the MM1004 a RED MINI 4-Channel Amplifier

Designed to be compact with band-passable crossovers X1 & X10, this dynamic amplifier allows you to run mids and highs on one channel and bass on the other, or bi-amplify the 4 channels differently for a customizable listening experience.

**Technical Specifications:**

• 4ohm rms power : 100W x 4ch
• 2ohm rms power : 150W x 4ch
• 4ohm rms bridged power :¬†300W - 350W x 2ch Tested at 14,4V & 1% THD (RANGE)
• Frequency response : 10Hz ‚Äì23.8KHz
• Signal to noise : 93dB Damping factor : 100
• Input sensitivity : 6V ‚Äì0.2V

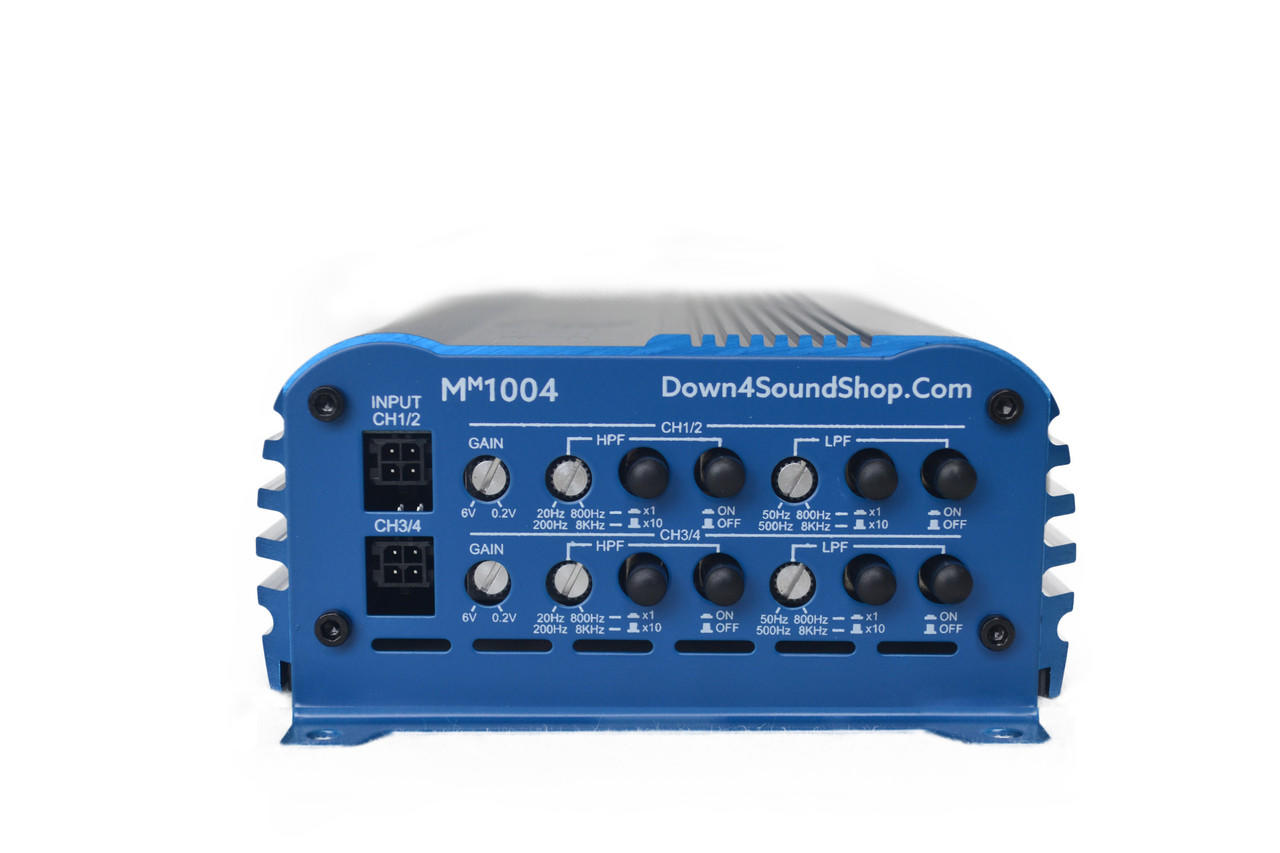

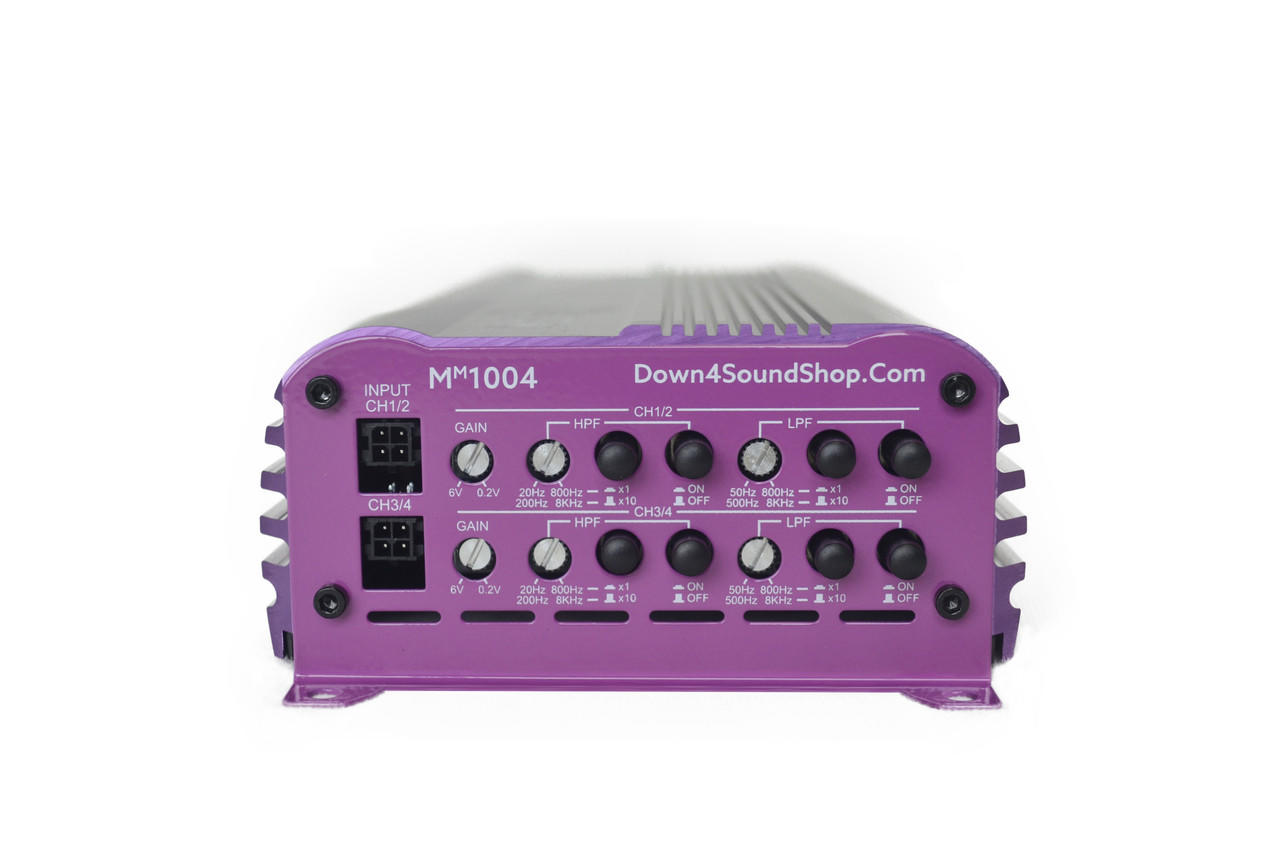

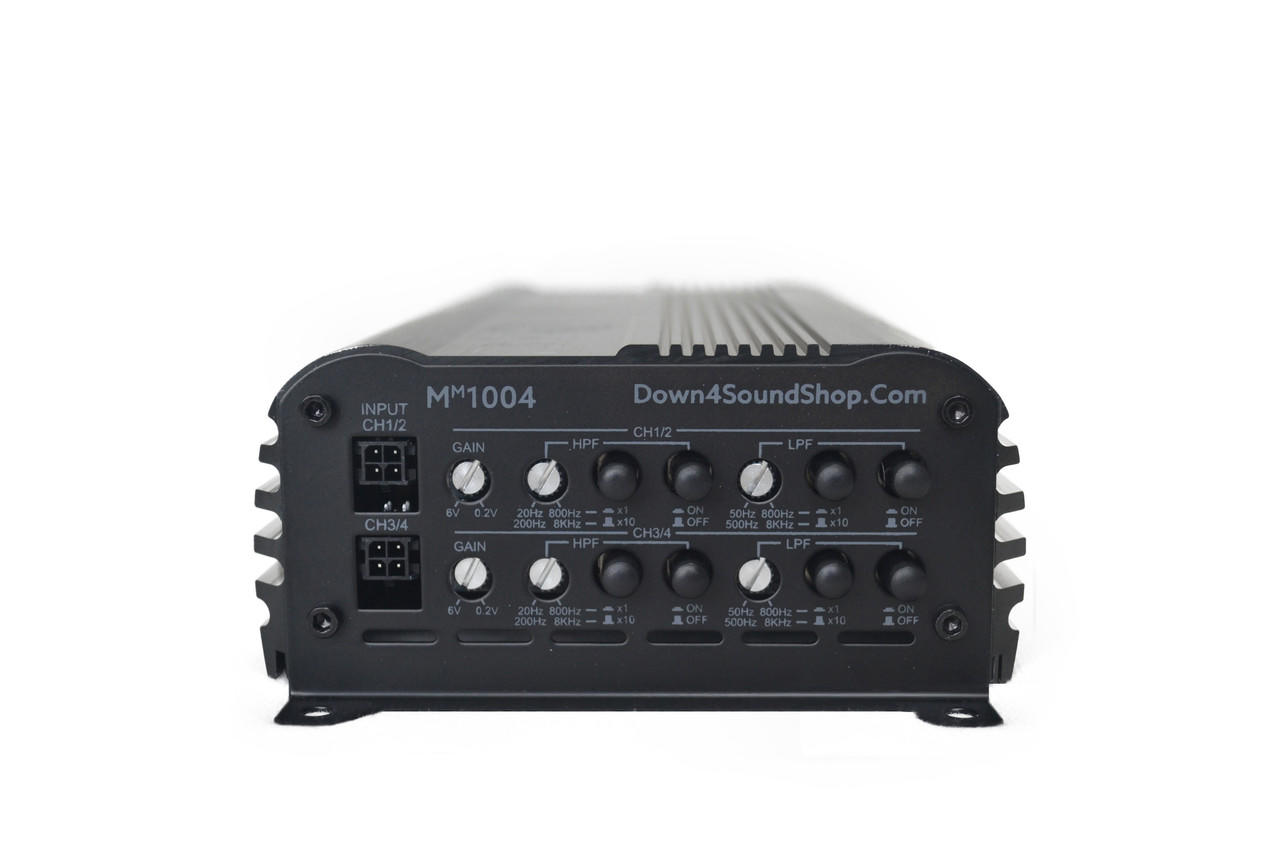

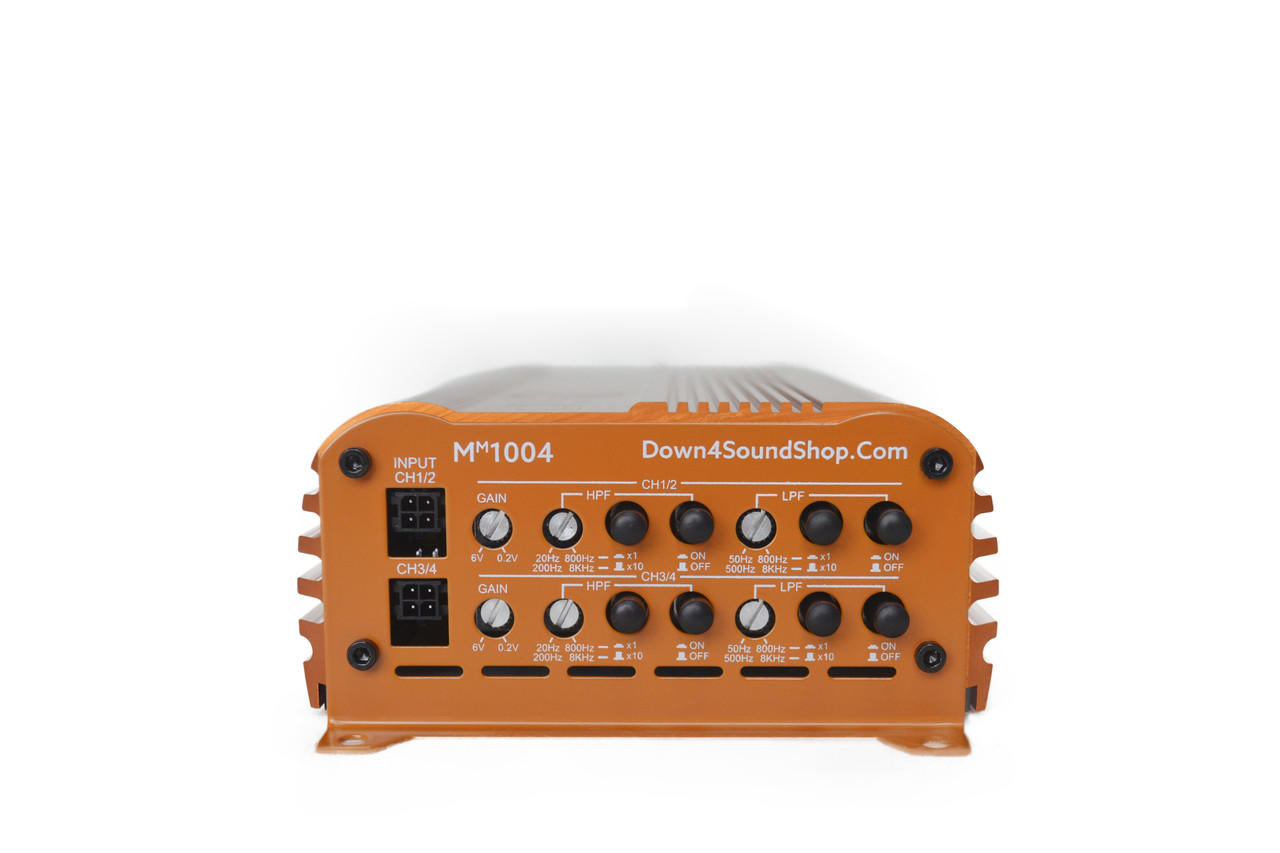

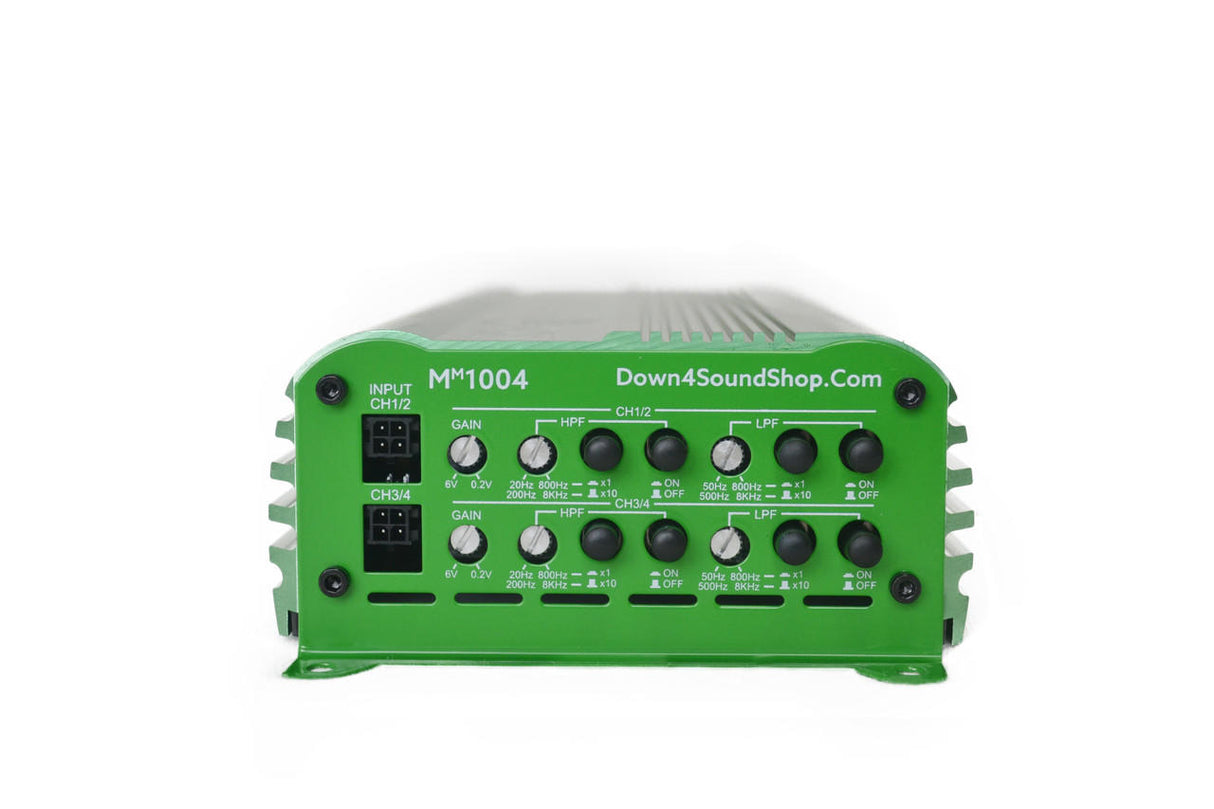

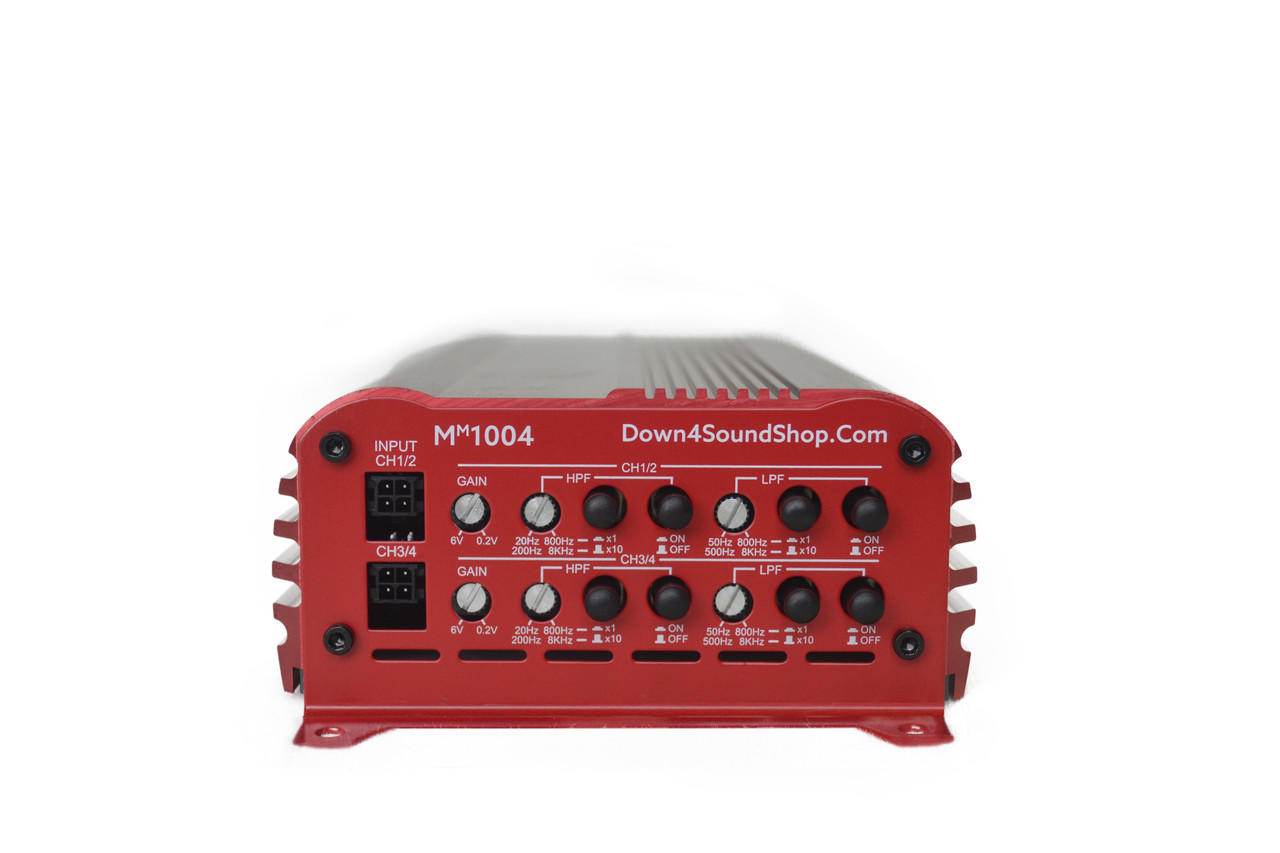

• CH1/2 High Pass Filter : 20Hz ‚Äì800Hz
• HighPass multiply : x1, x10 ( 200Hz ‚Äì8Khz )
• Low Pass Filter : 50Hz ‚Äì800Hz Low Pass multiply : x1, x10 ( 500Hz ‚Äì8Khz )¬†Bandpass capable
• CH3/4 High Pass Filter : 20Hz ‚Äì800Hz
• High Pass multiply : x1, x10 ( 200Hz ‚Äì8Khz )
• Low Pass Filter : 50Hz ‚Äì800Hz Low Pass multiply : x1, x10 ( 500Hz ‚Äì8Khz ) Bandpass capable
• Clipping Indicator
• Working voltage : 9 to 15.5Volts.

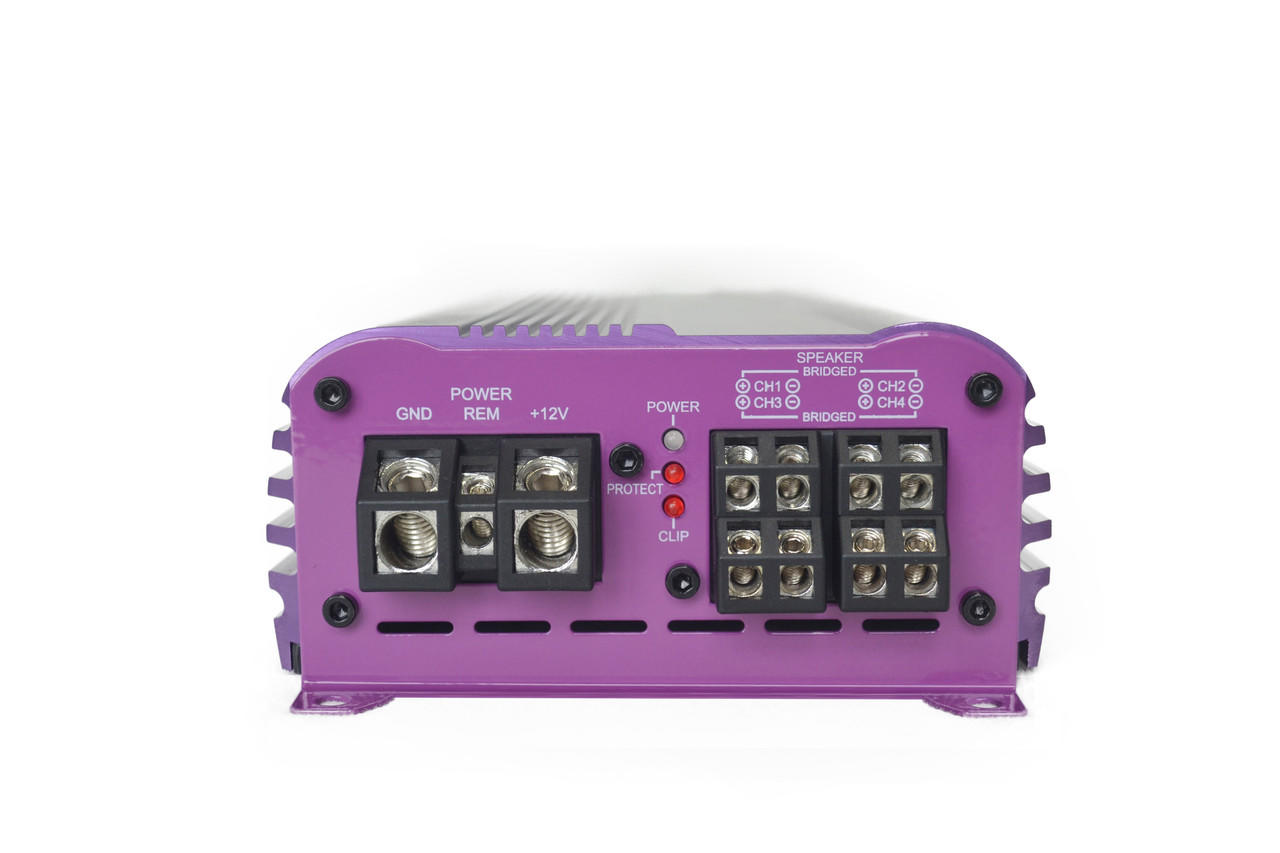

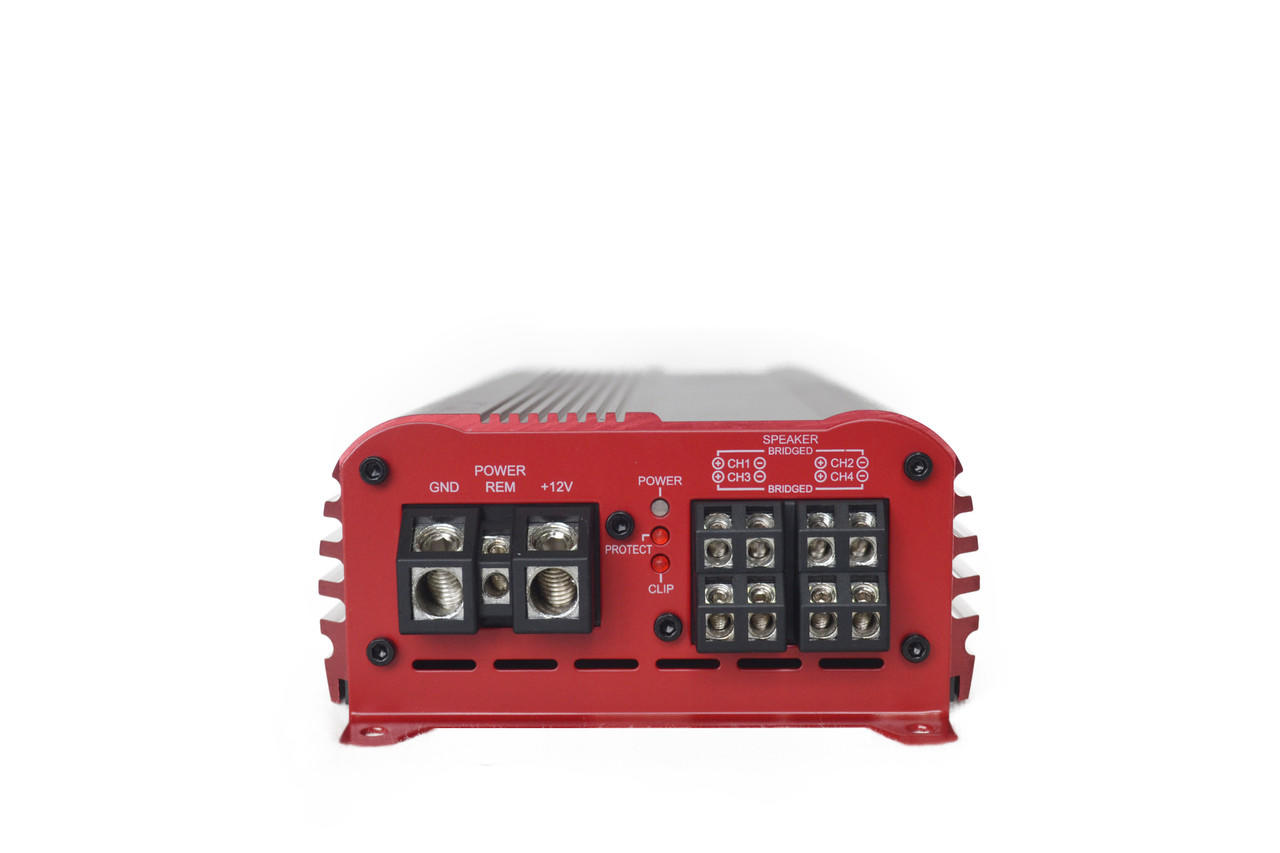

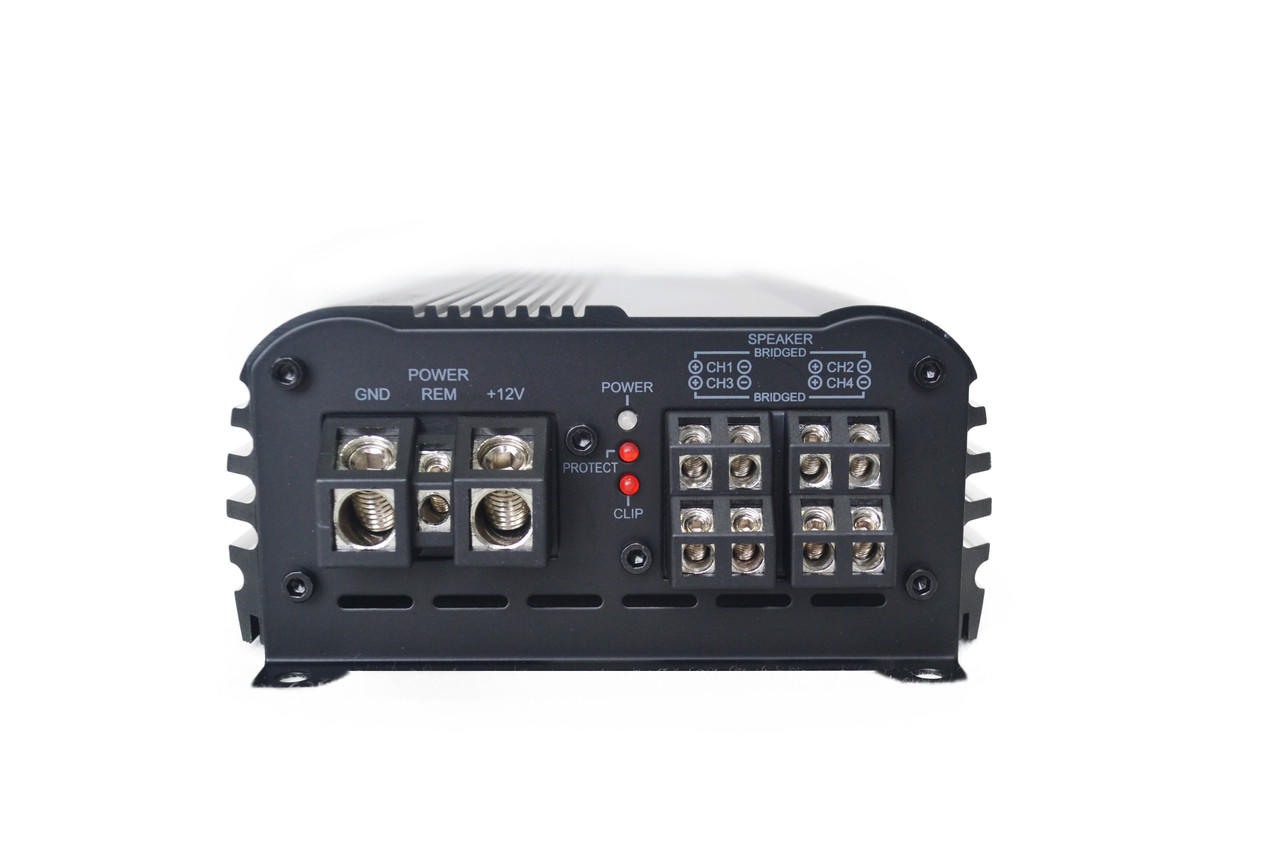

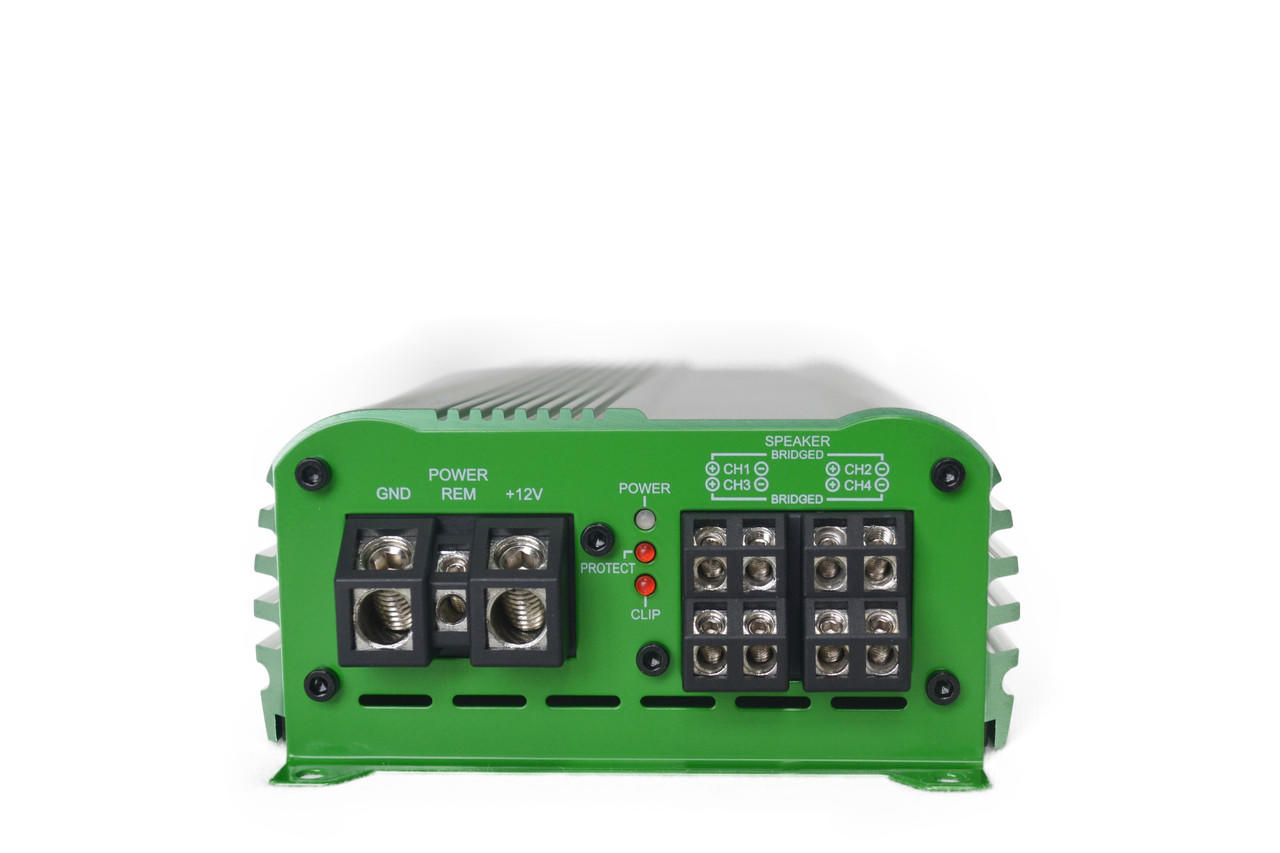

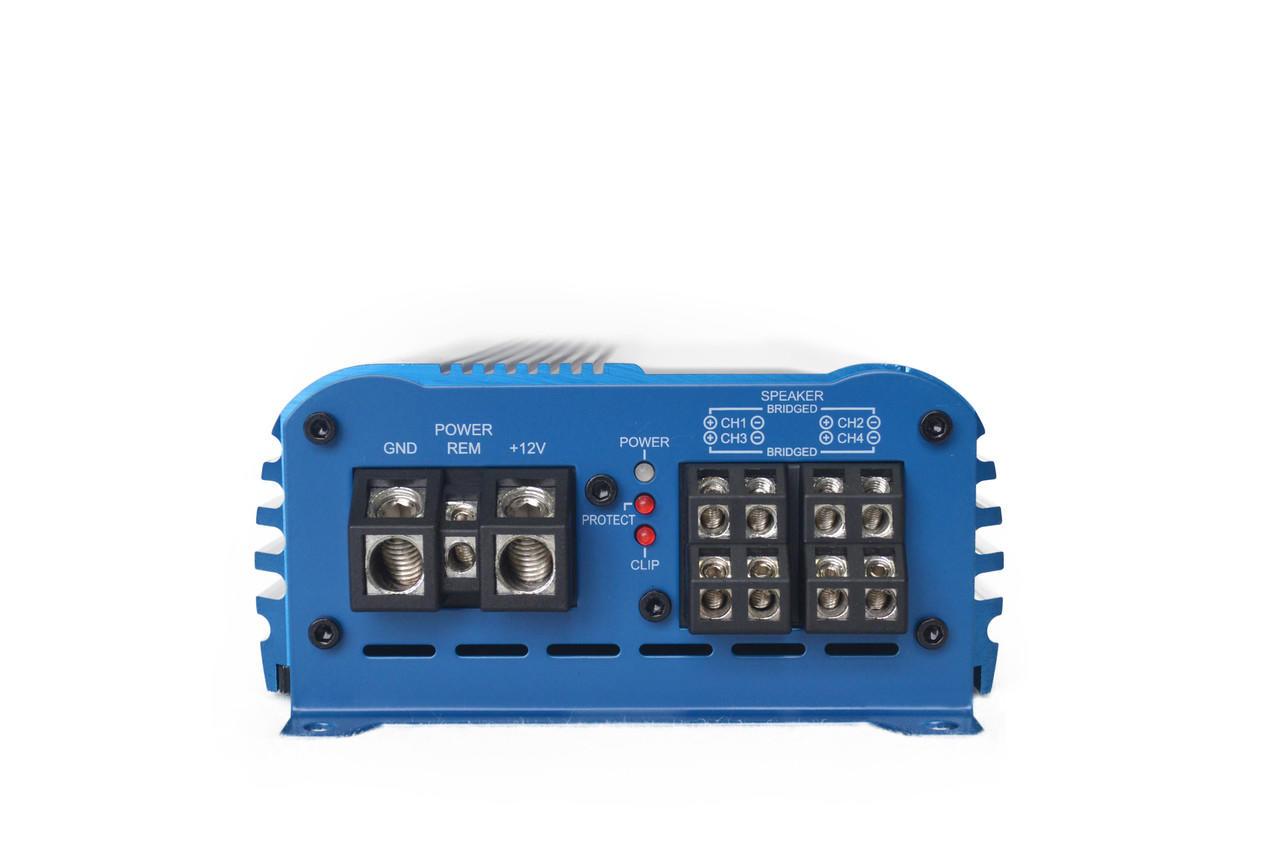

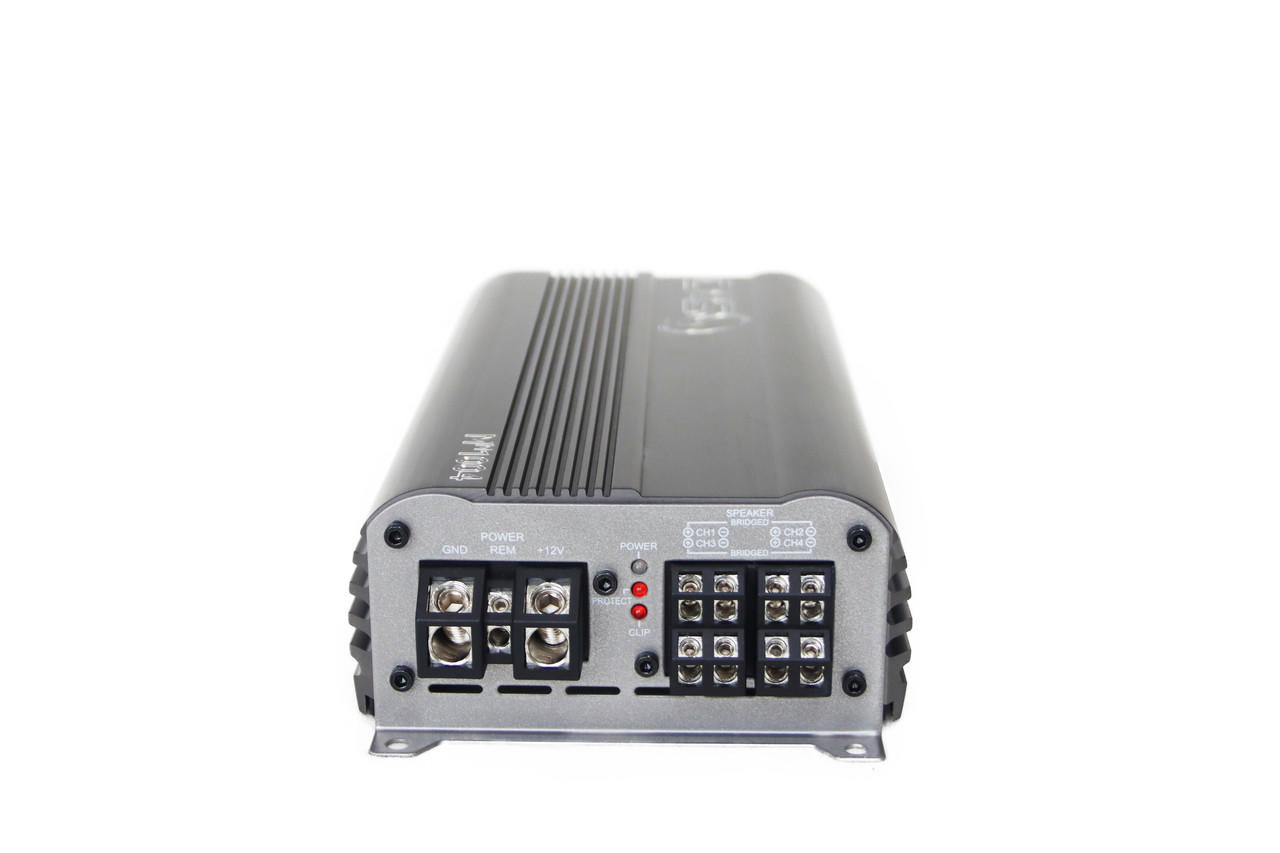

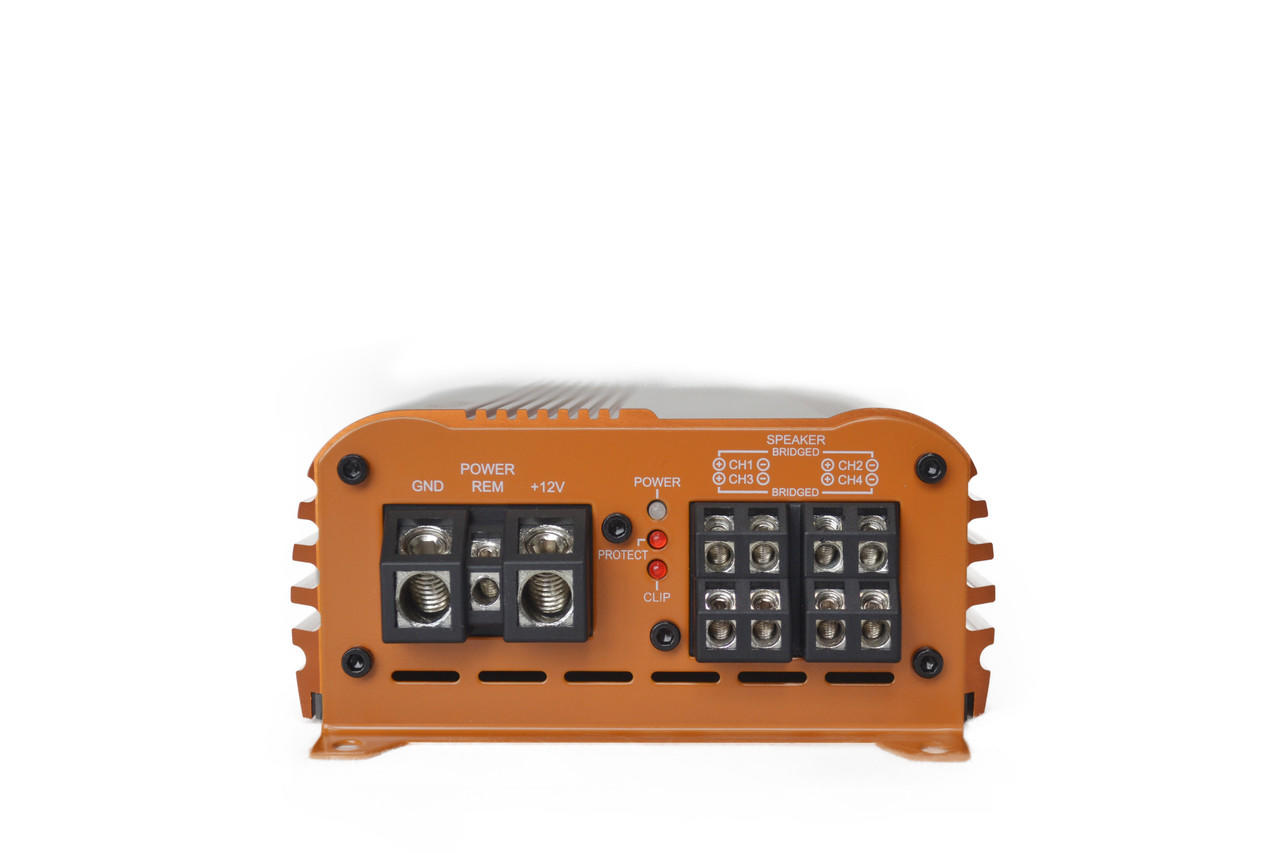

• 4 GA Power & Ground Terminal
• 14GA Speaker wire Terminal



Dimensions :

• 220mm L x 123.9mm W x 54.3mm H
• 8.66 x 4.87 x 2.13 inches
