Mono Class D Amplifier

On Board Power & Protection Indicators

Strappable Design

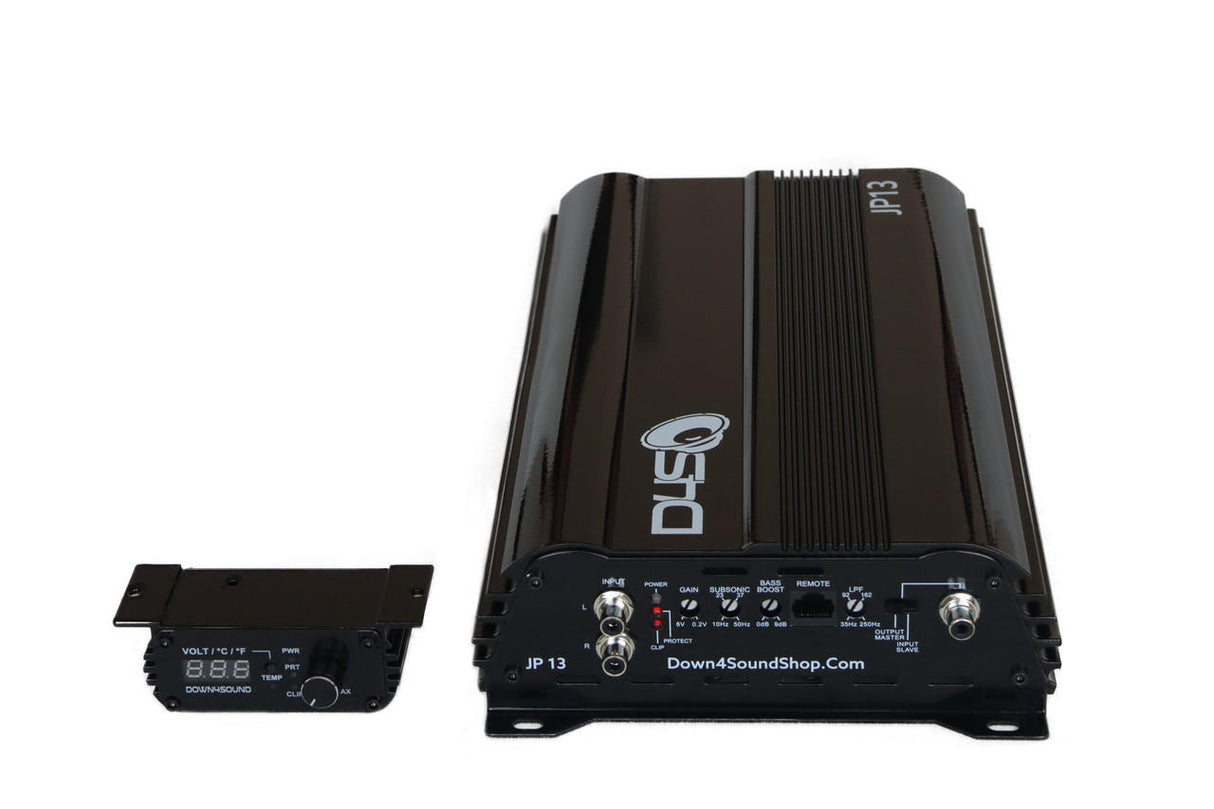

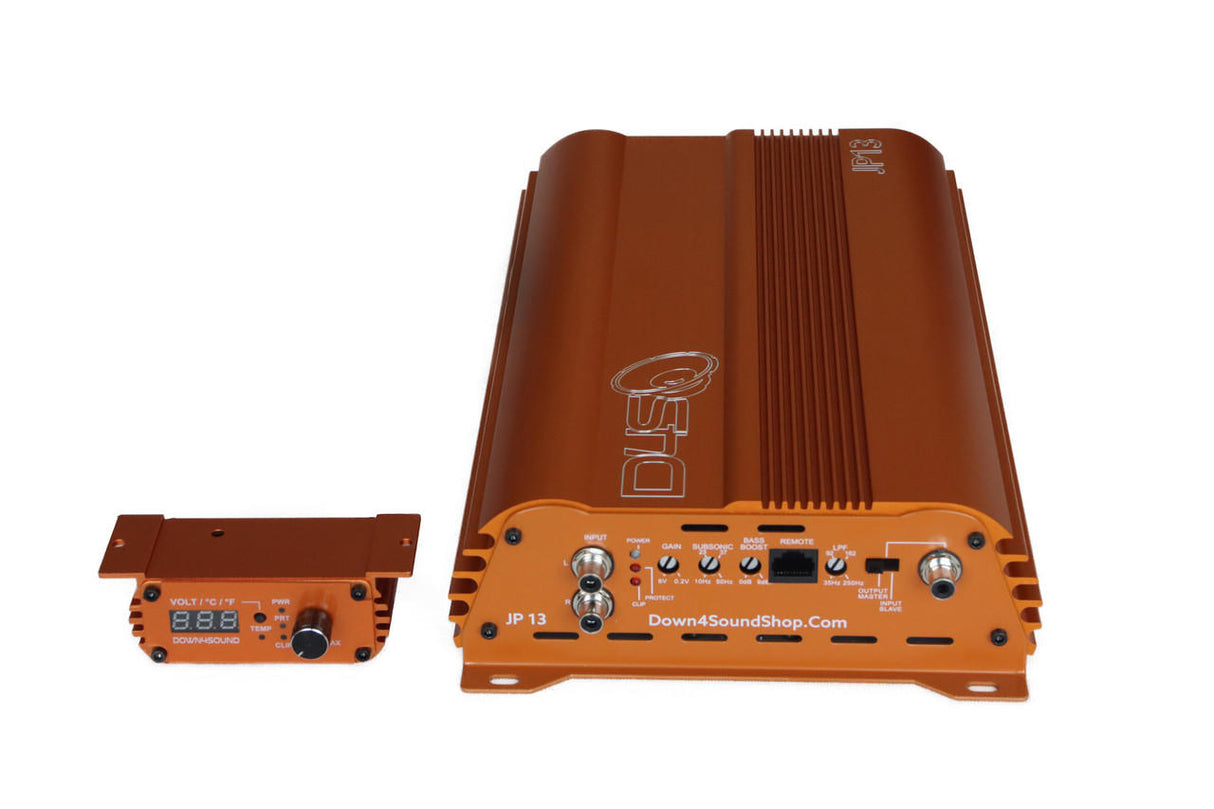

Variable Low-Pass, Bass Boost & Subsonic Filters

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

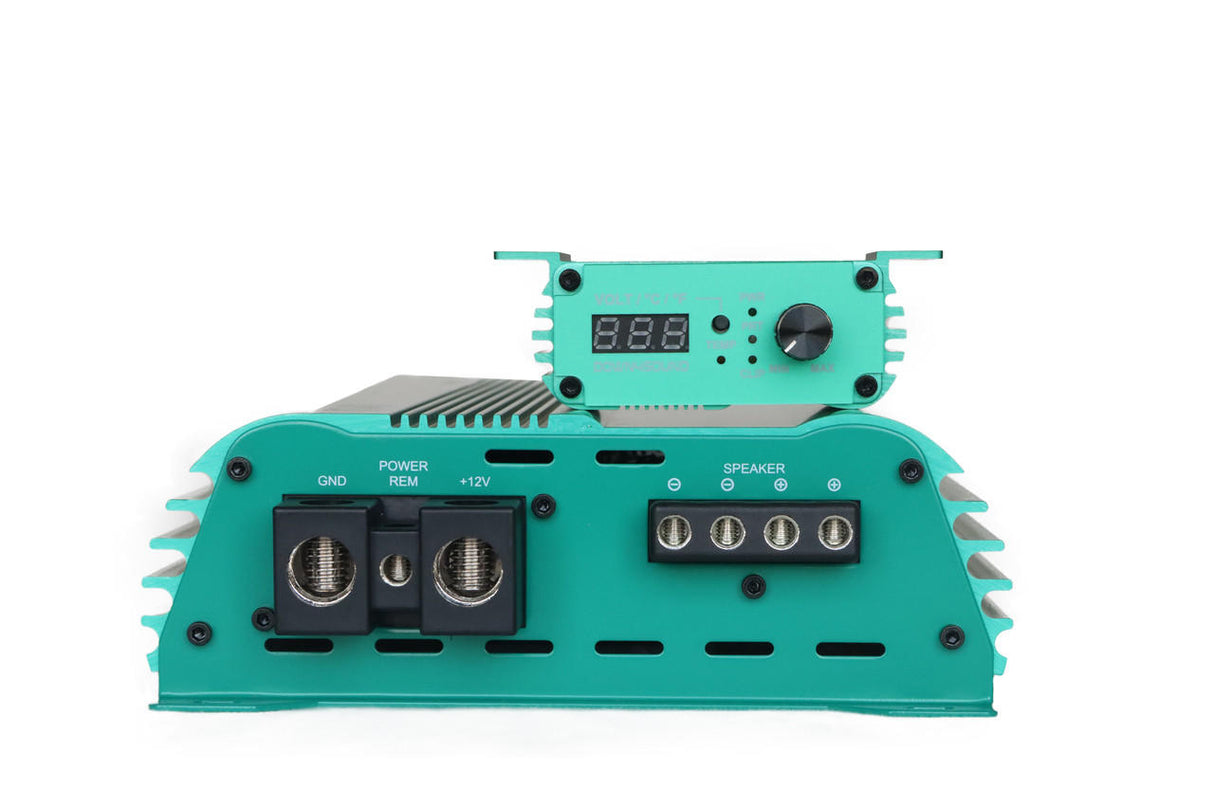

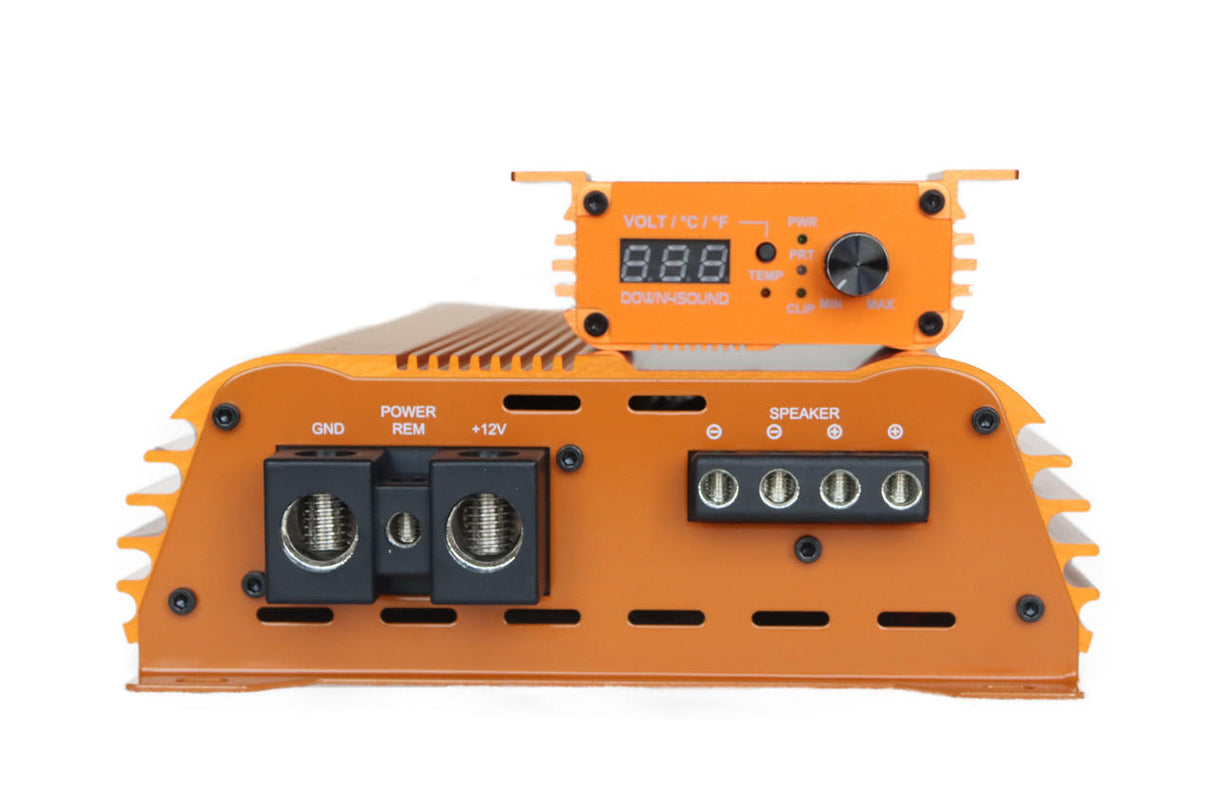

1/0 AWG Power & Ground Inputs

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)

Power

Max Rated Output (Strapped to a second JP13): 2,600 Watts

1 Ohm RMS: 1,300W

2 Ohm RMS: 1,000W

4 Ohm RMS: 700W

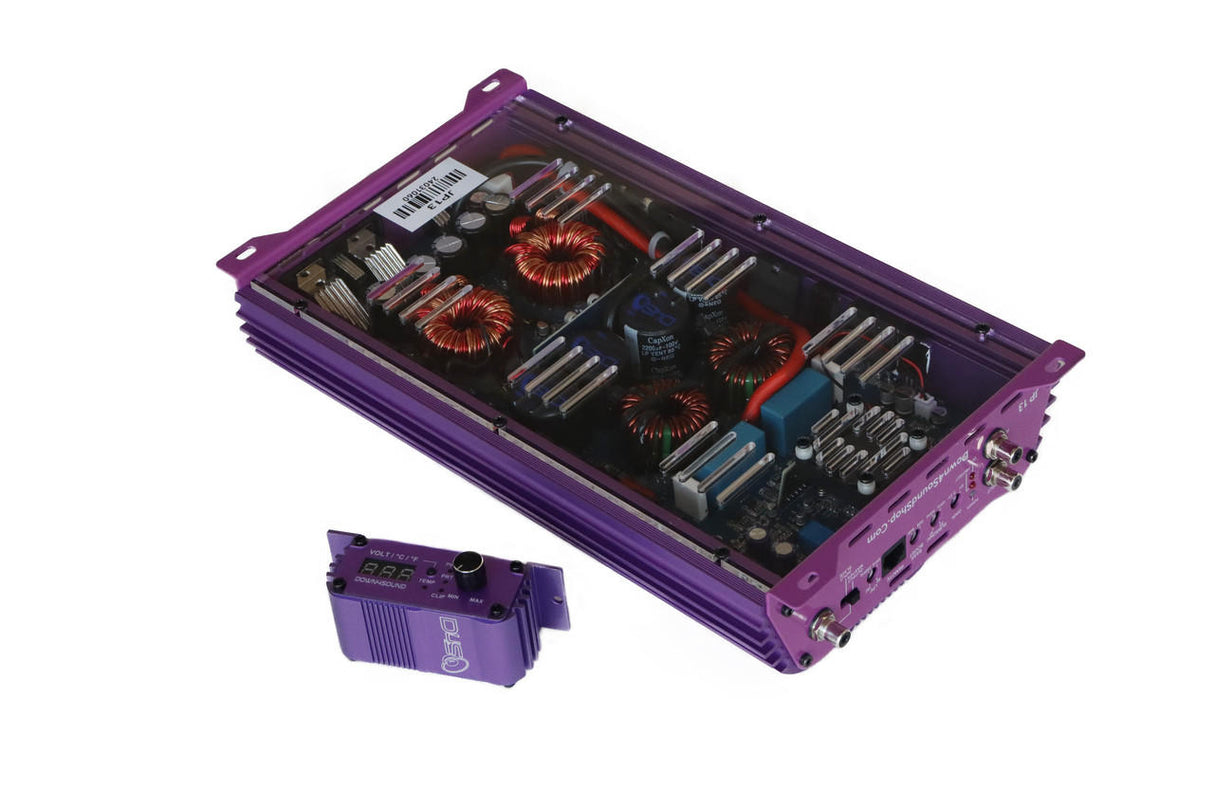

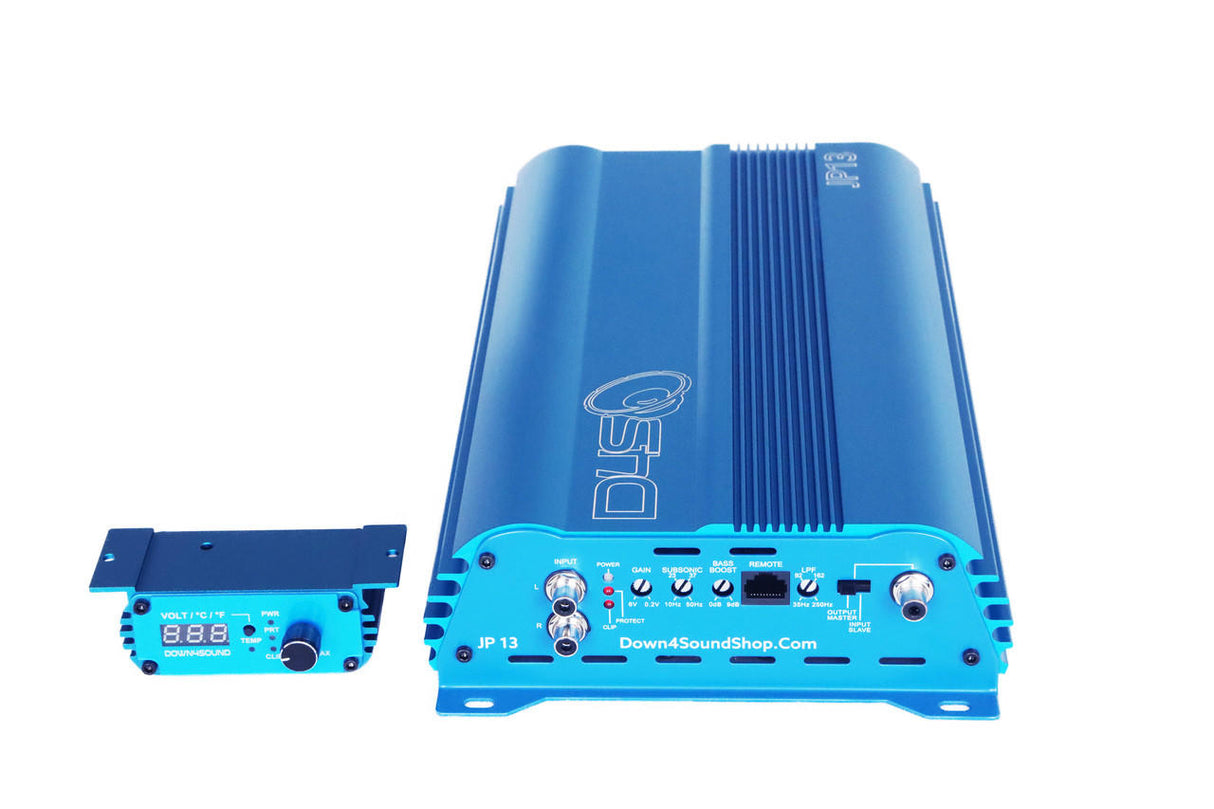

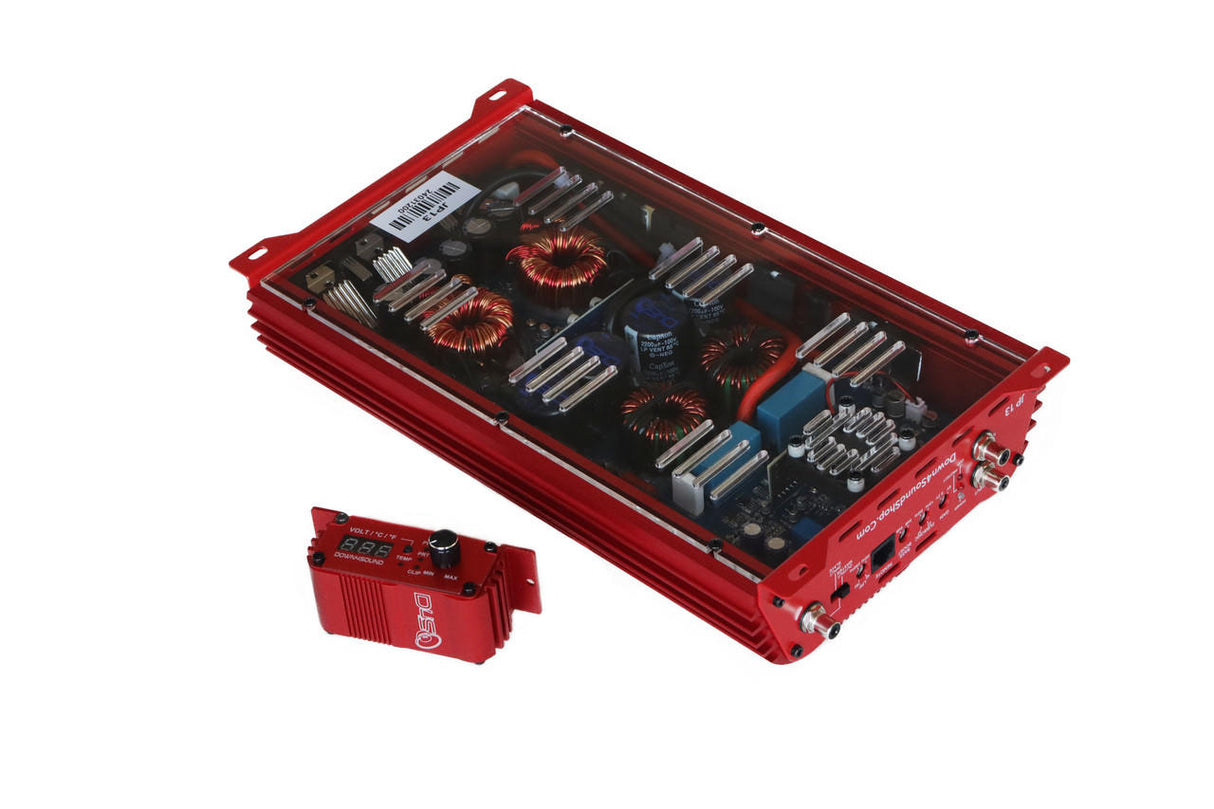

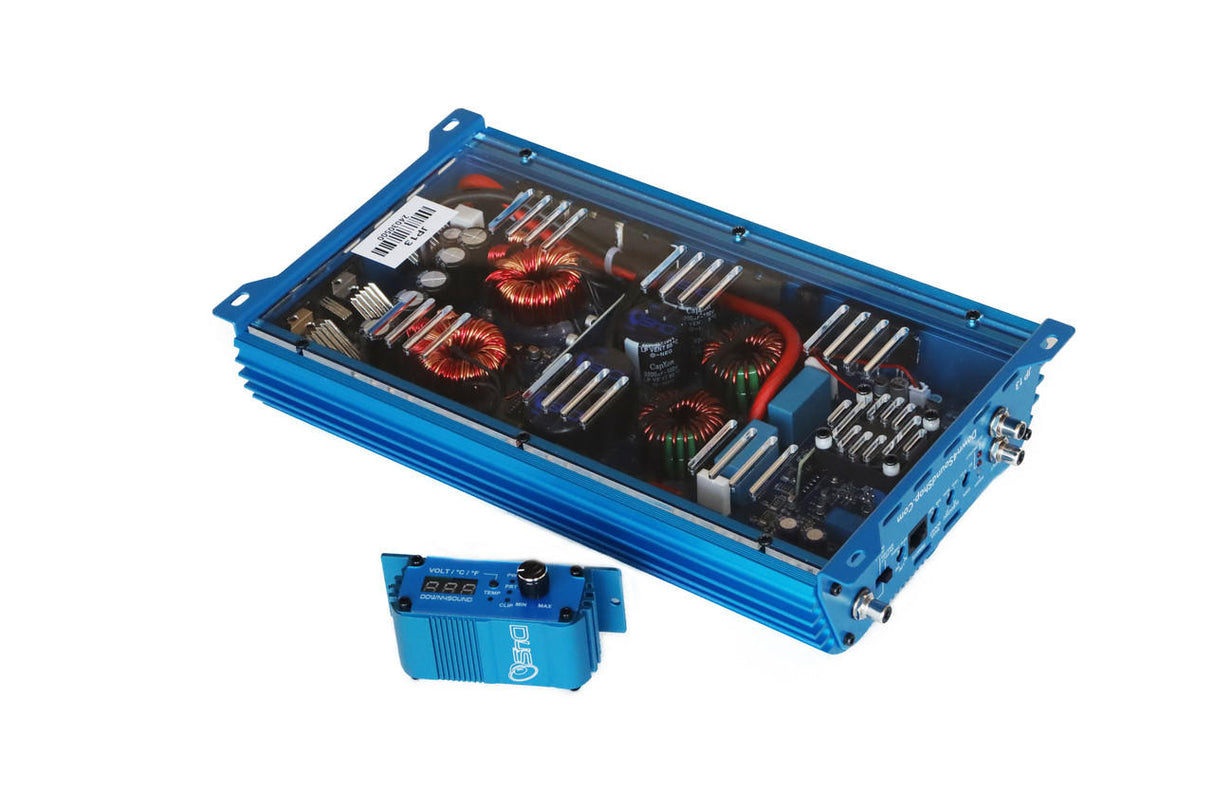

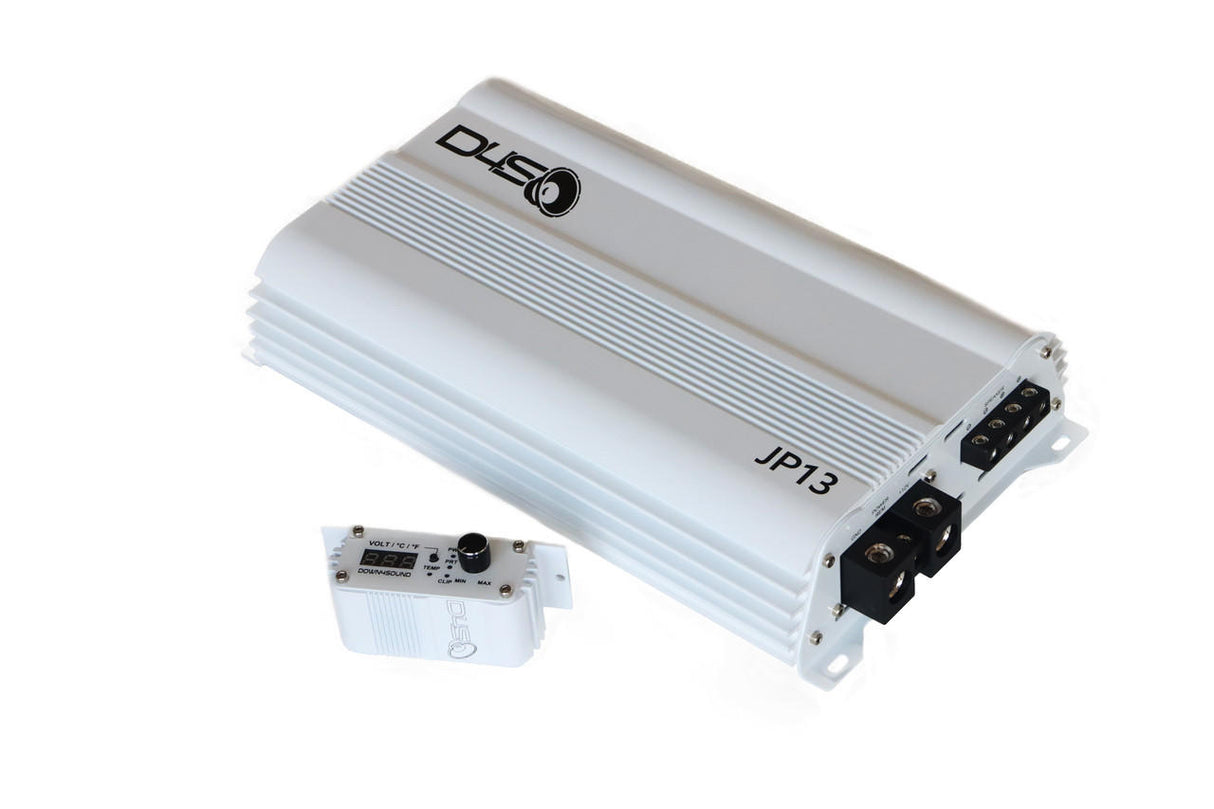

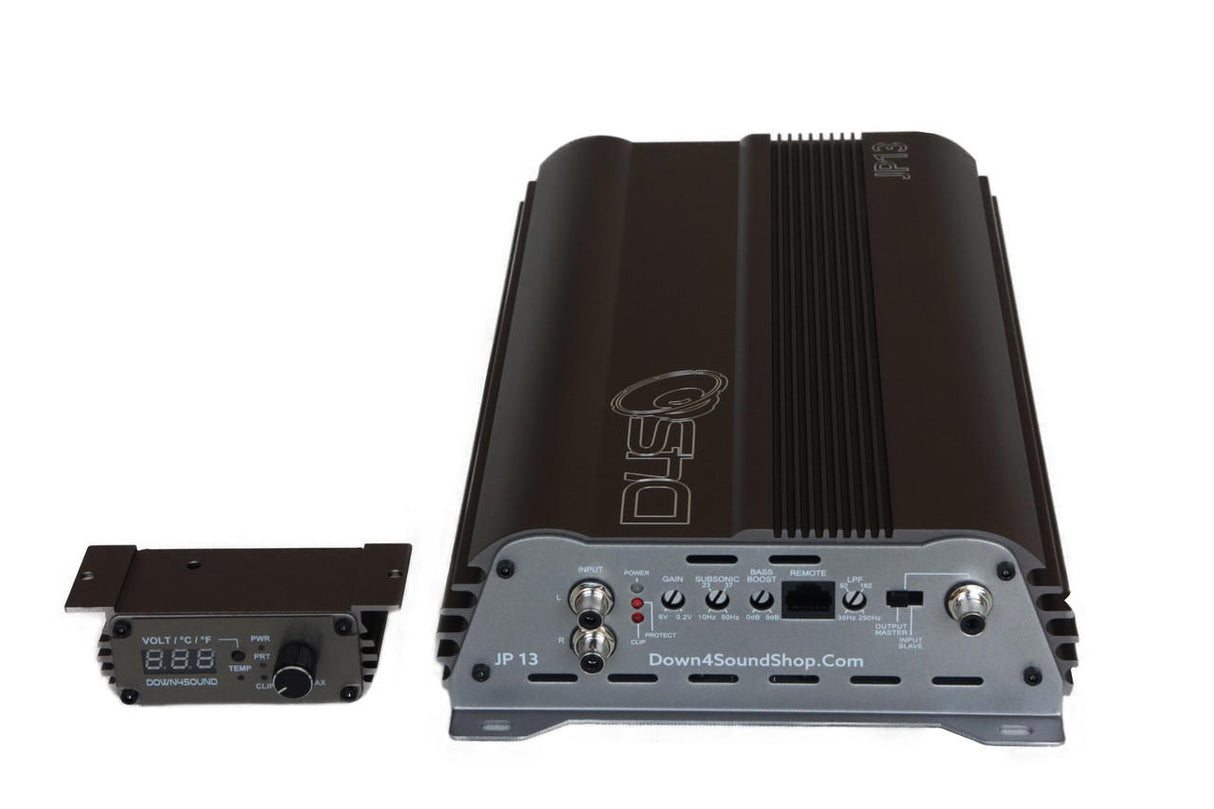

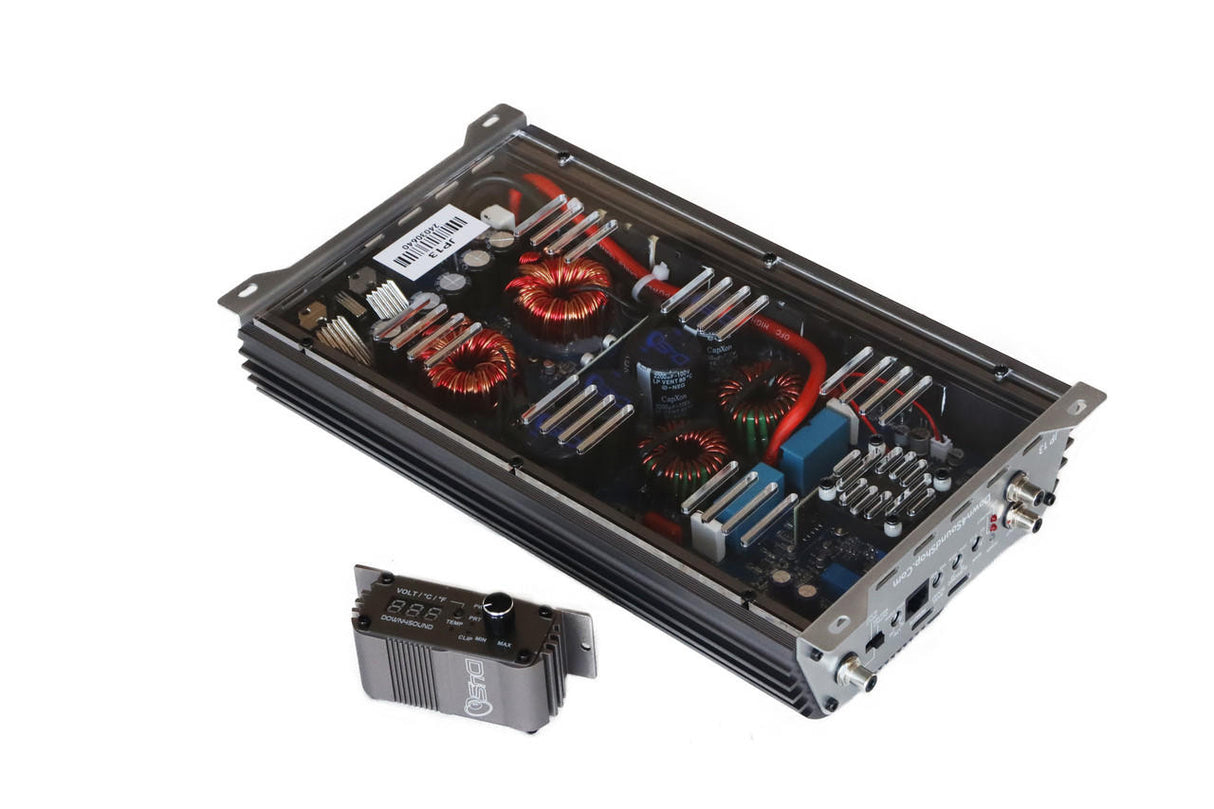

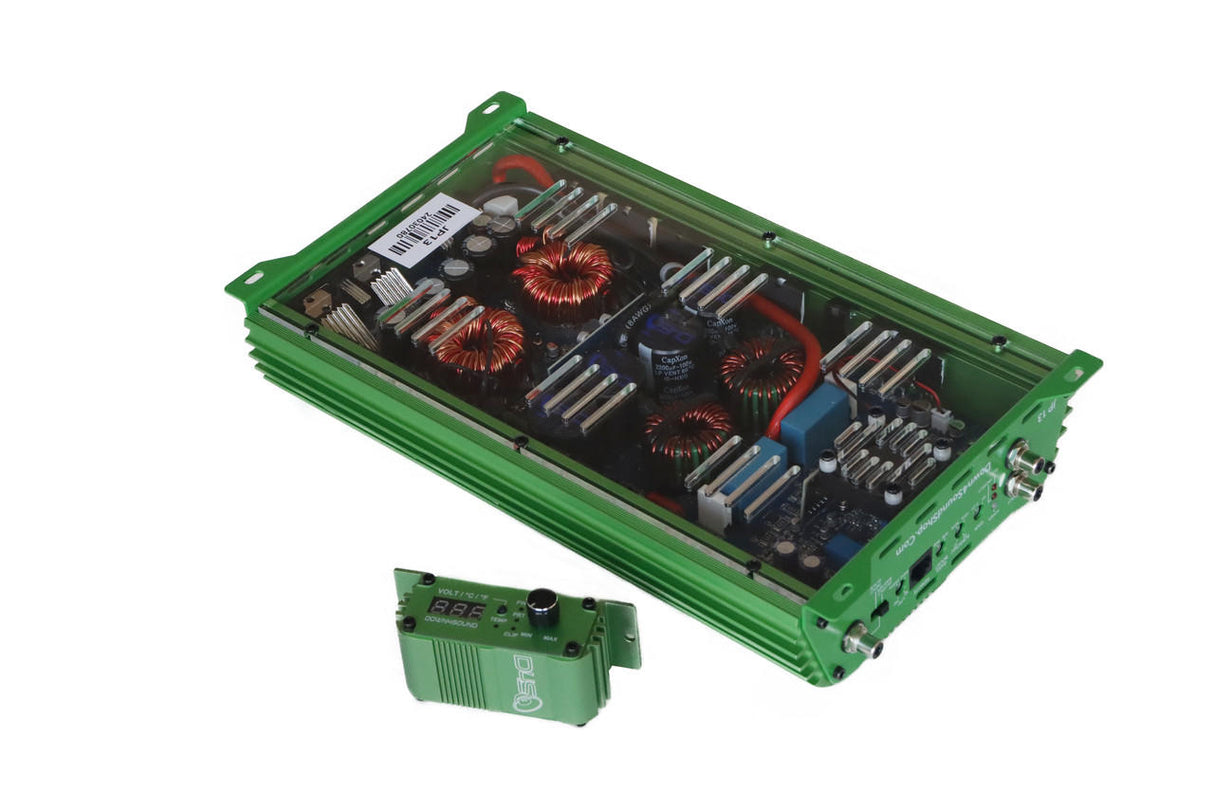

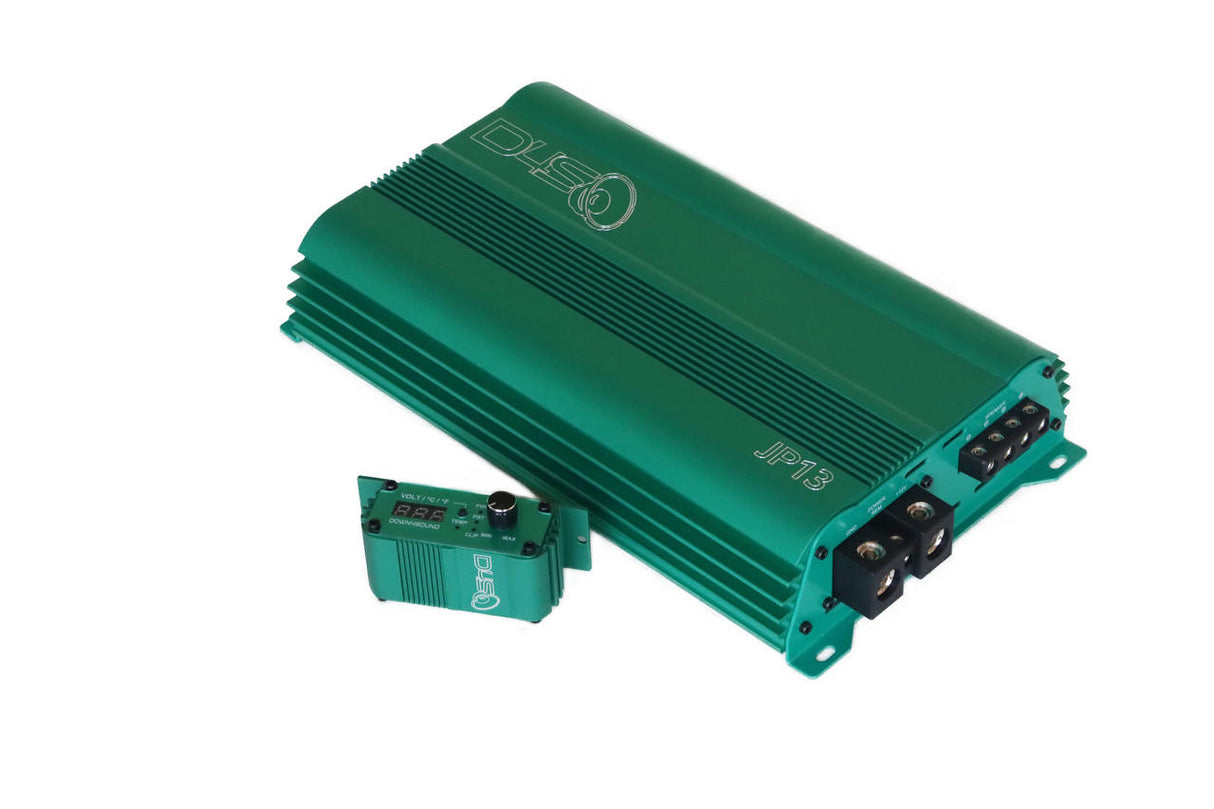

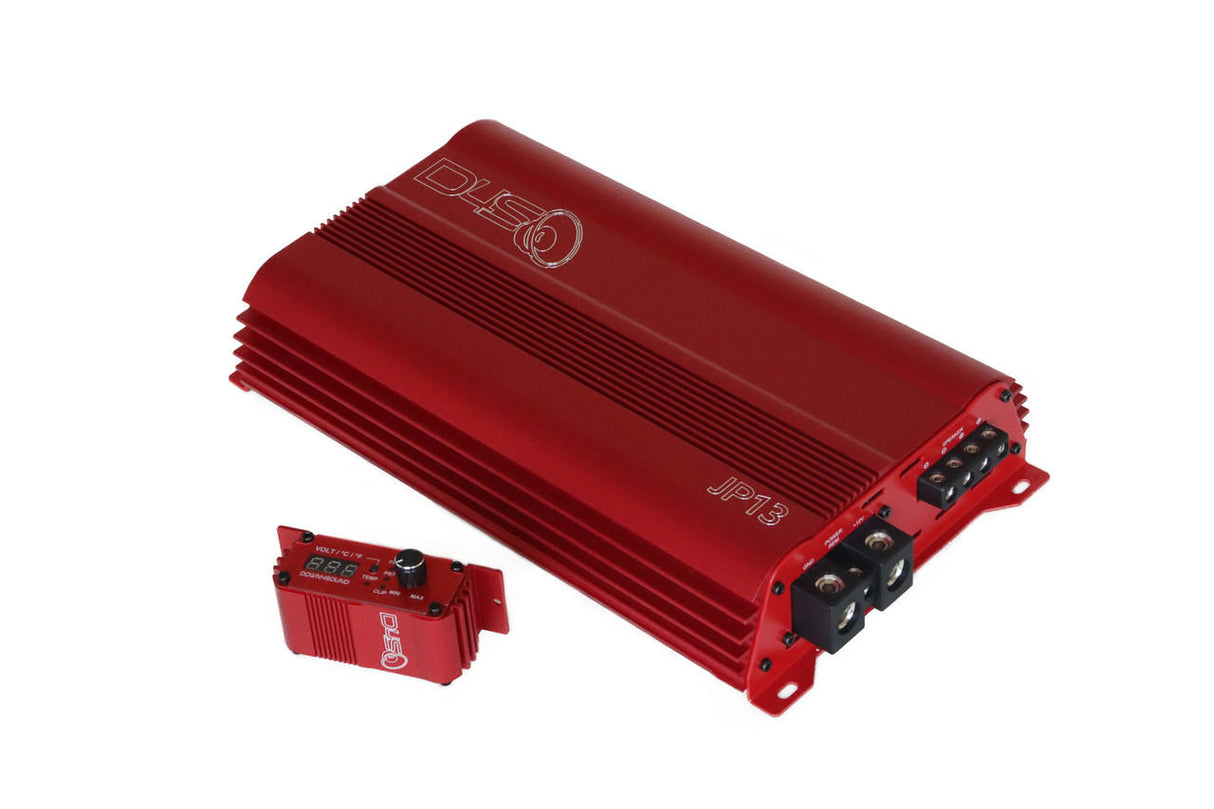

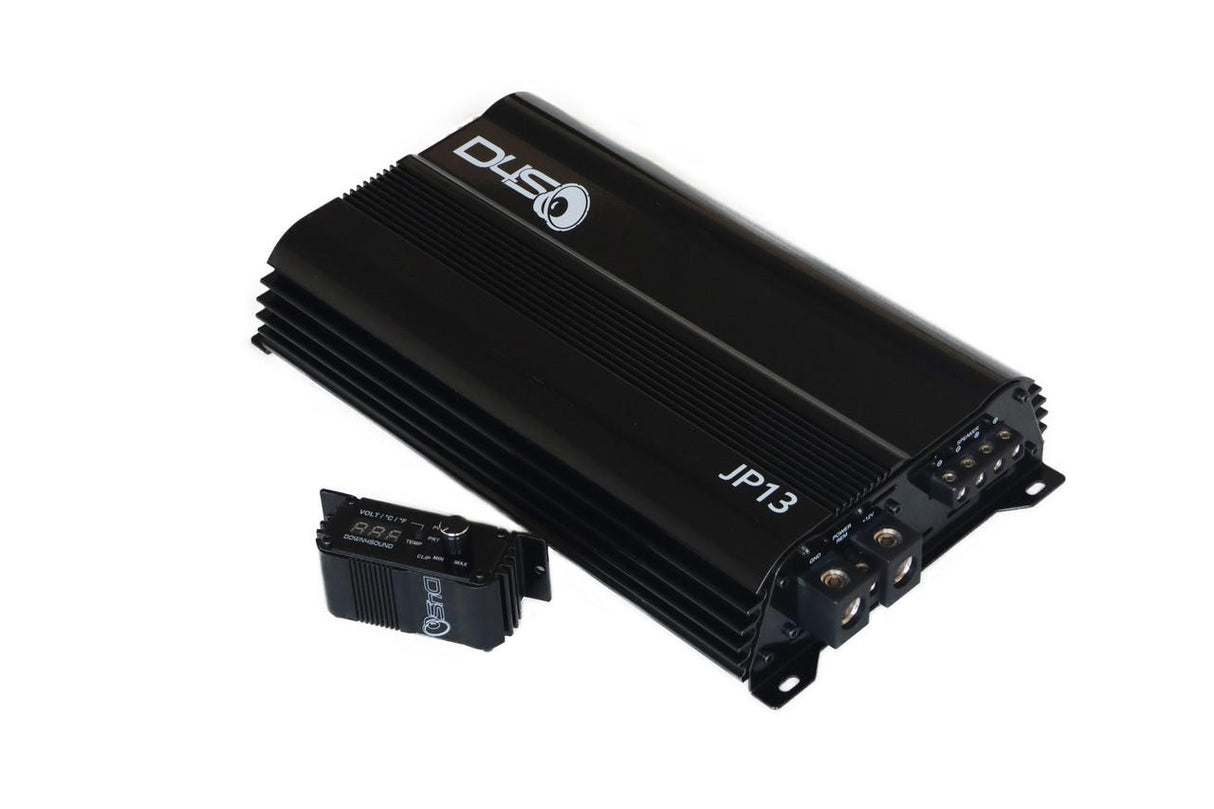

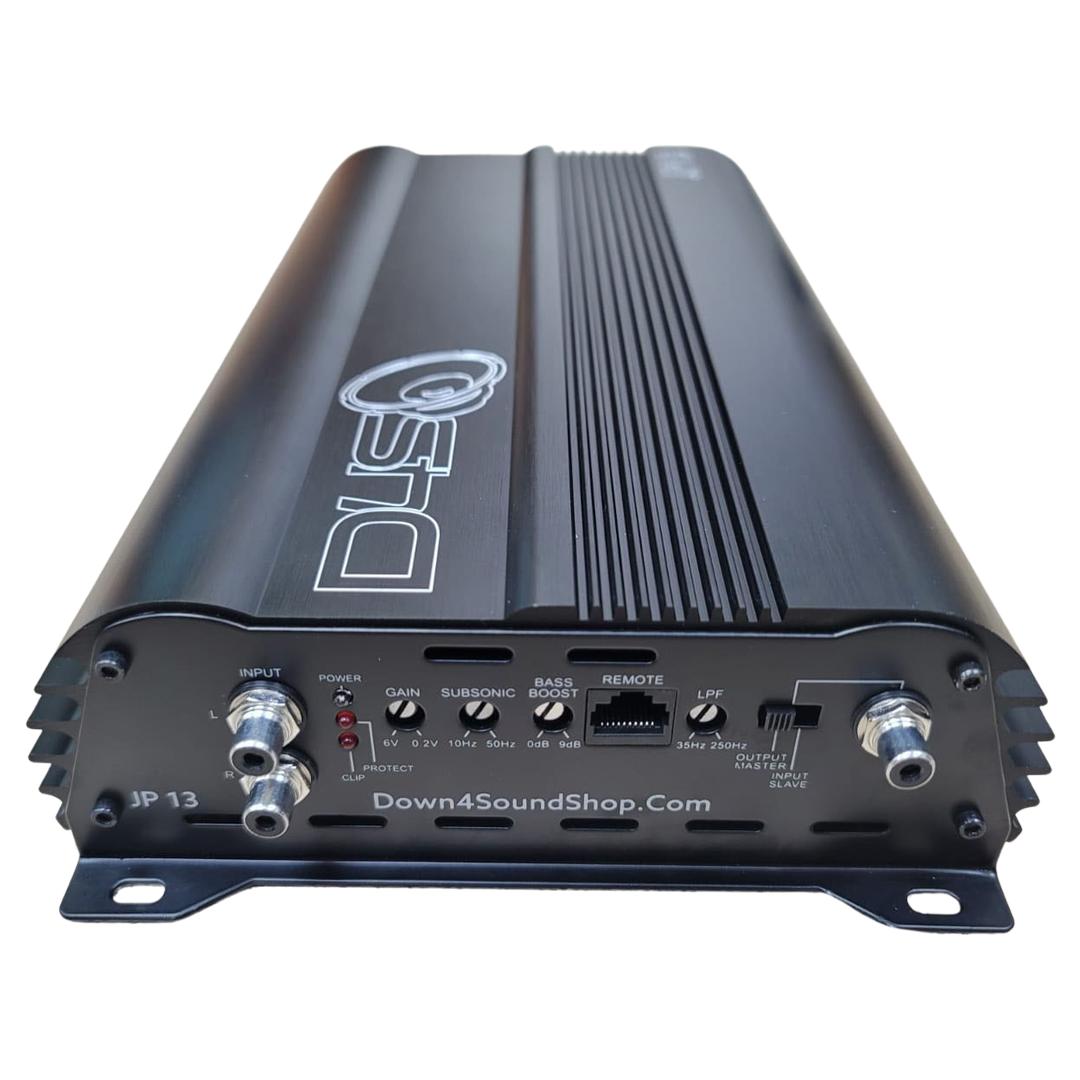

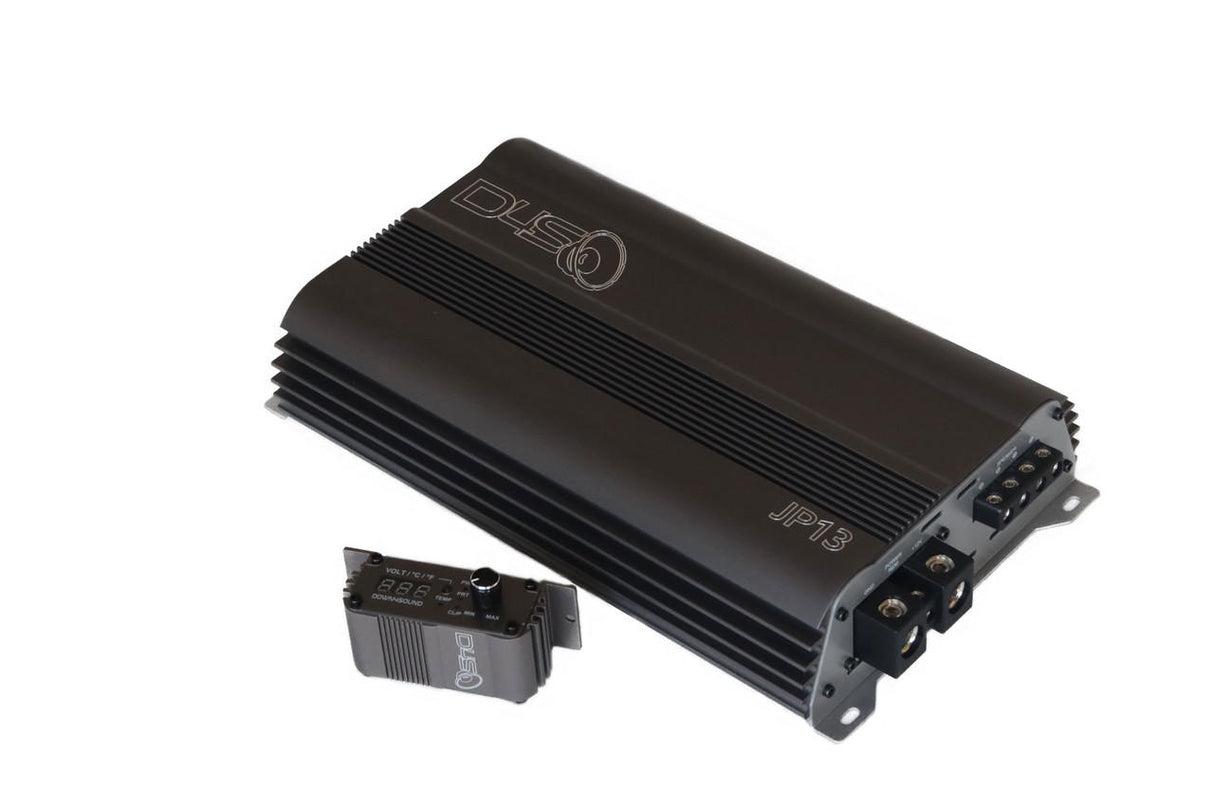

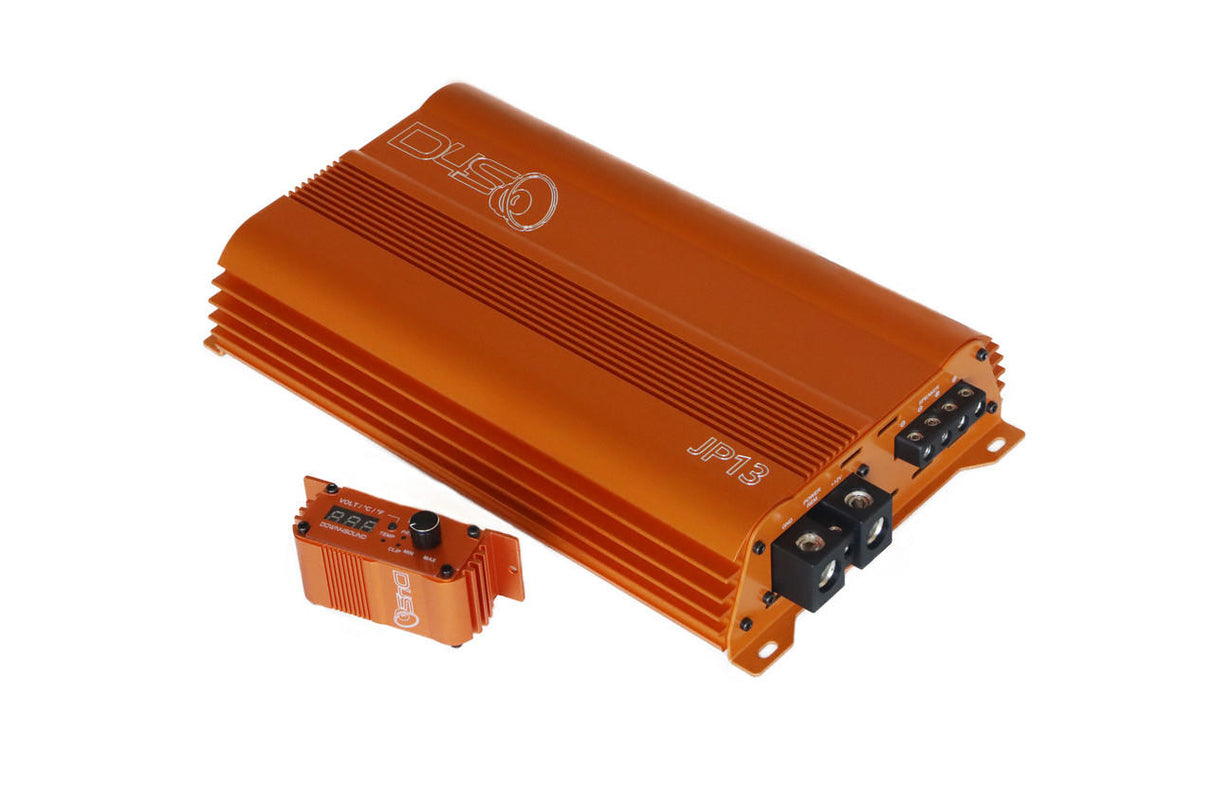

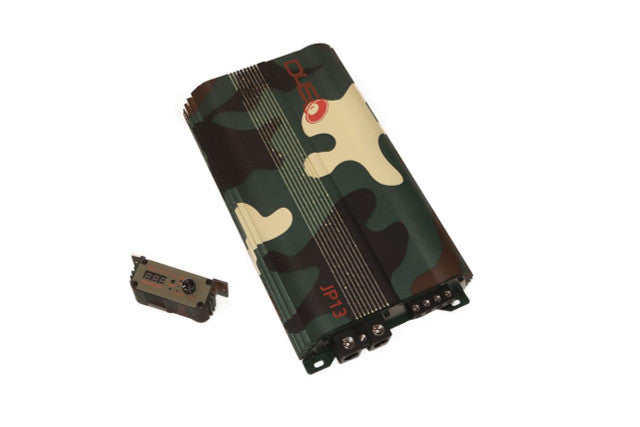

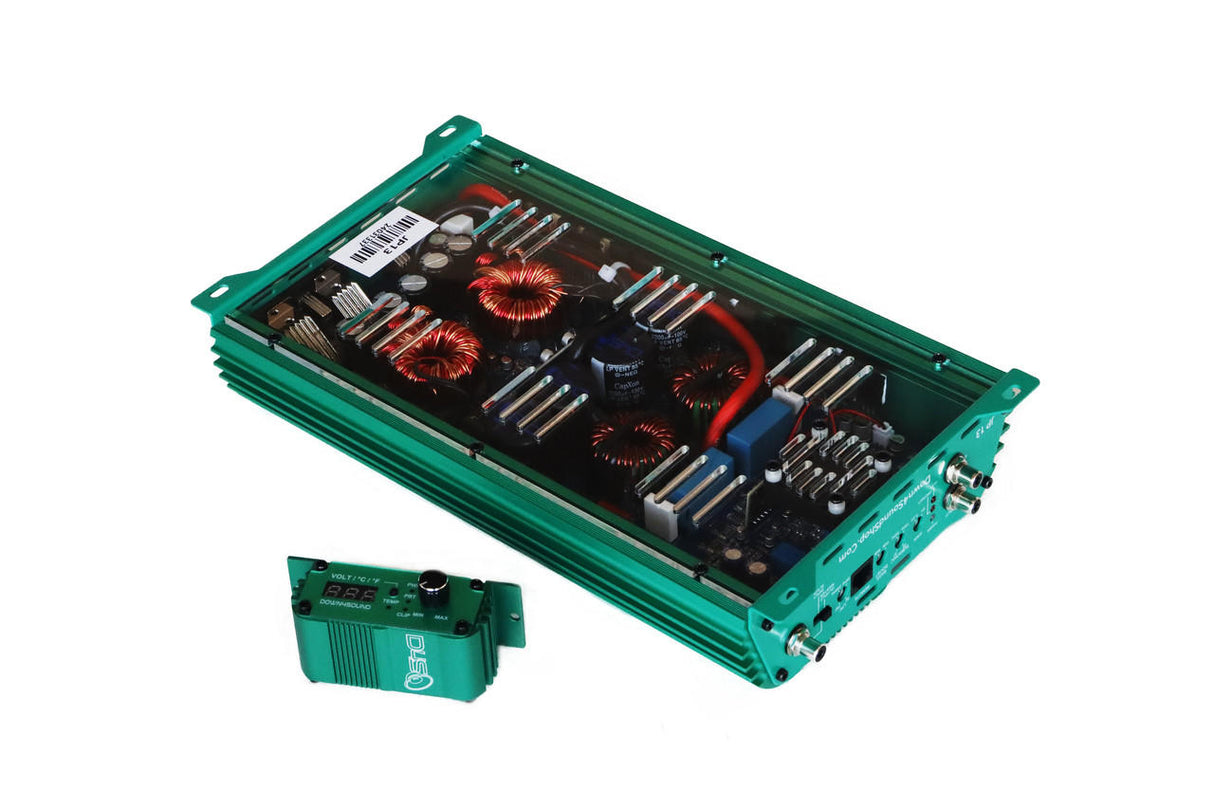

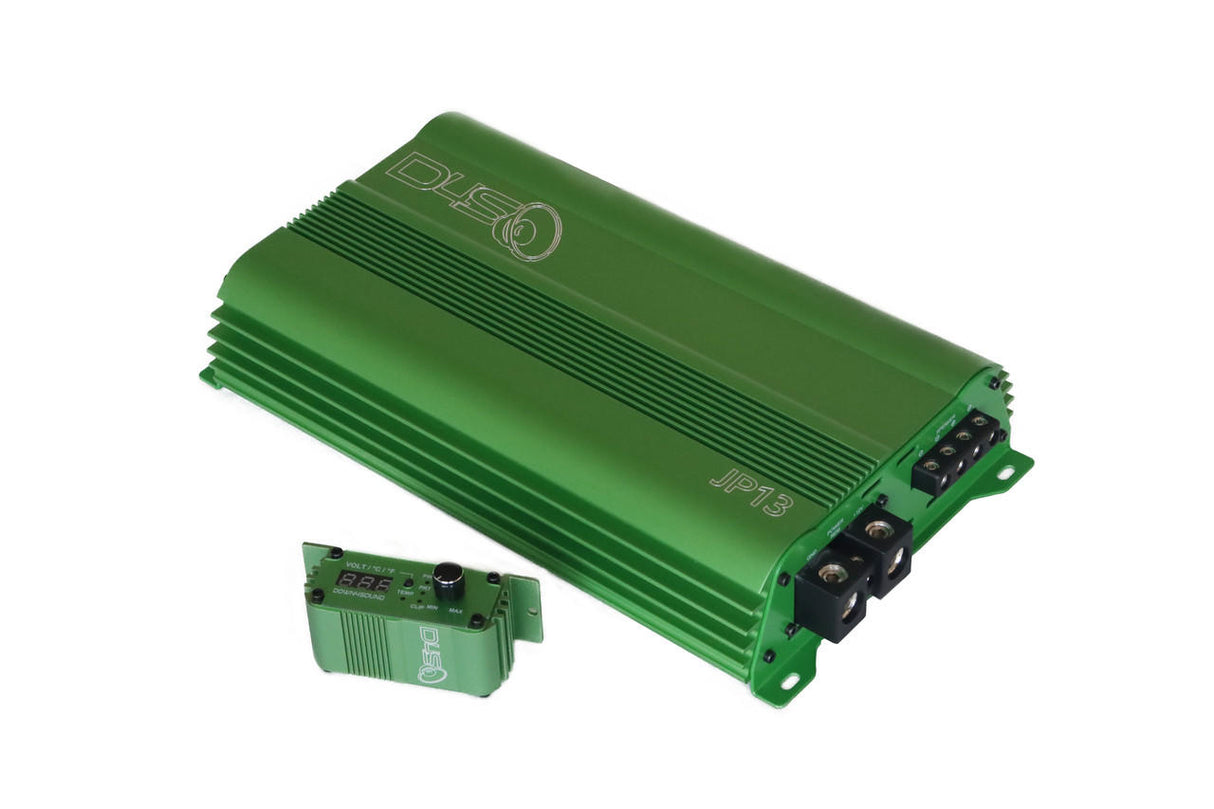

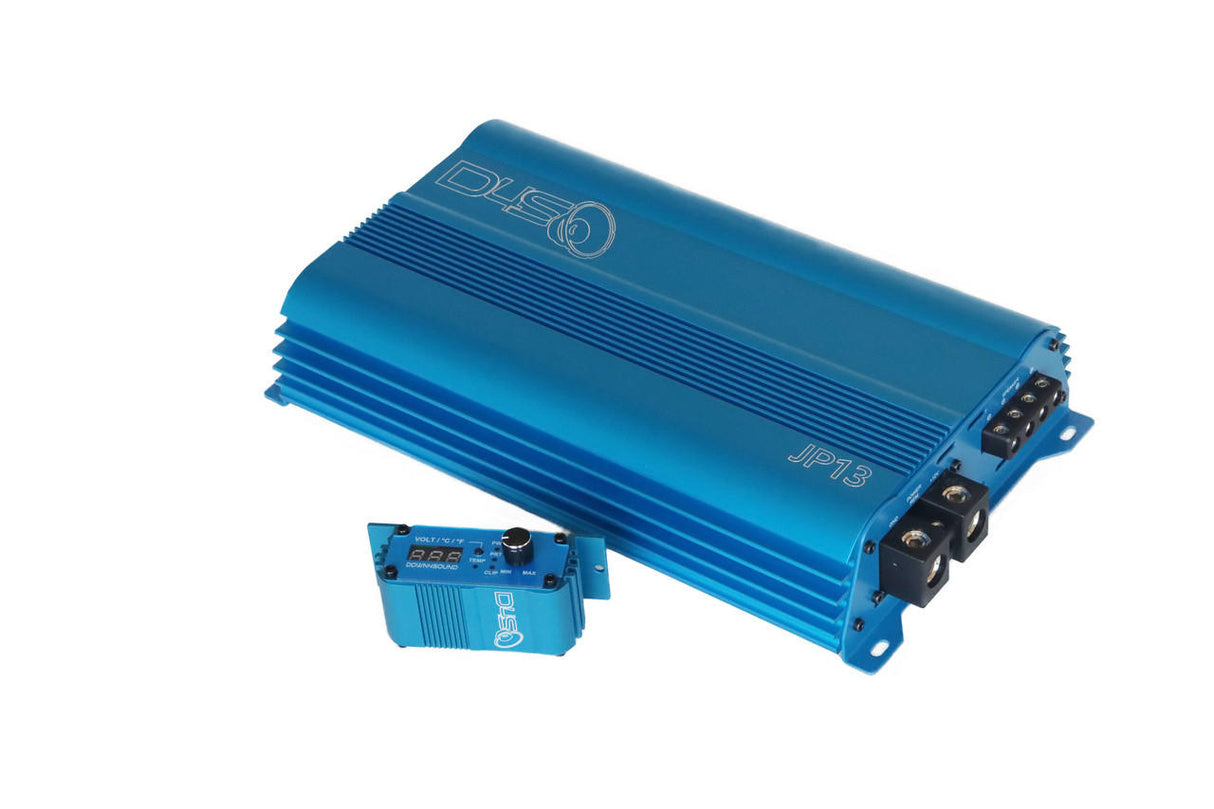

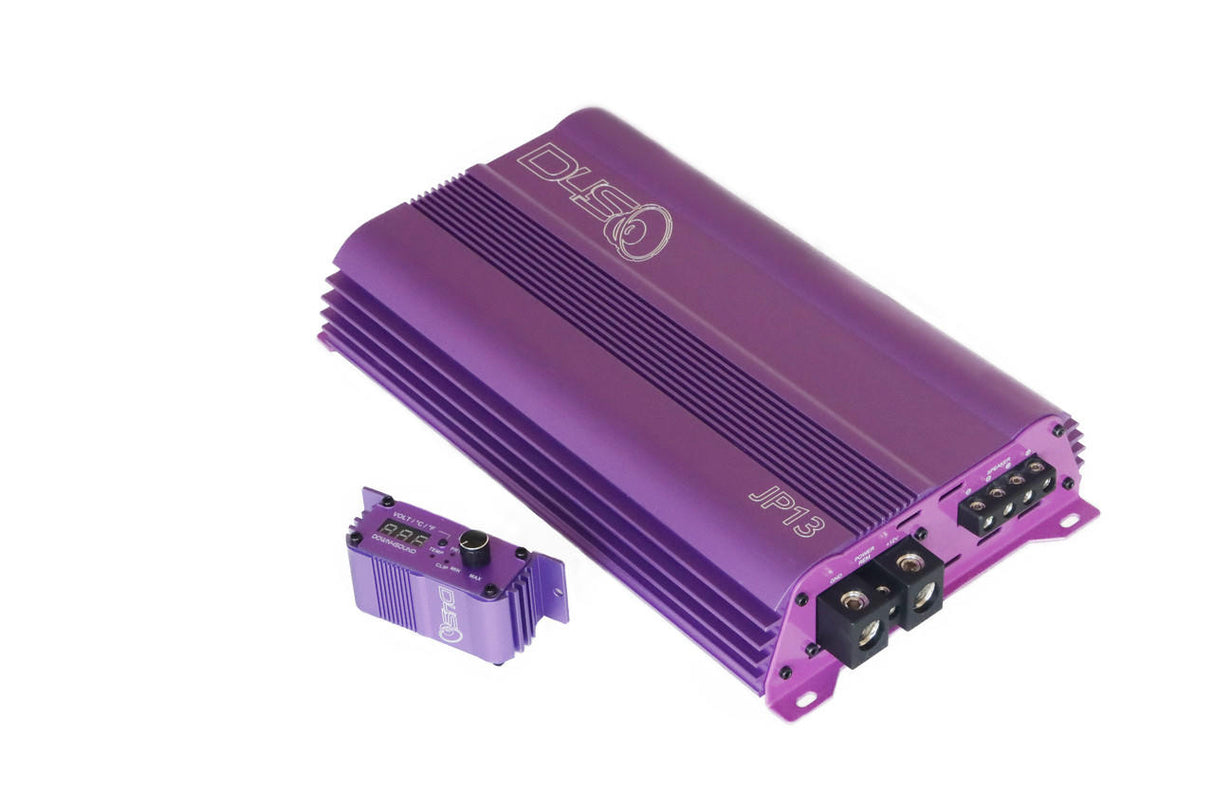

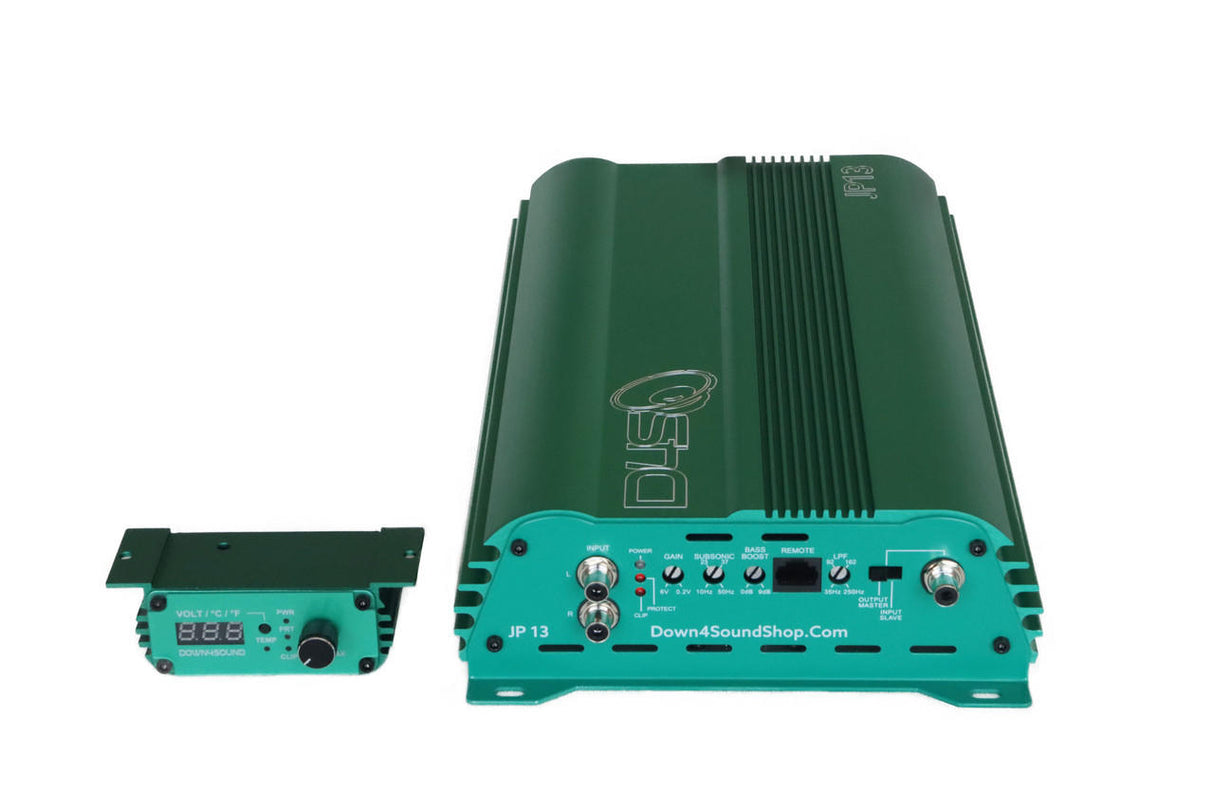

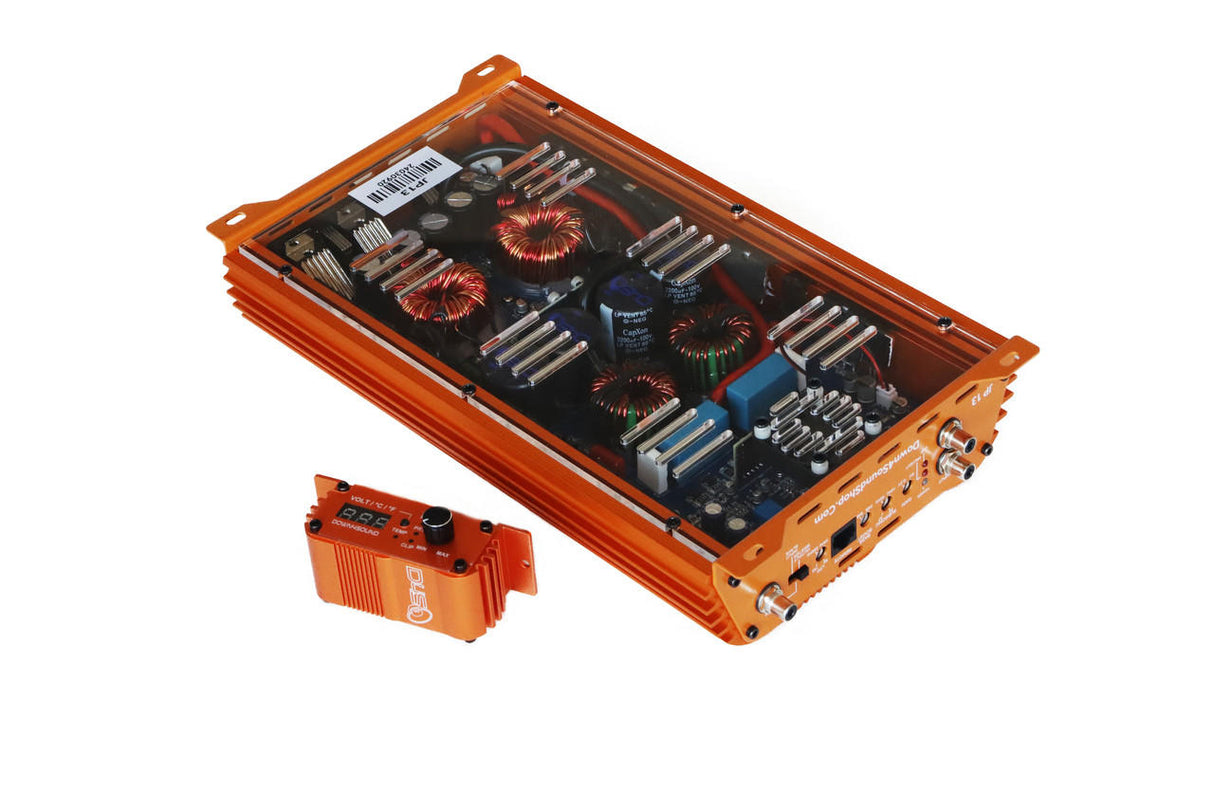

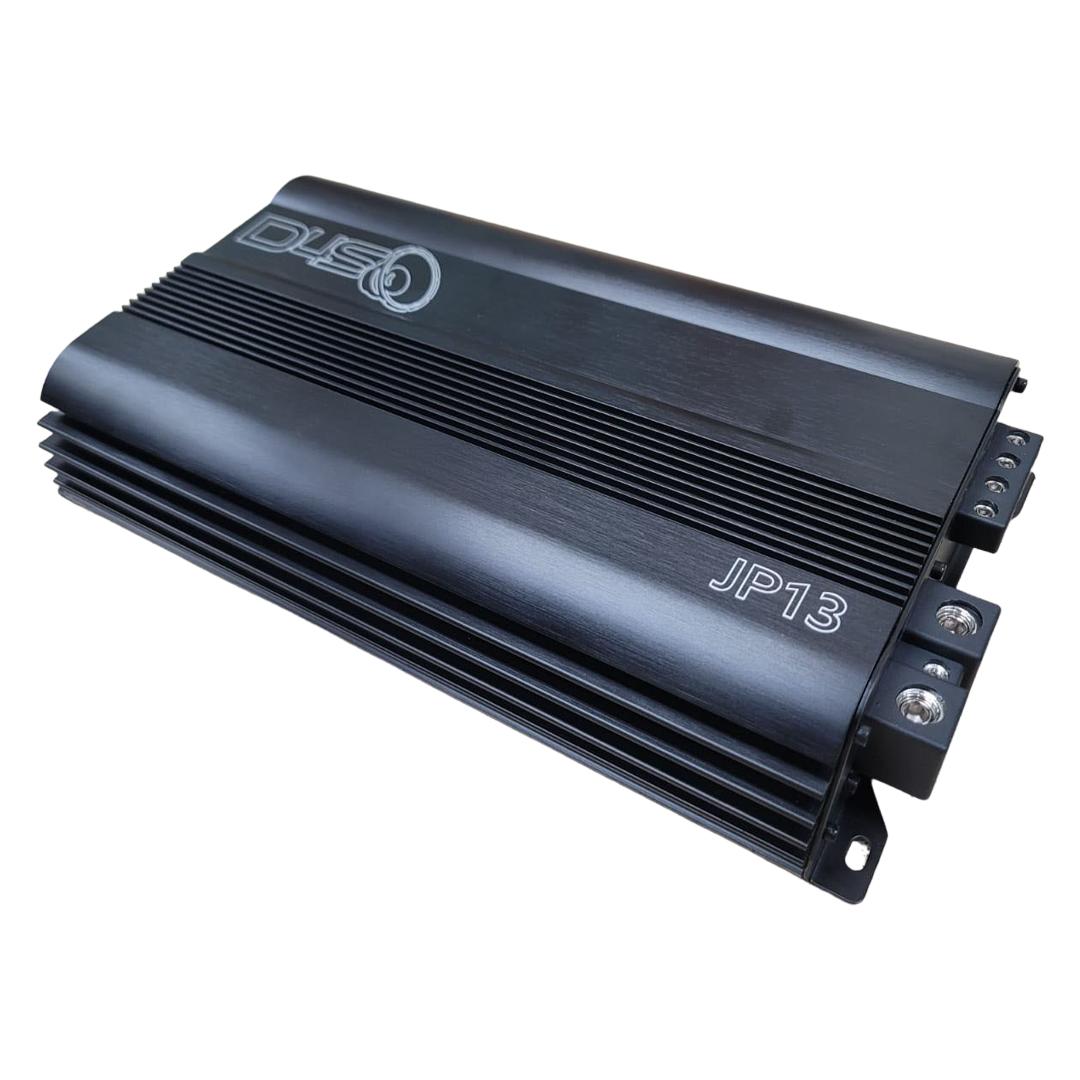

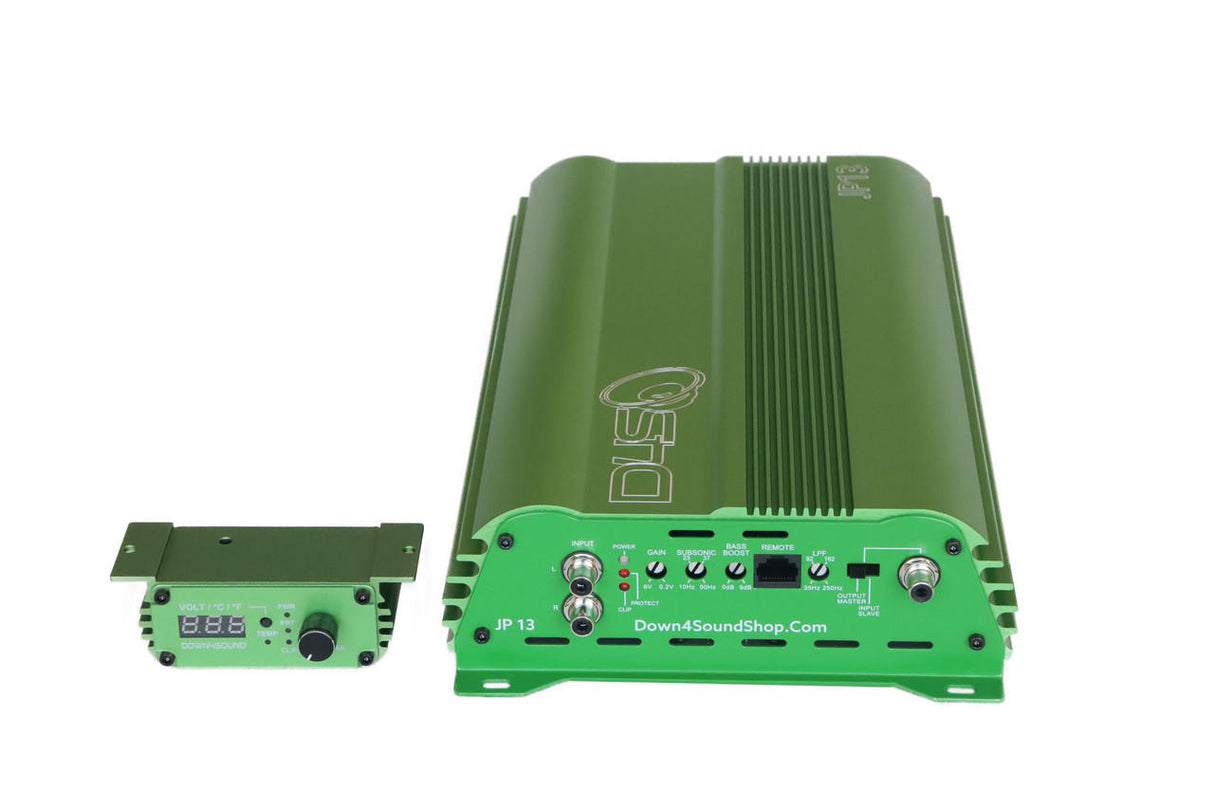

Available in any of six colors, the Down4Sound JP1.2Z3 is a powerful Class D bass amplifier. Equipped with a 1/0 AWG power and ground input and extensive acoustic controls, this compact amp delivers up to 1,300 watts at 1 ohm. Strap another JP13 together for a single 2,600-watt powerhouse!

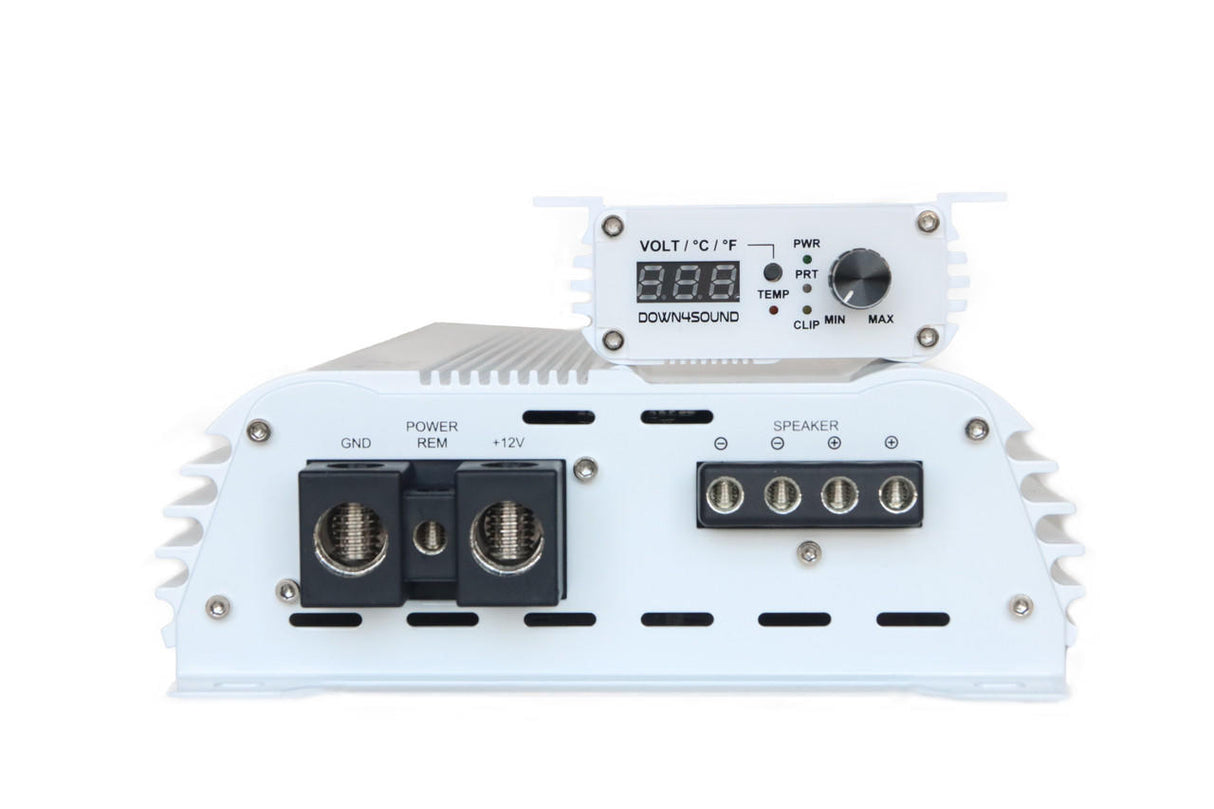

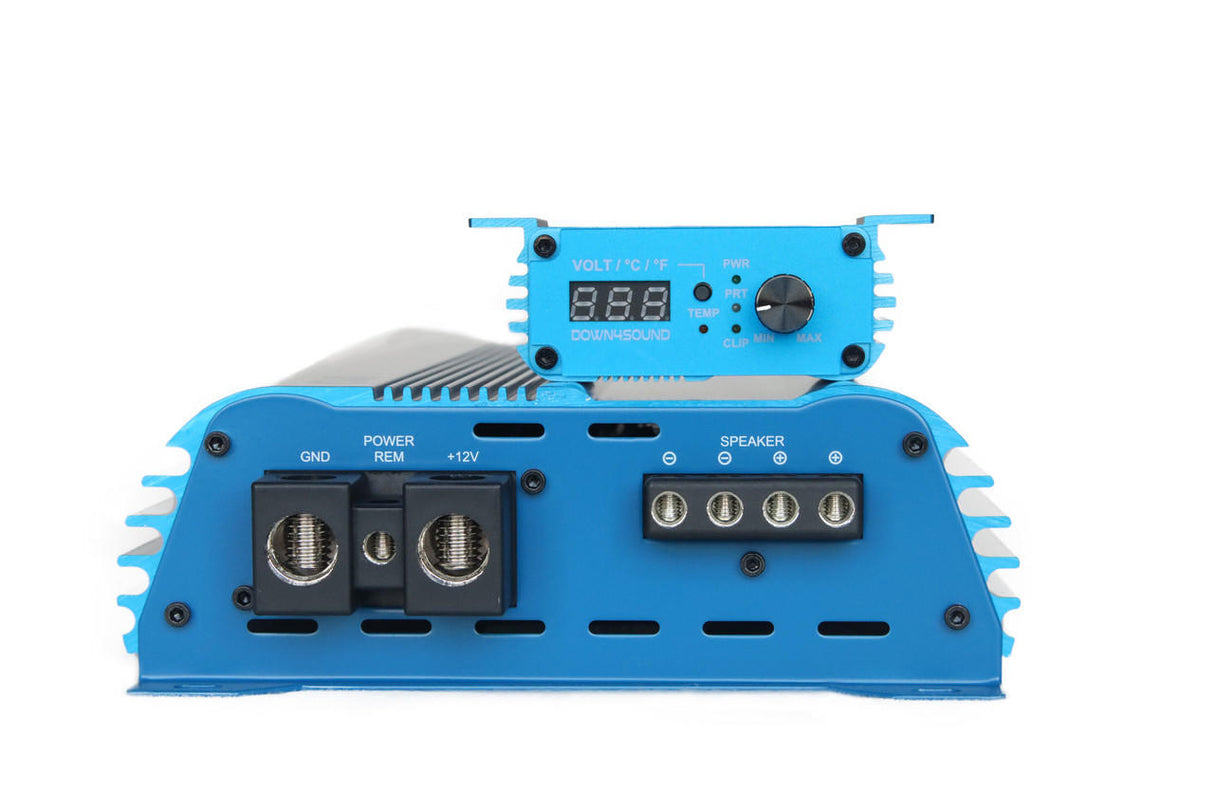

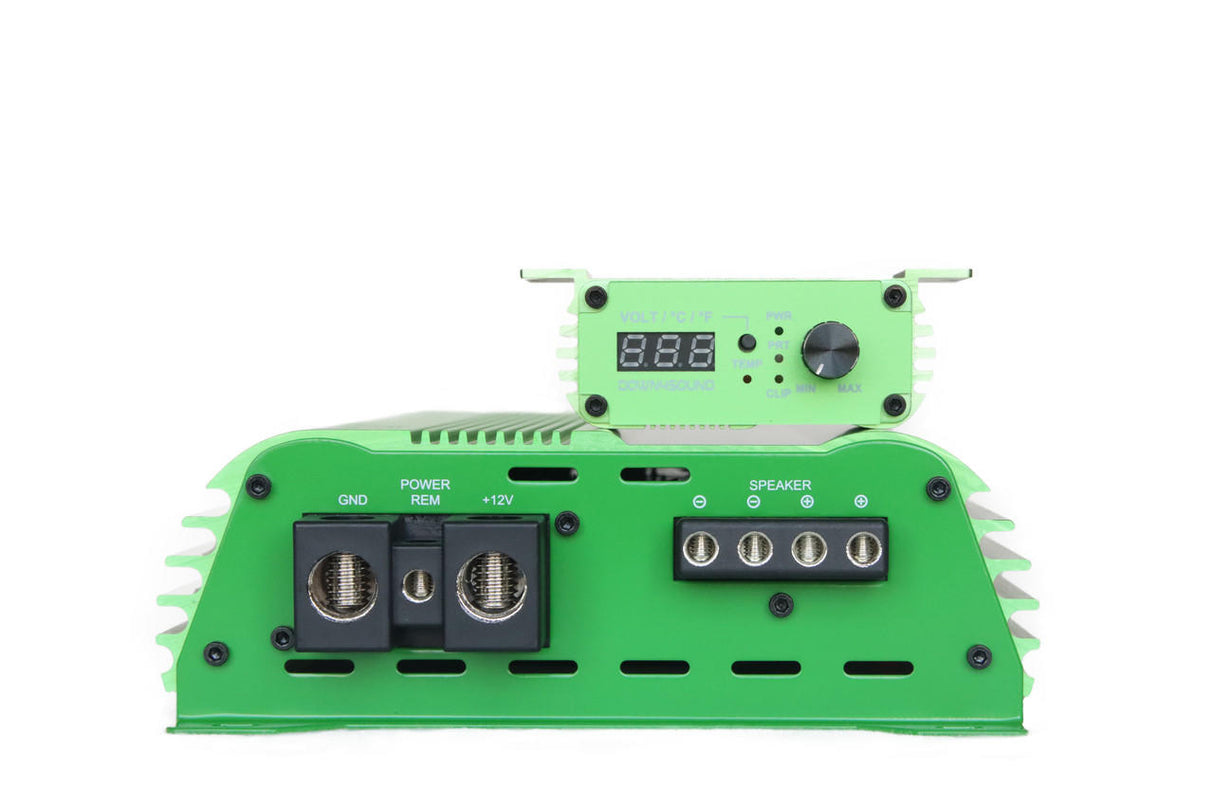

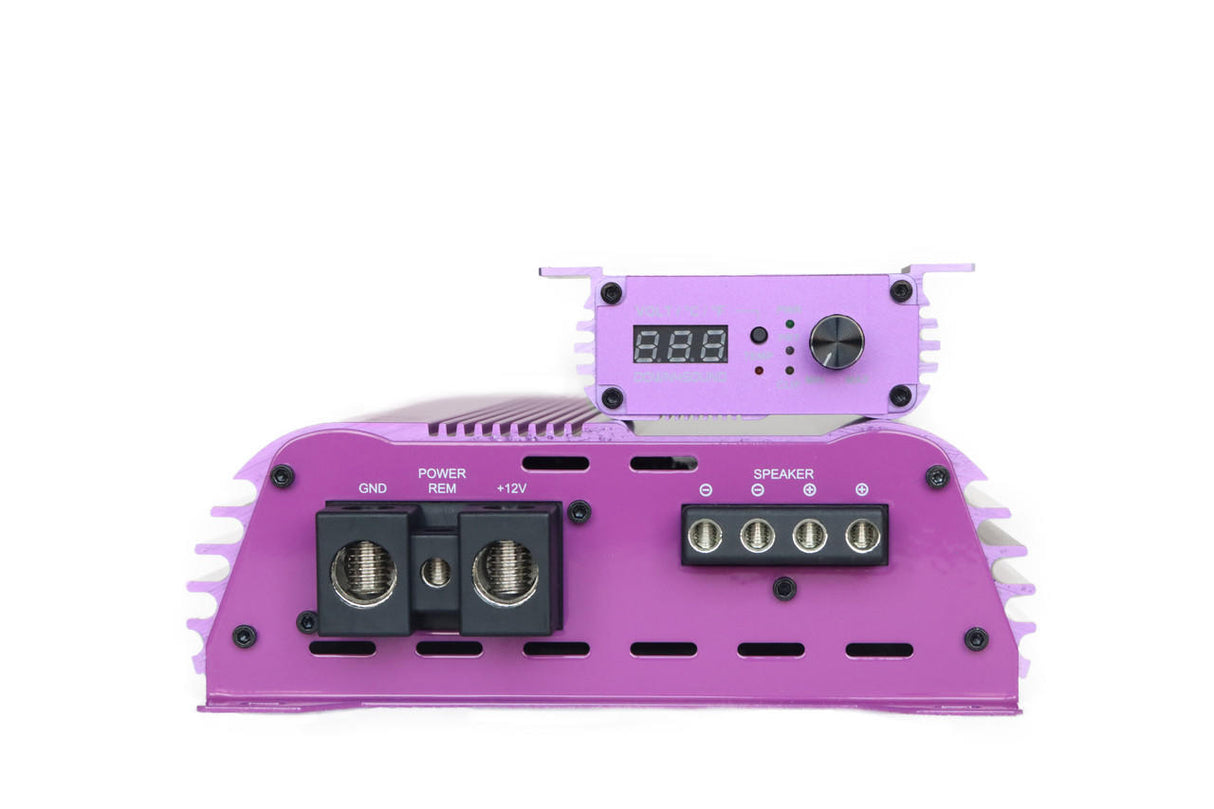

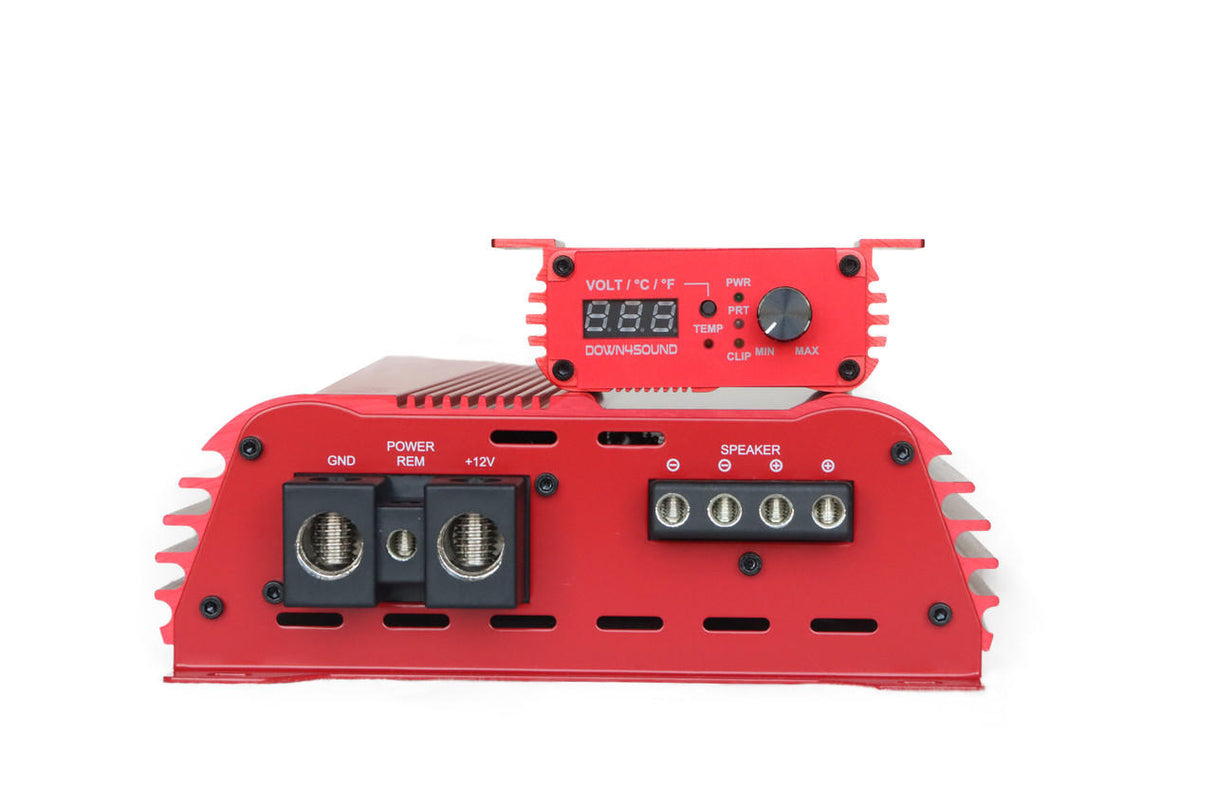

The included remote is packed with information like amp temperature, battery voltage, power, protection, and clipping status.

SPECIFICATIONS

Tested at 14.4V & 1% THD

Frequency Response: 12-270Hz

Variable Low Pass Filter: 35 - 250Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9 dB

Signal to Noise: <95dB

Total Harmonic Distortion: <0.1% @4 Ohms

Input Signal Sensitivity: 0.2 to 6 Volts

Recommended Fuse: 200 Amps

Dimensions: 11.82” Long x 7.4” Wide x 2.24” High
