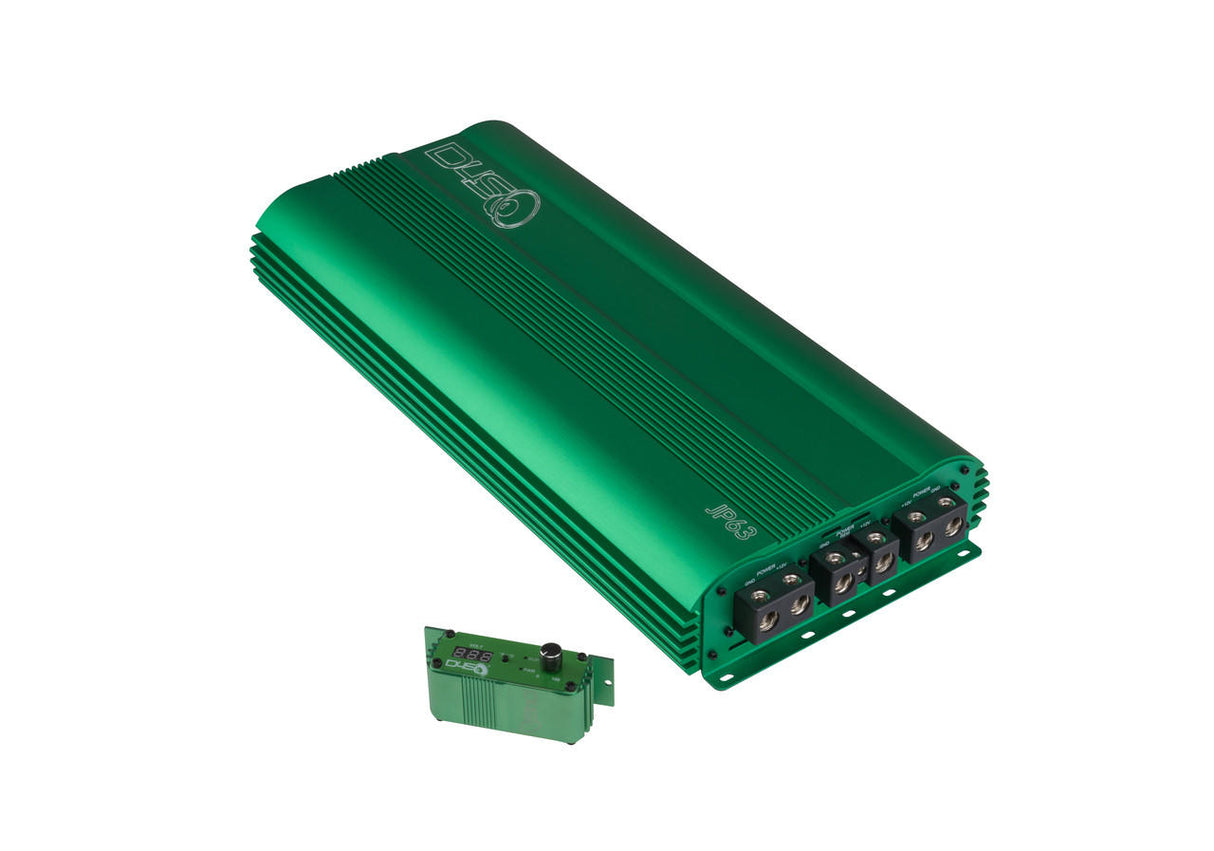

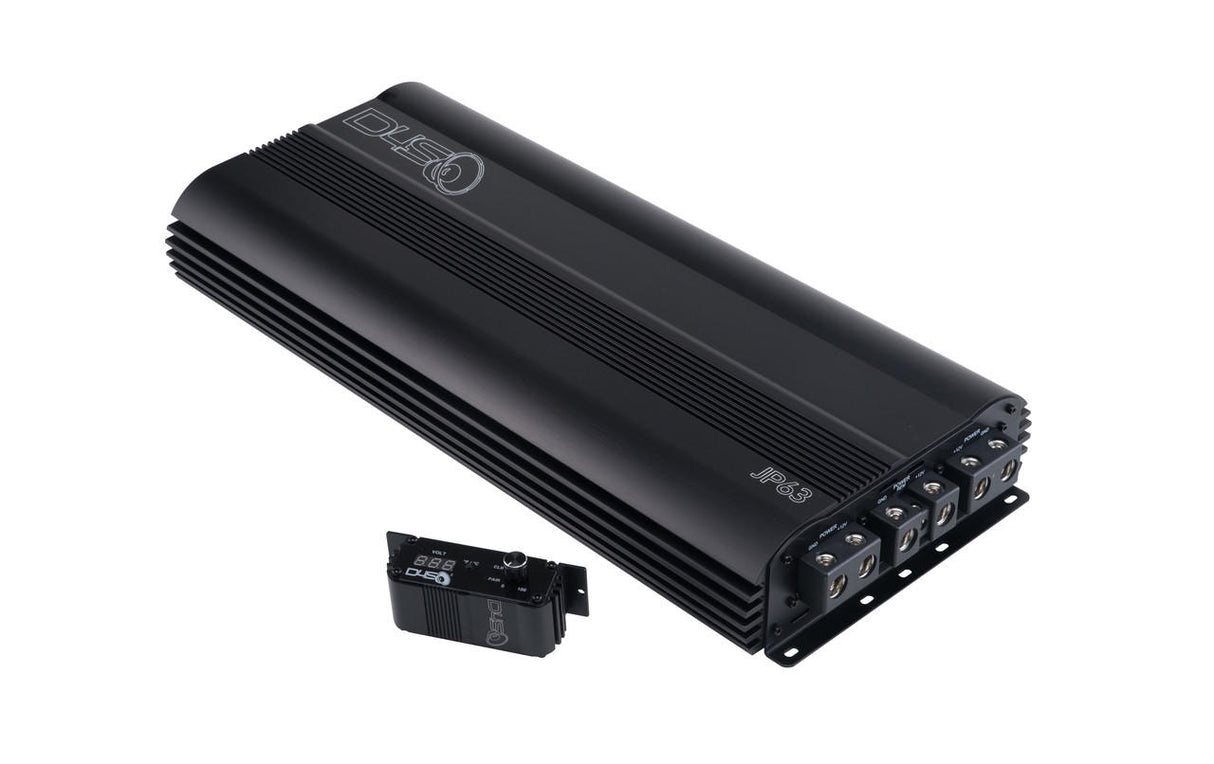

Down4Sound JP63 Sub Amp

Mono Class D Amplifier

On Board Power, Protection & Clipping Indicators

Strappable Design

Variable Low-Pass, Phase & Subsonic Filters

Bluetooth Remote With Voltage & Temperature Display + Clipping Indicator

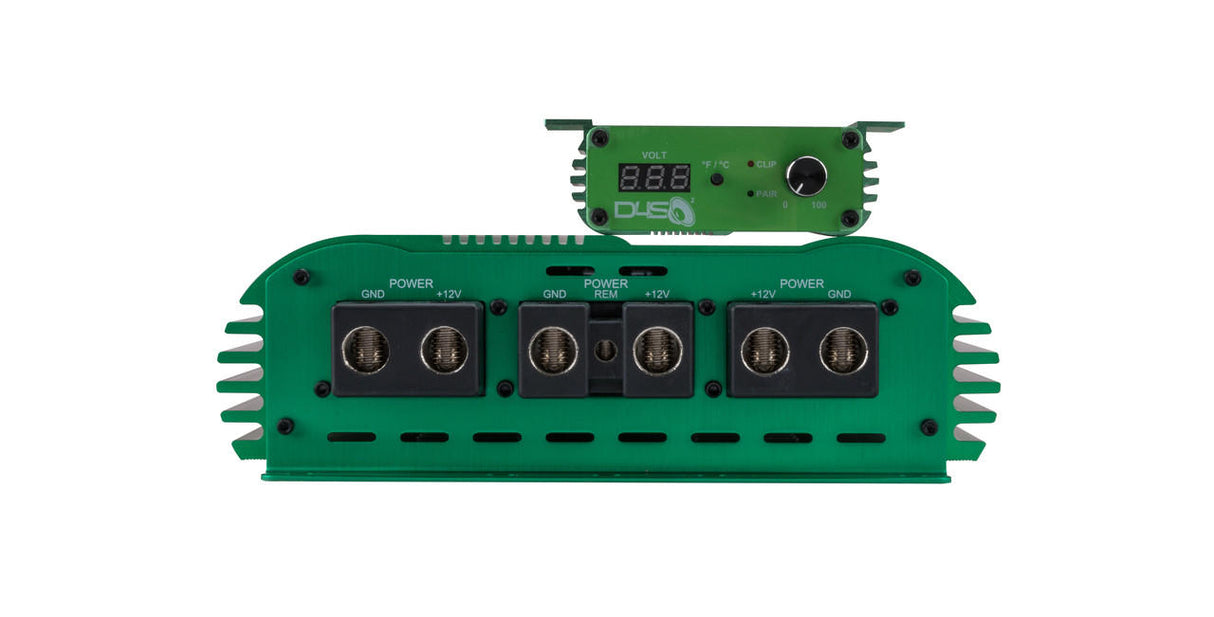

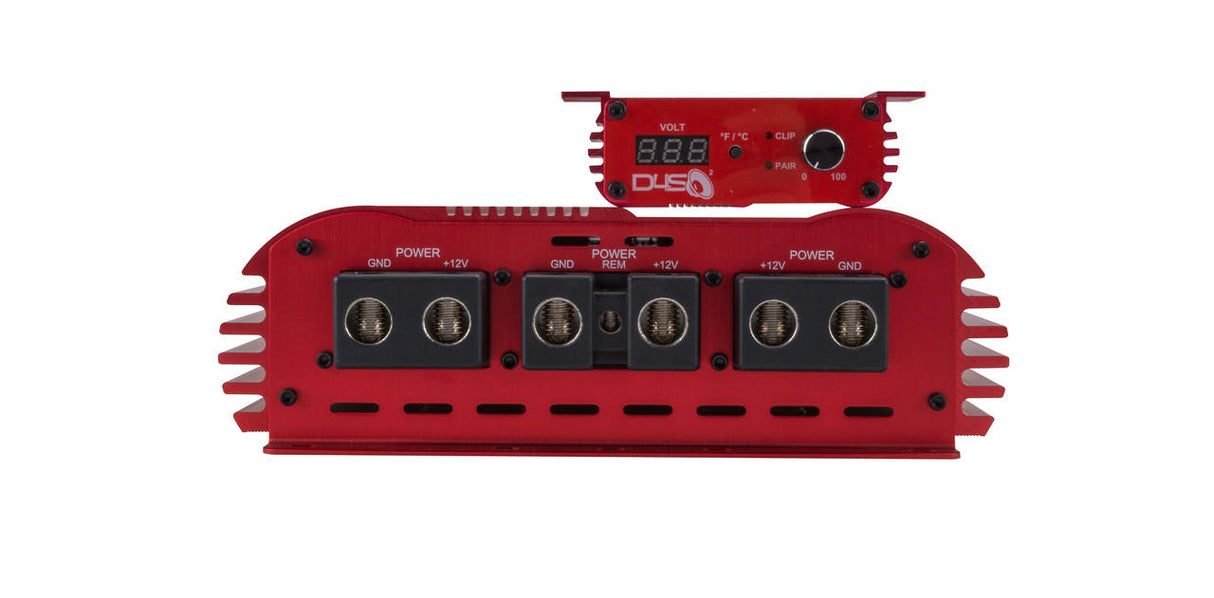

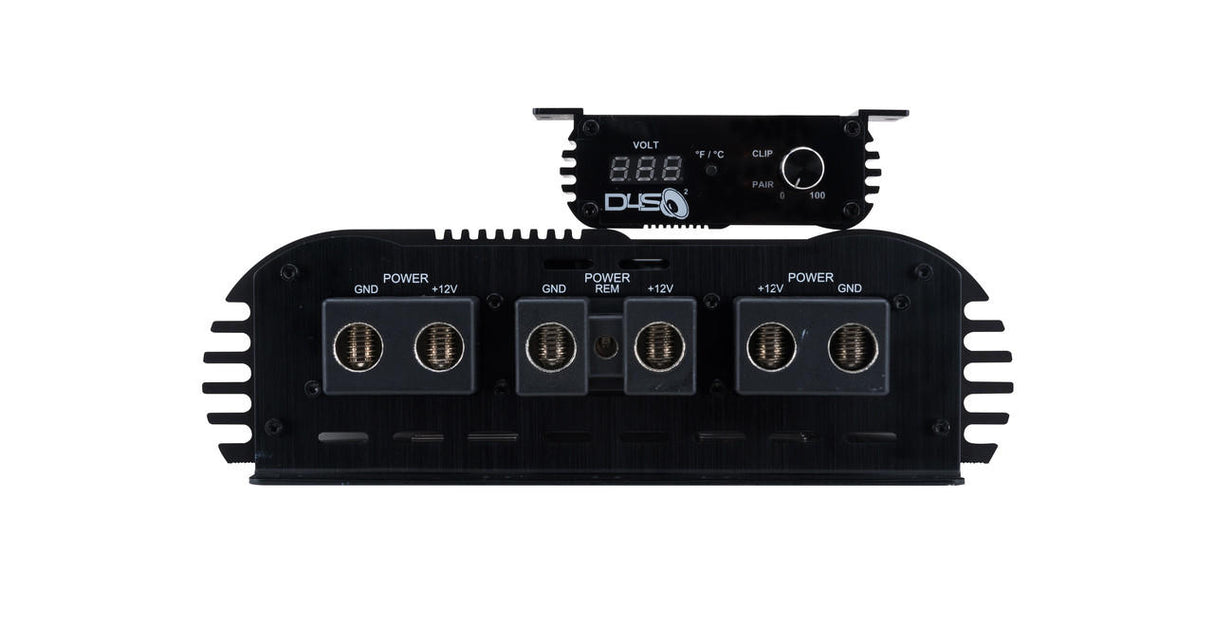

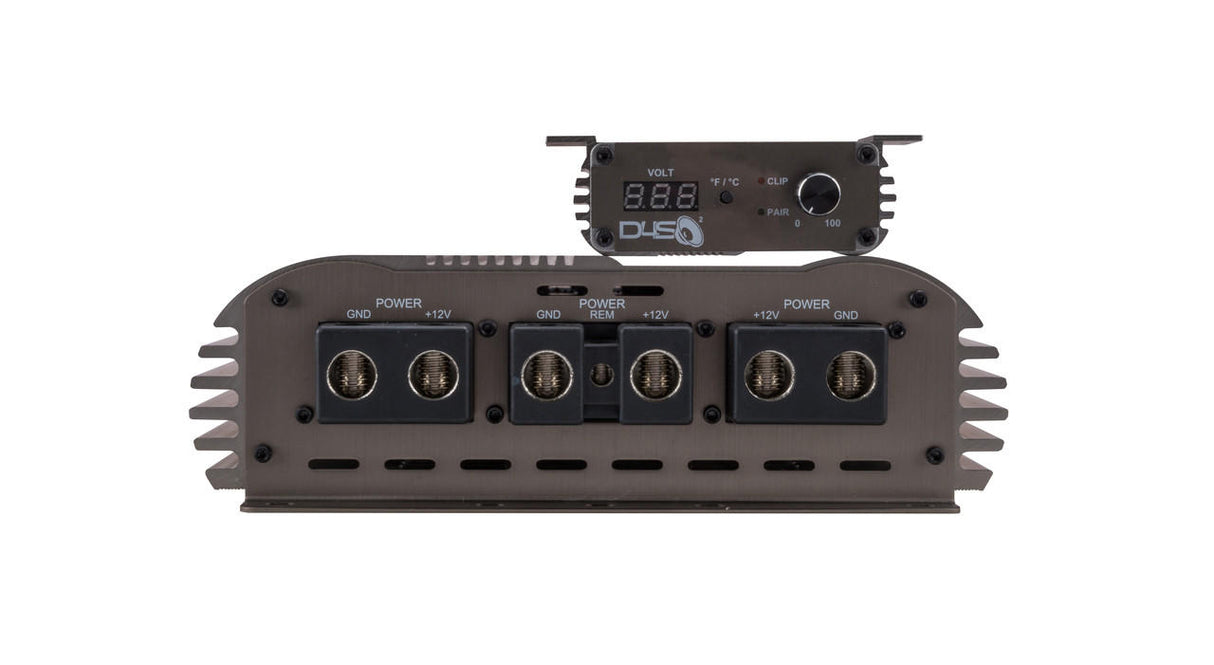

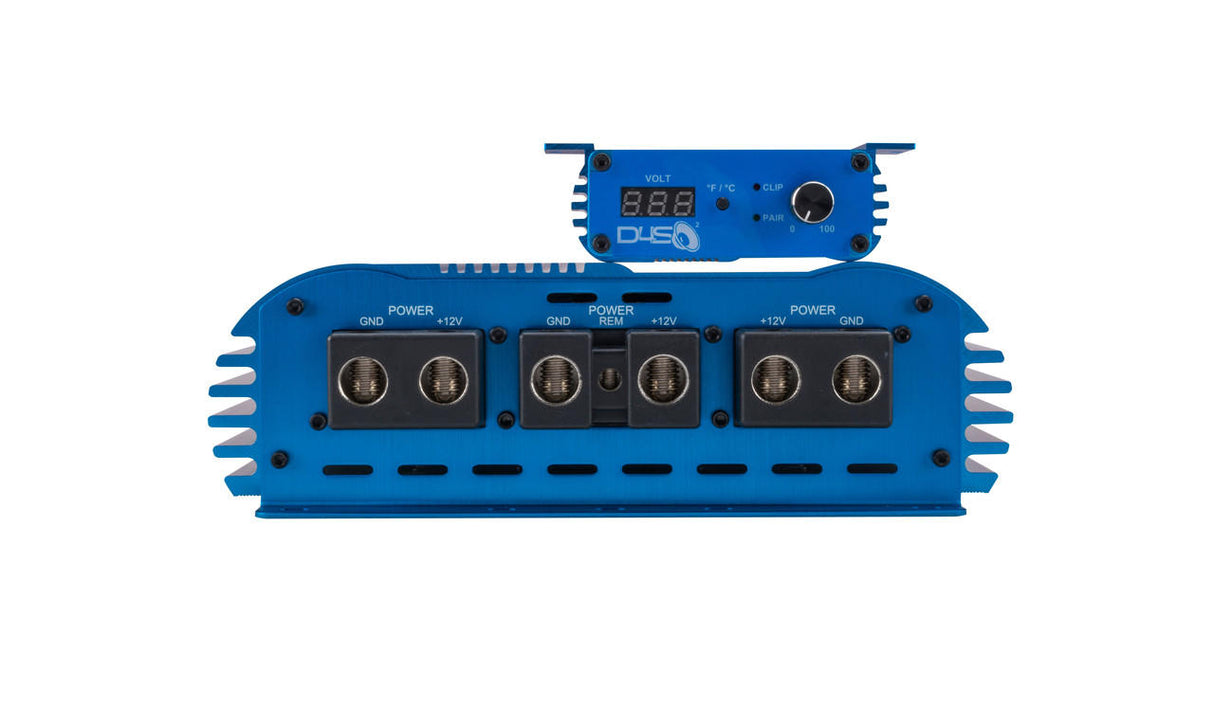

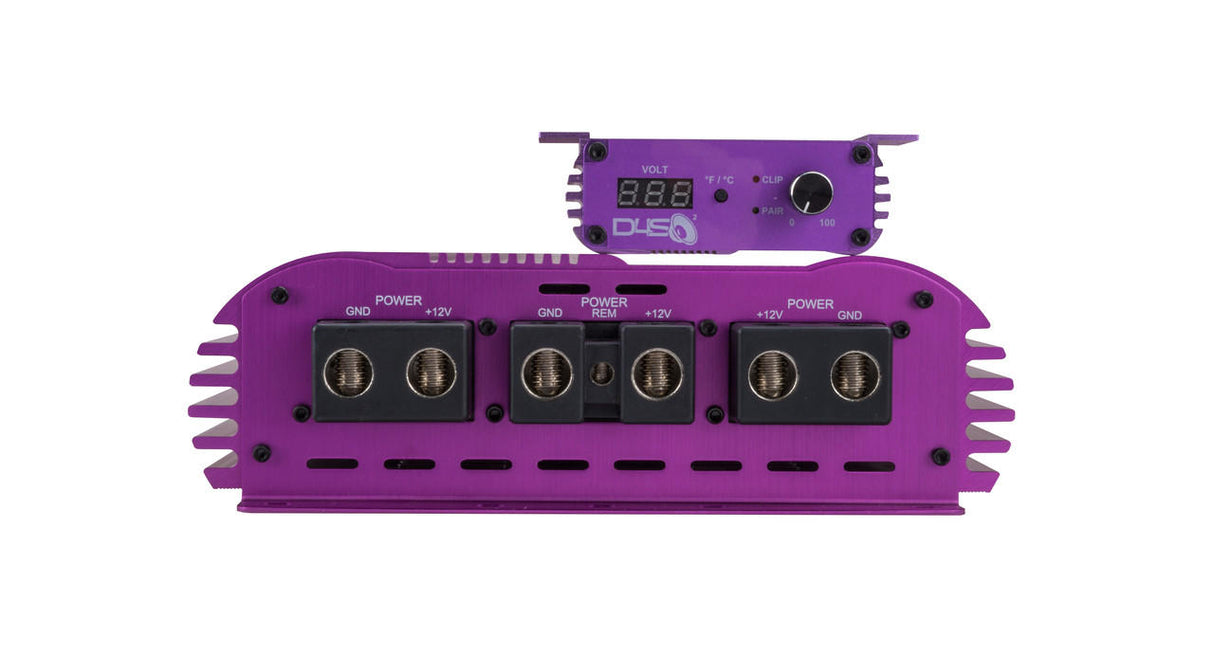

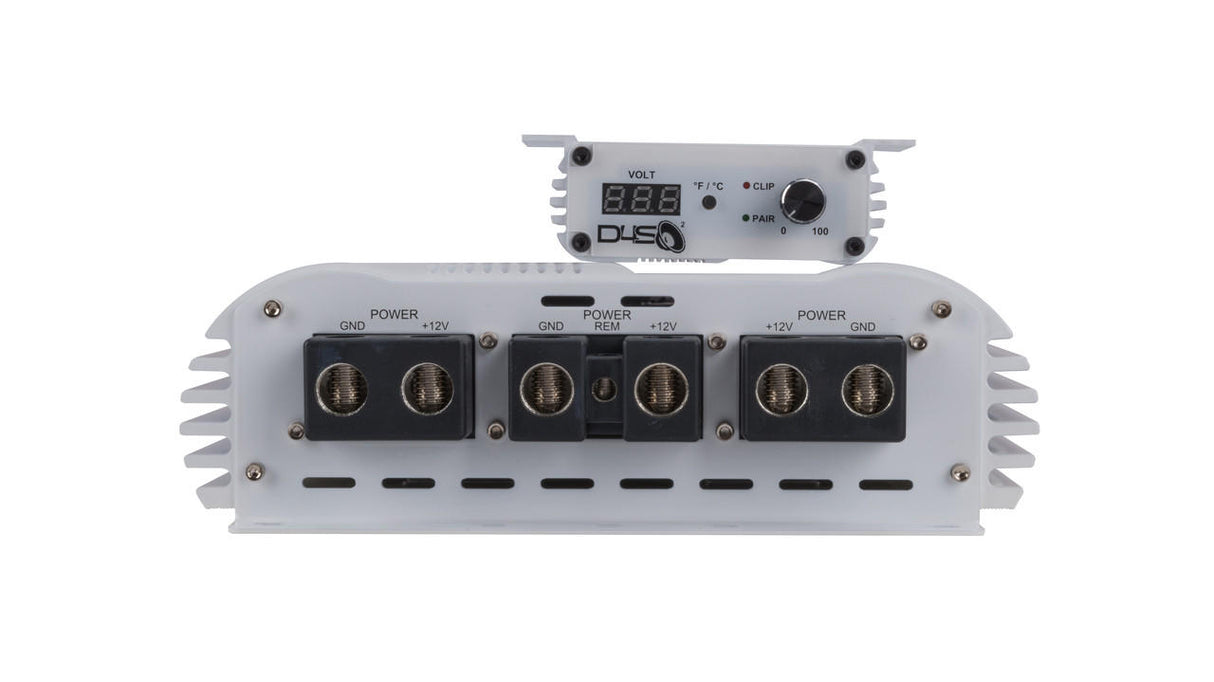

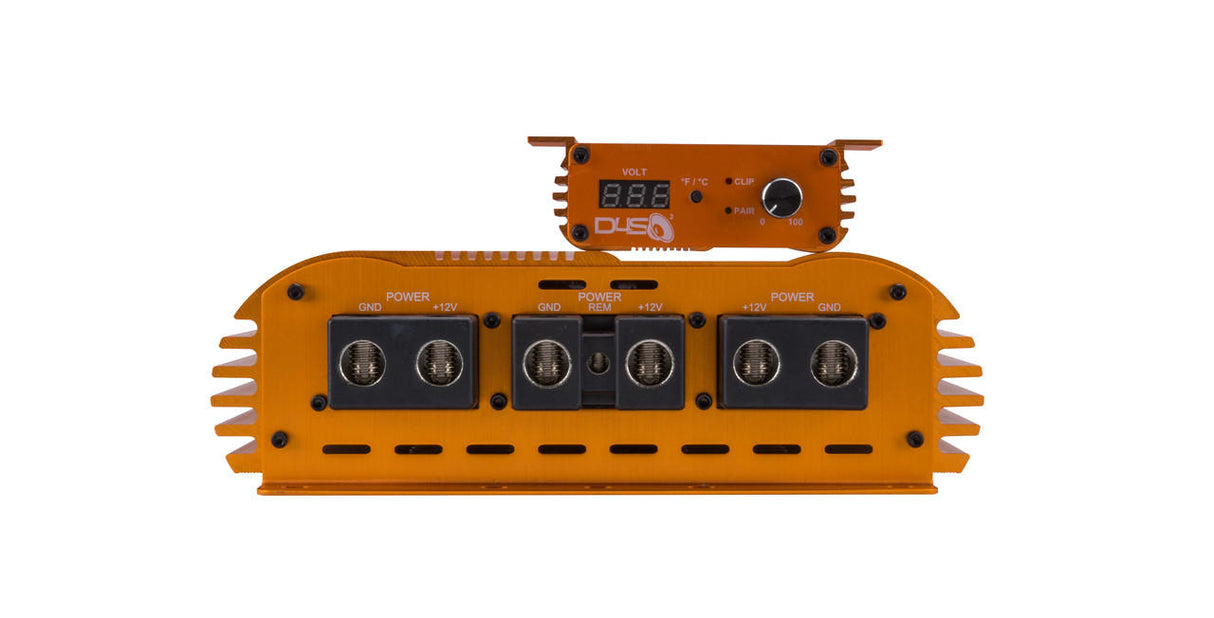

Three 1/0 AWG Power & Ground Inputs

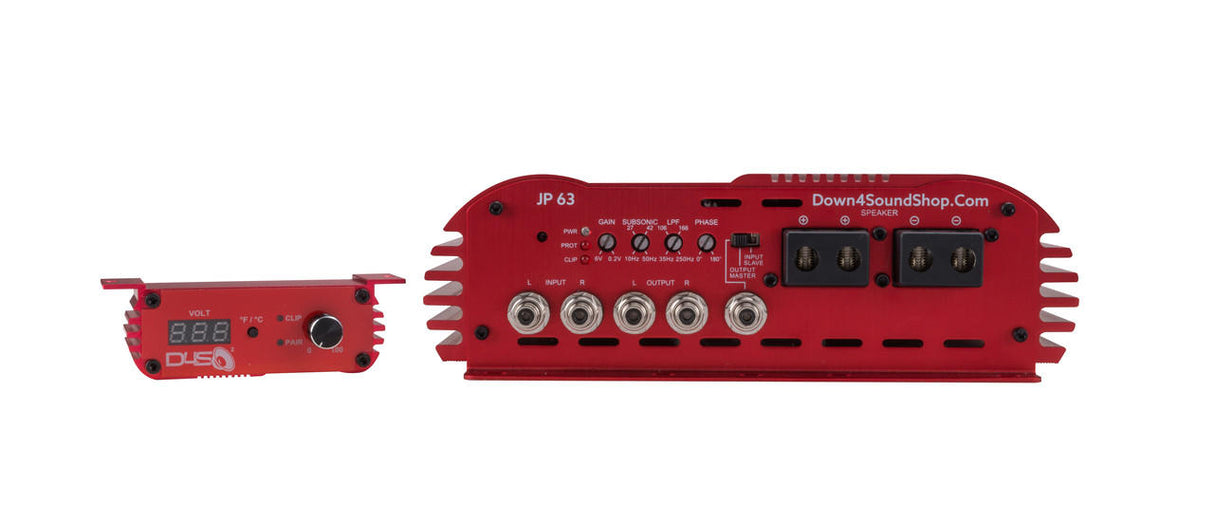

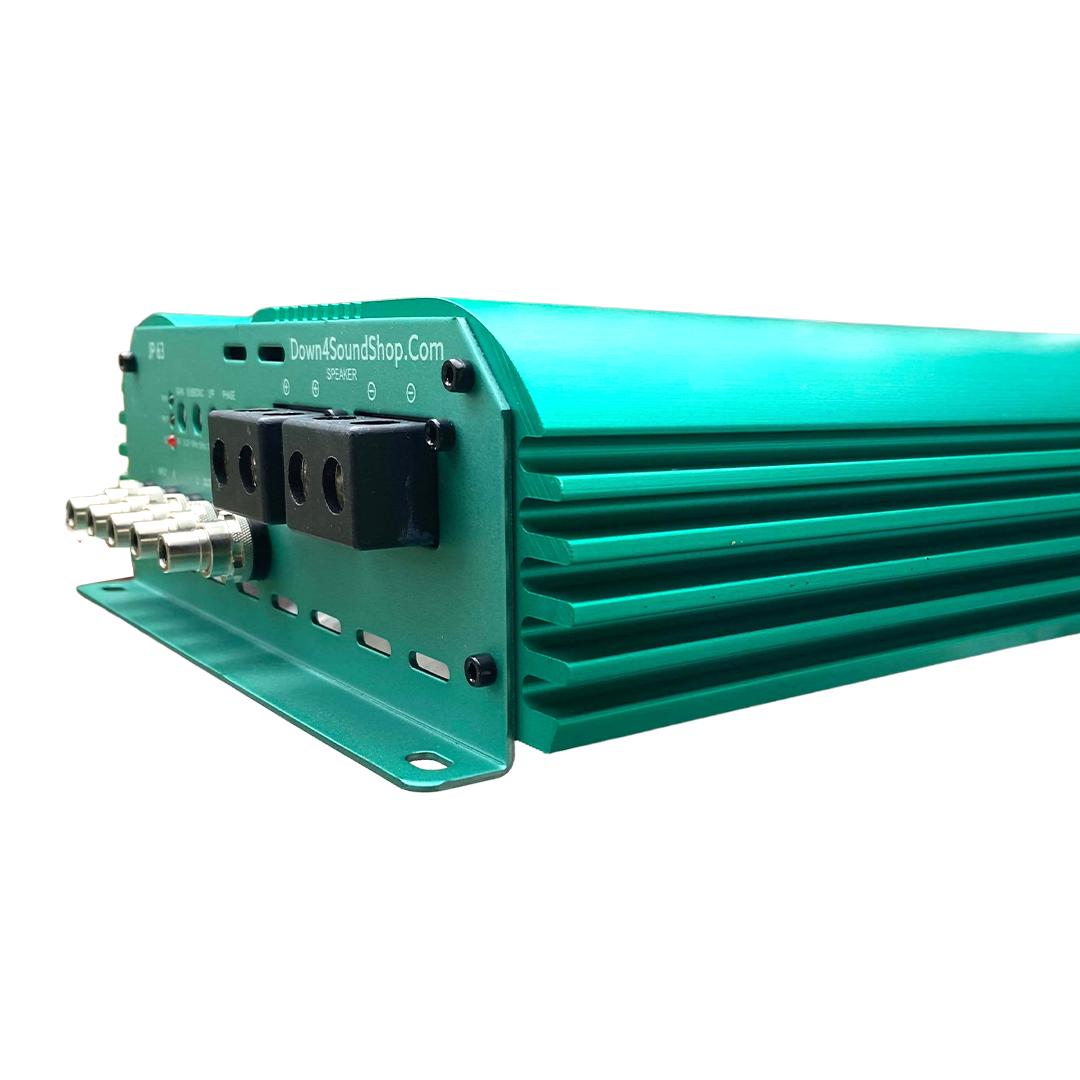

Two 4 AWG Speaker Outputs

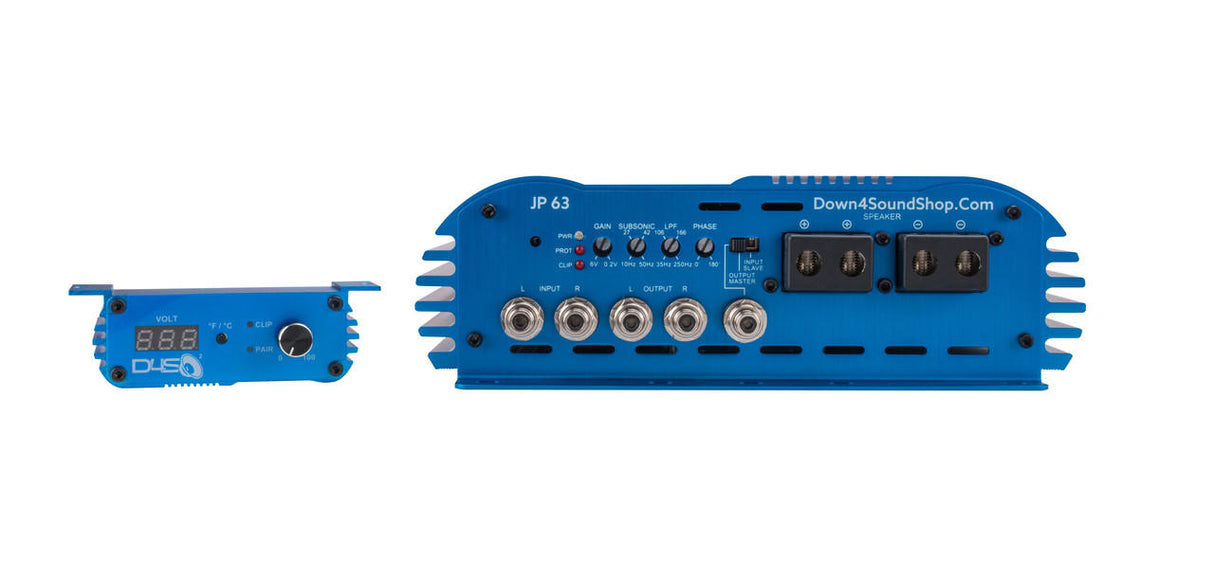

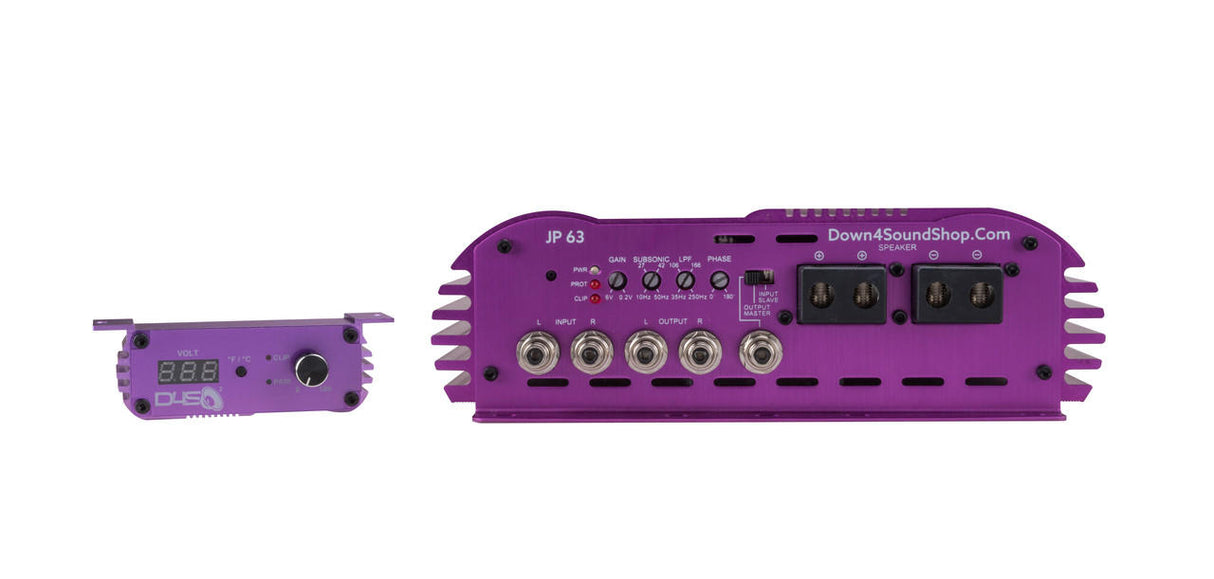

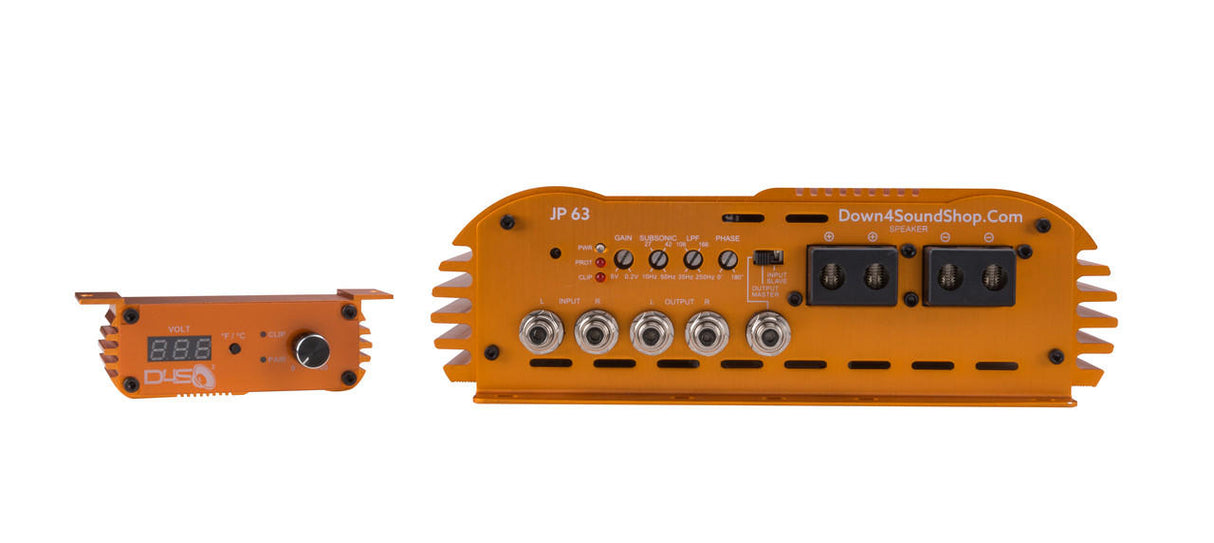

Two RCA Pass-Through Outputs

Power

Max Rated Output (Strapped to a second JP63): 13,600 Watts

1 Ohm RMS: 6,300W

2 Ohm RMS: 4,300W

4 Ohm RMS: 2,300W

Triple 1/0 power inputs and Tiffany RCA connectors help make the Down4Sound JP63 a formidable bass amp - not to mention its ability to drive over 6K on its own. More than a match for your subwoofer system, the amp includes oversized speaker terminals that are capable of taking up to a 4 gauge wire. Want even more power? Strap another JP63 together for a single 12,600-watt power source!

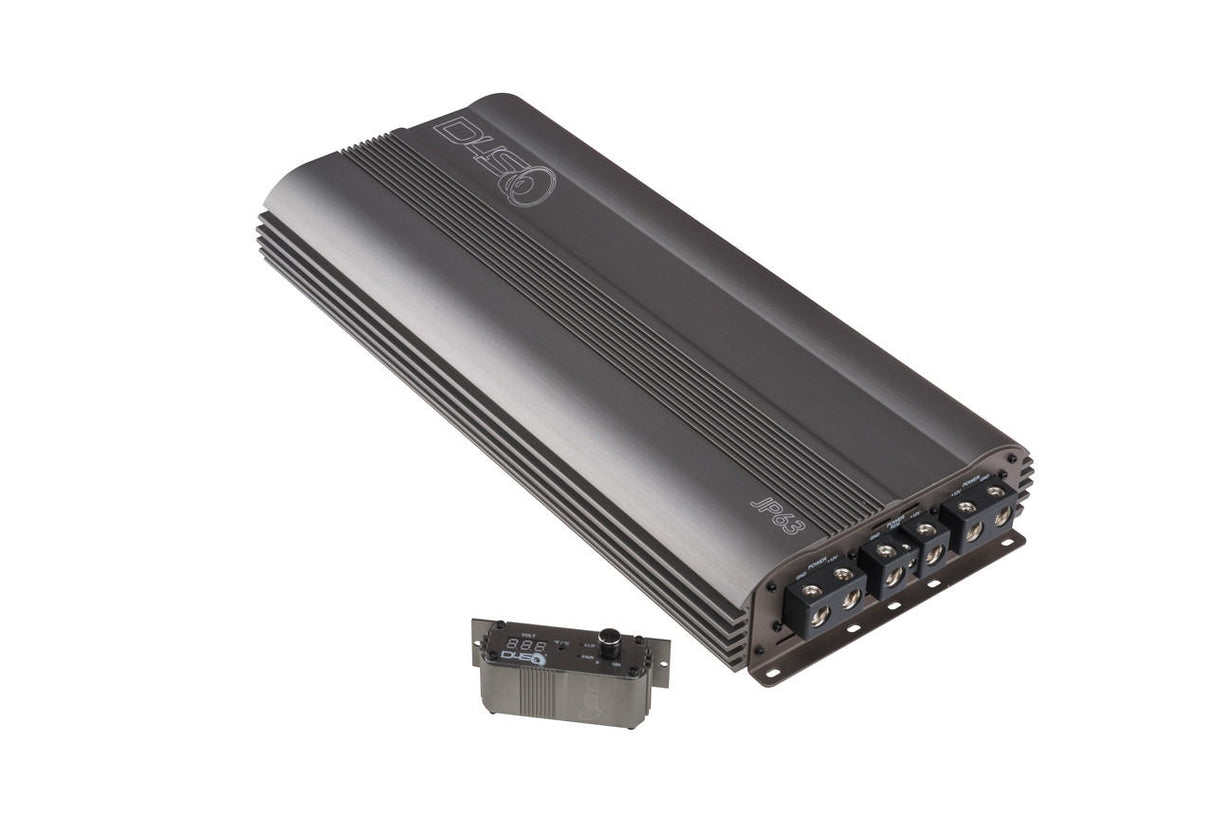

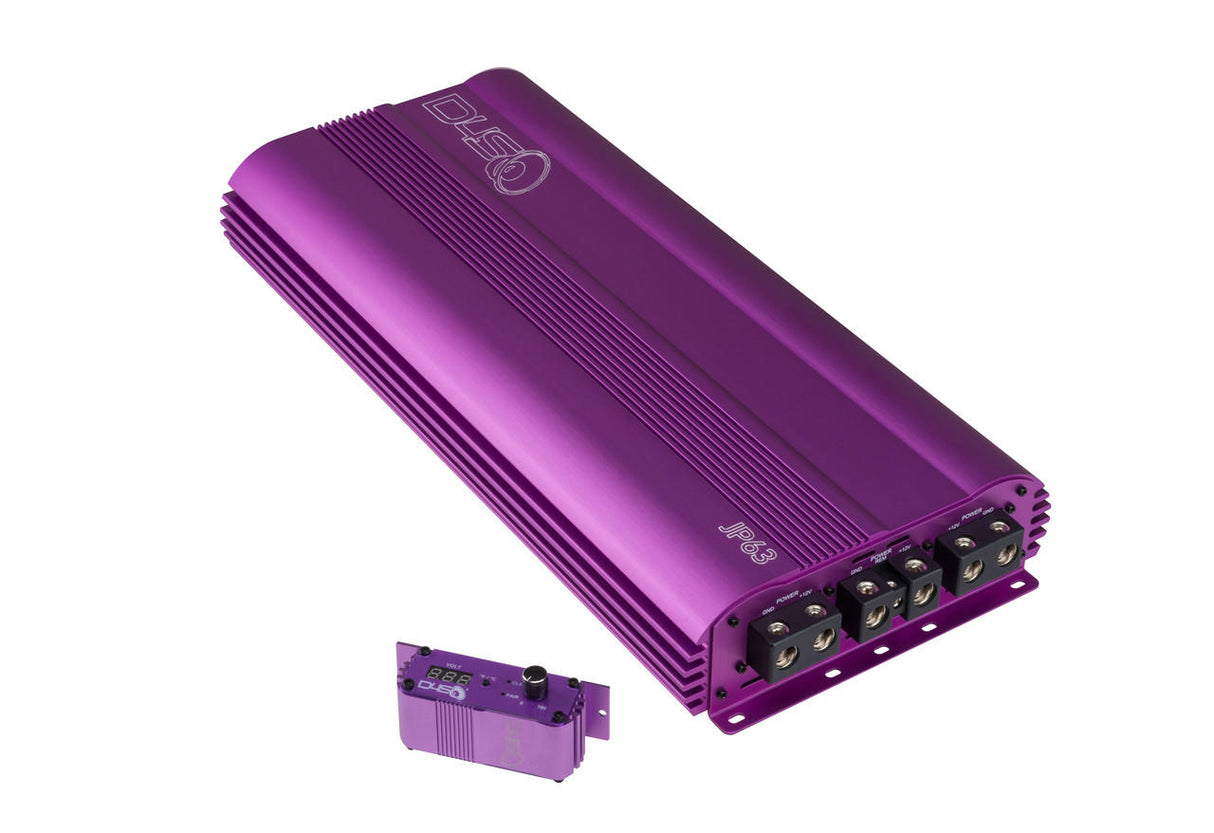

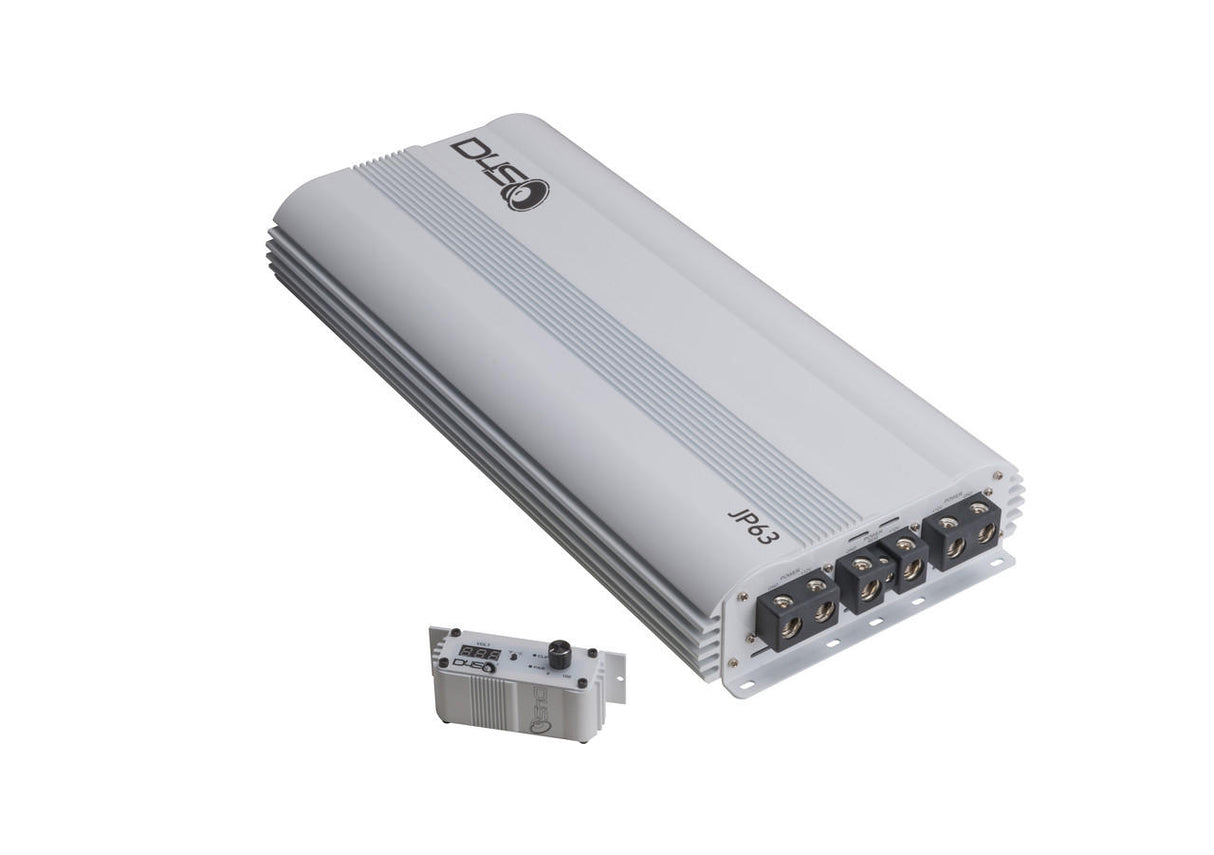

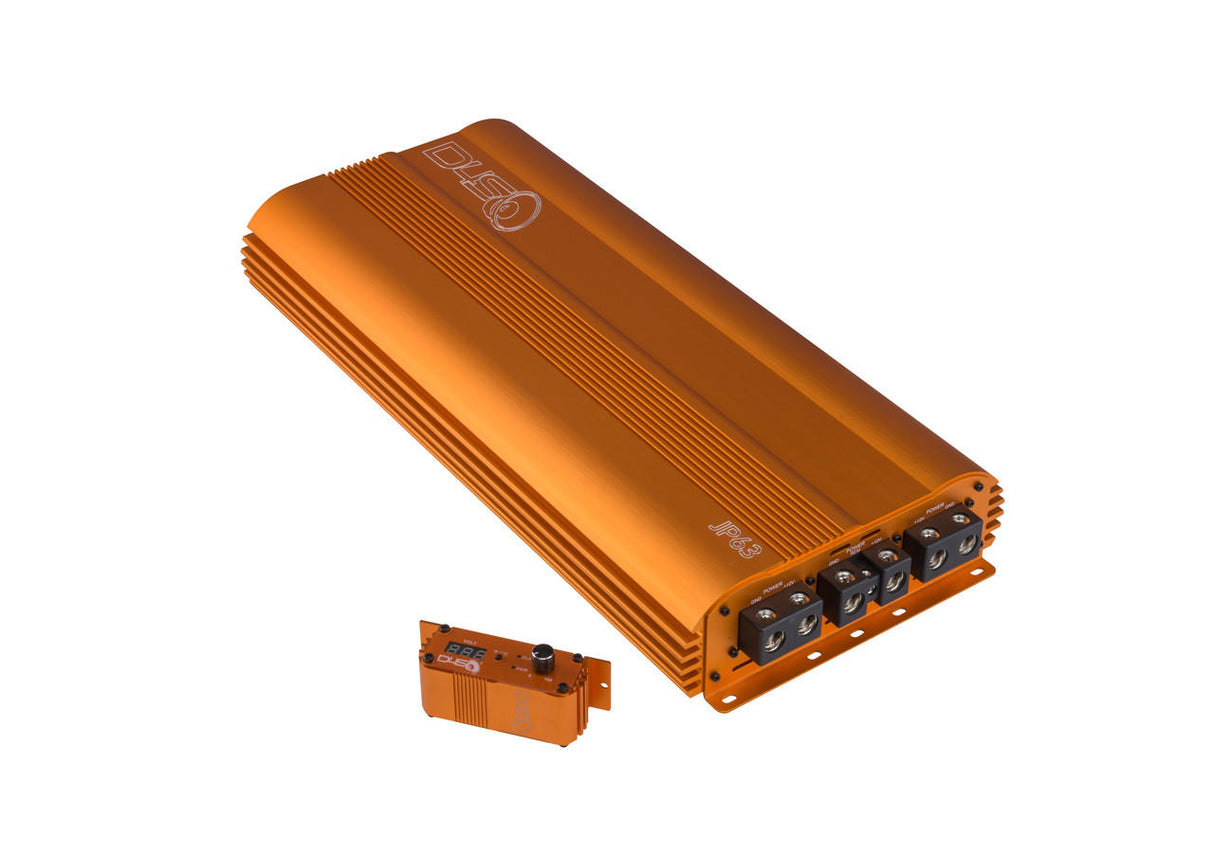

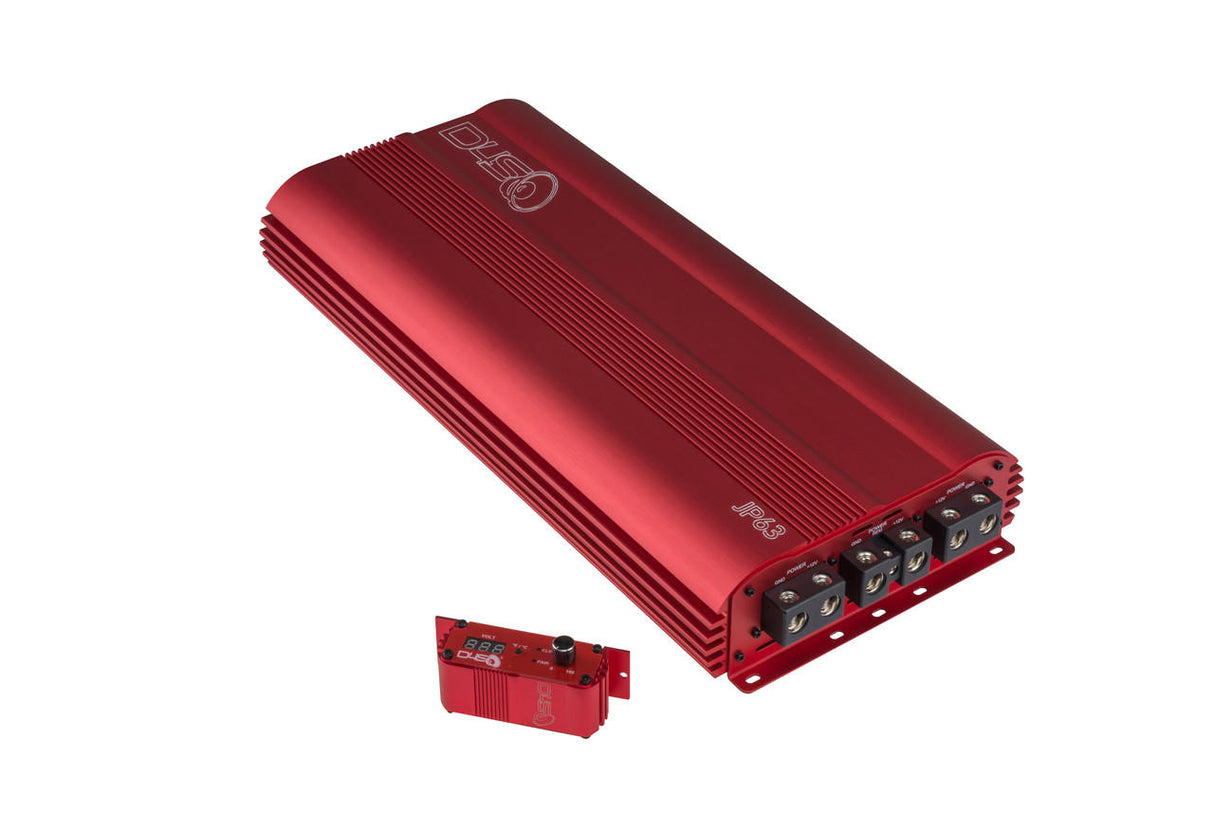

Available in nine brilliant colors and equipped with variable phase, subsonic, and lowpass acoustic controls, this powerhouse is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers.

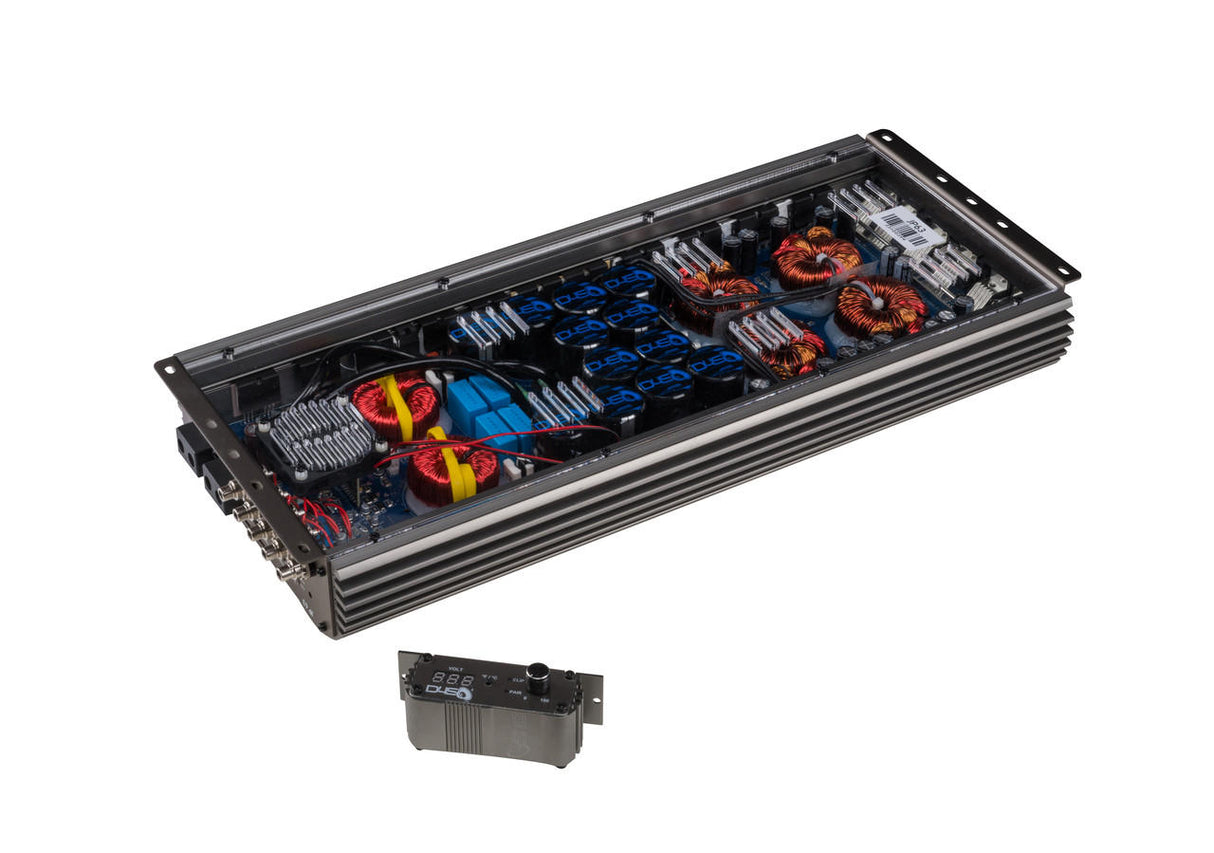

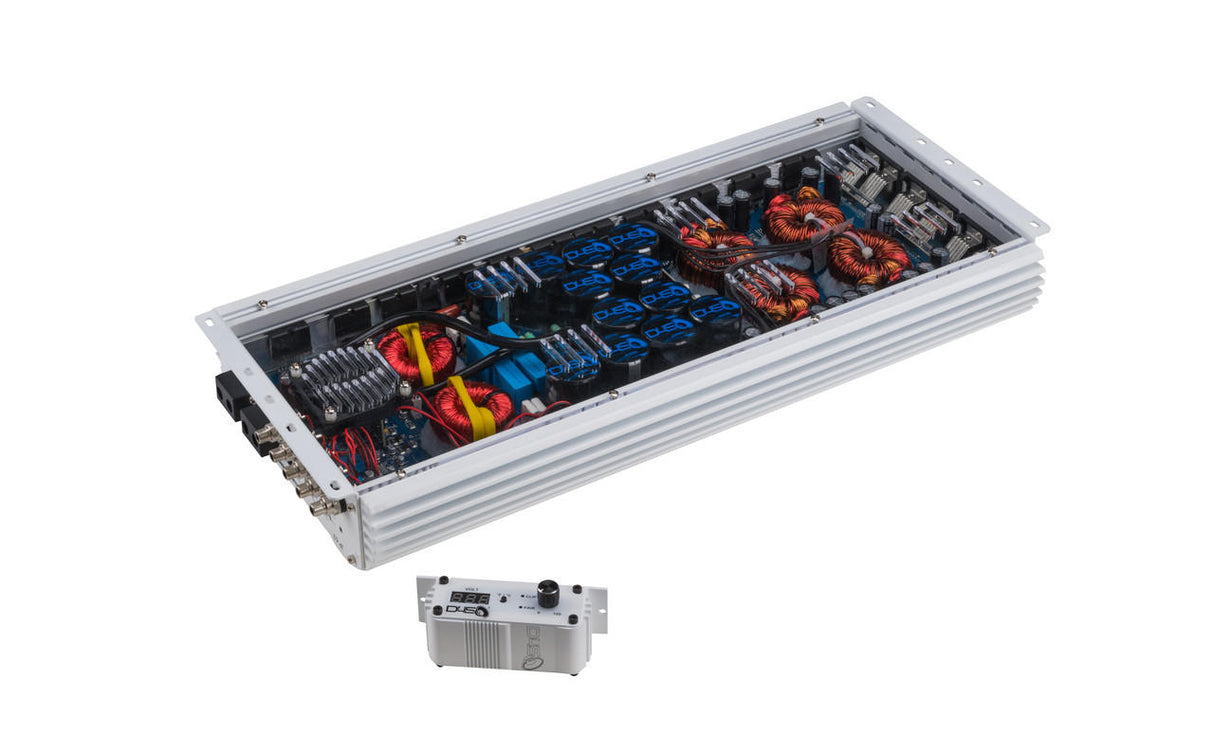

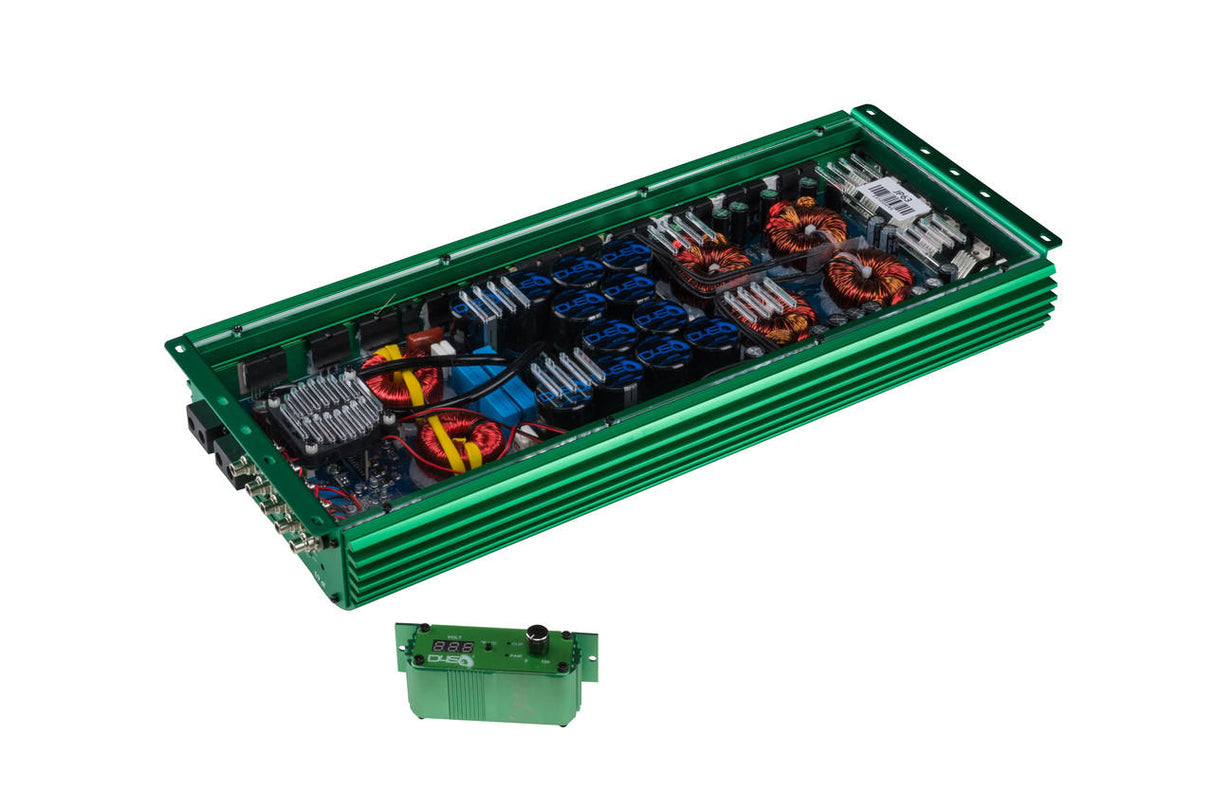

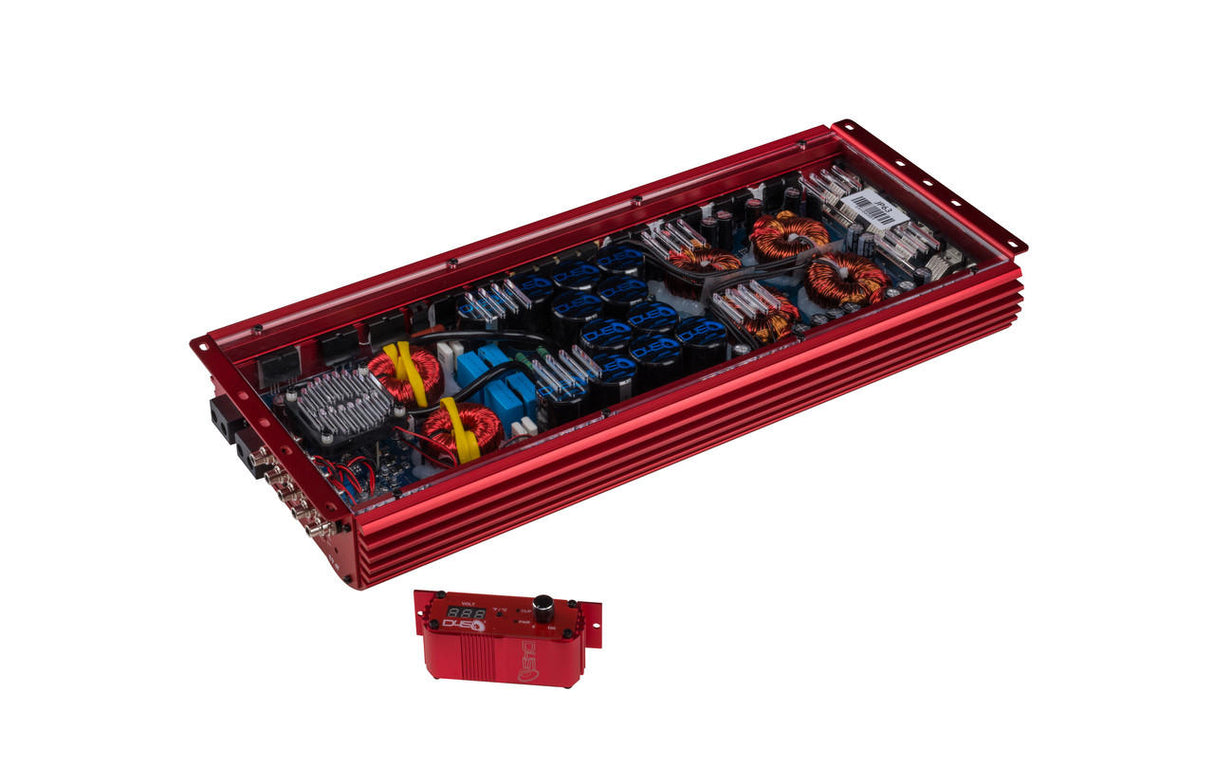

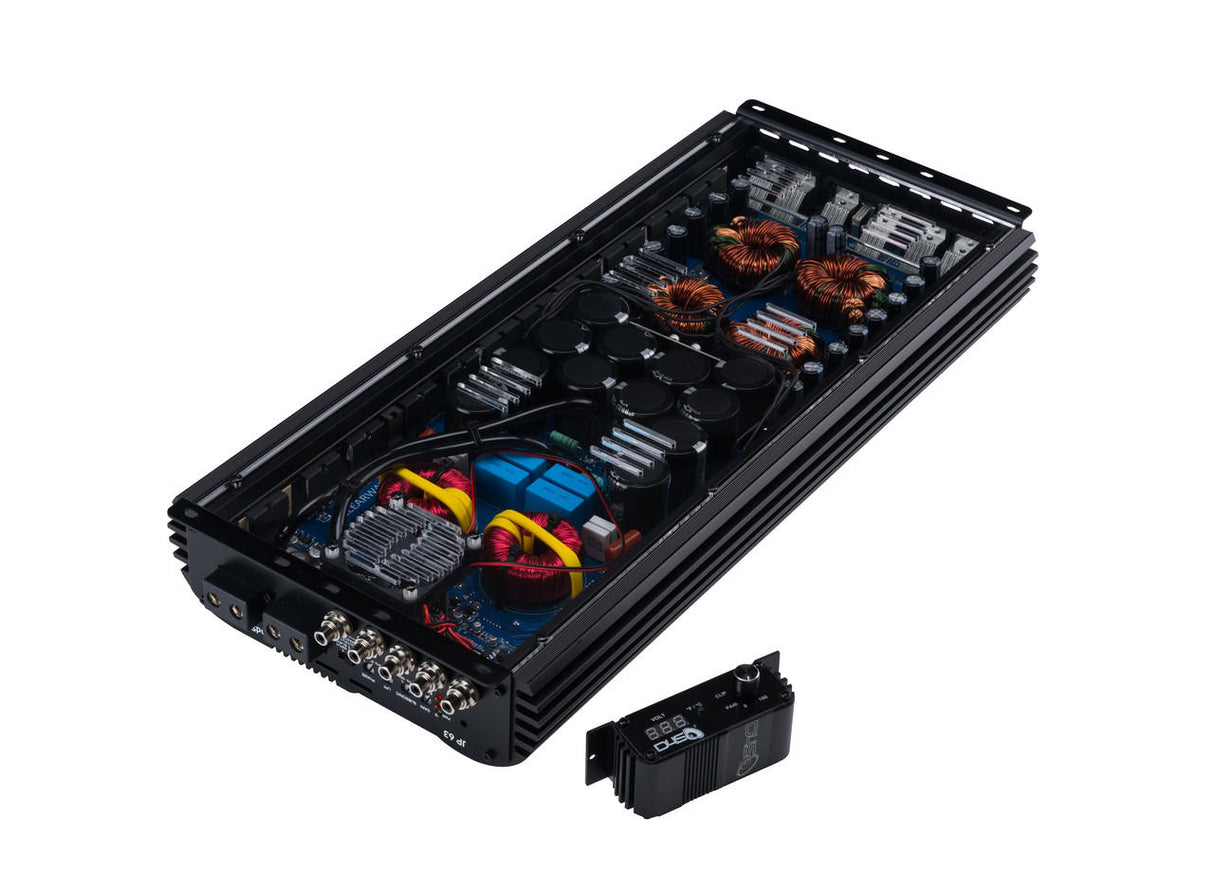

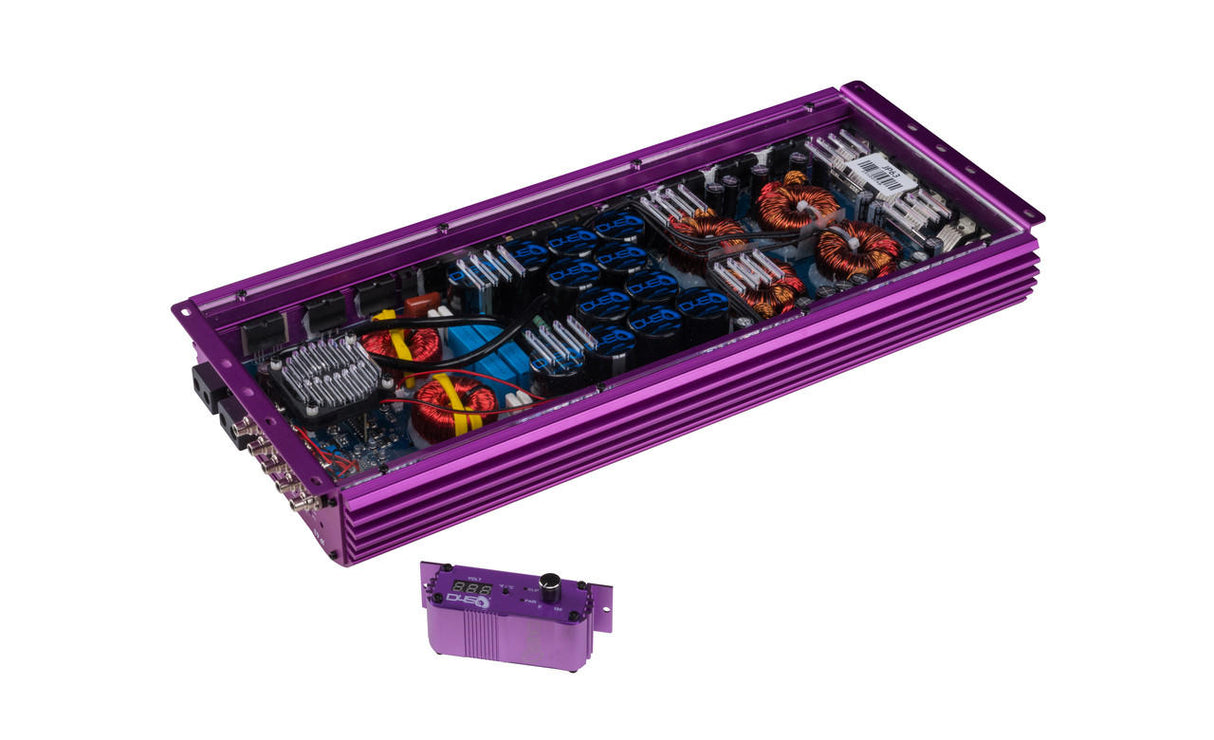

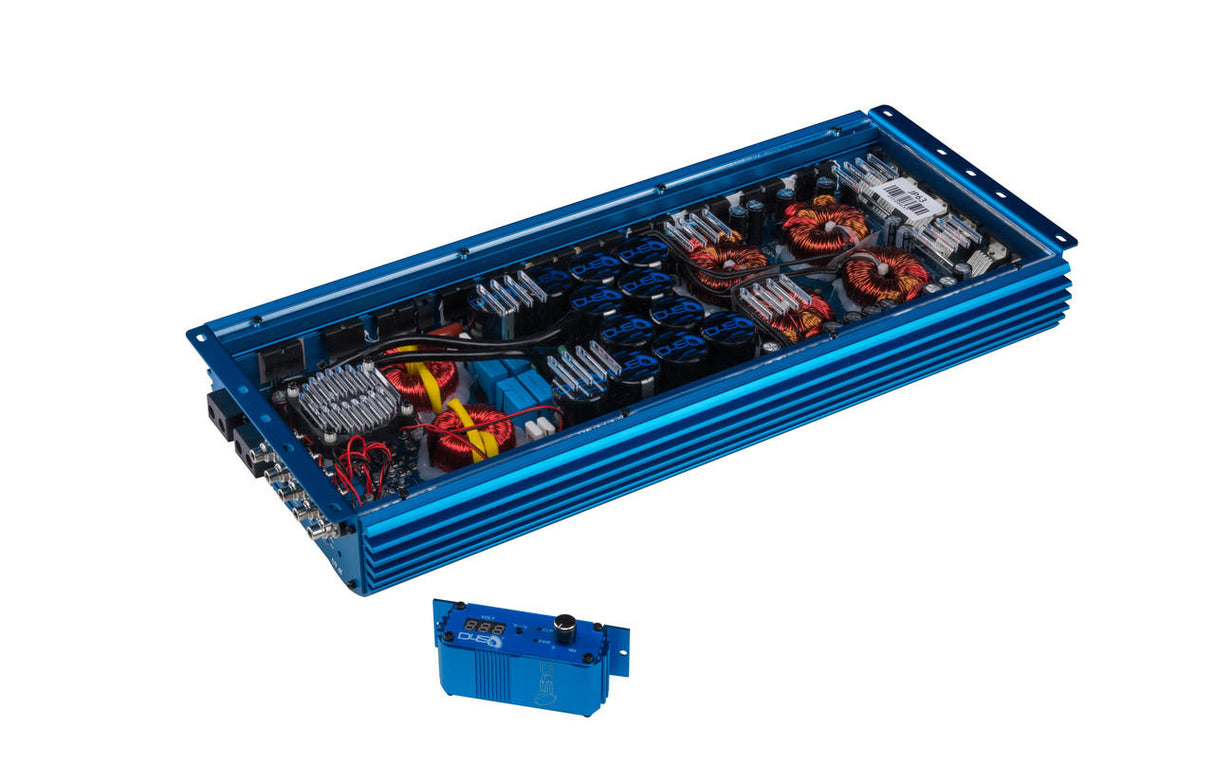

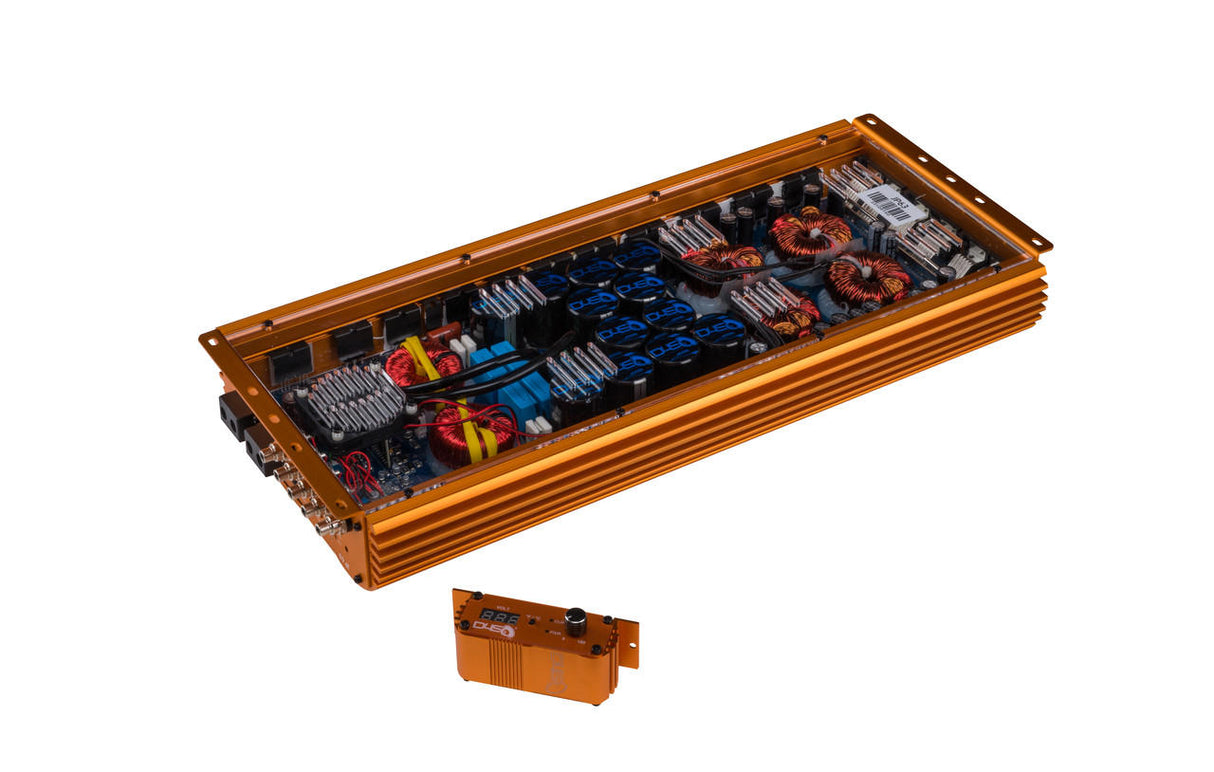

The included Bluetooth remote is packed with information like amp temperature, battery voltage, temperature, and clipping status. The Plexi base lets you see every detail of the board, so flip the amp over to see the heart of the Korean Class D design!

SPECIFICATIONS

Frequency Response: 14 - 269Hz

Variable Low Pass Filter: 35 - 250Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Phase Control: 0 - 180°

Signal to Noise: 91dB

Efficiency @4Ω: 97%

Damping: <480

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 9 to 16 Volts

Recommended Fusing: 700 Amps

Dimensions: 19.68” Long x 9.37” Wide x 2.64” High
