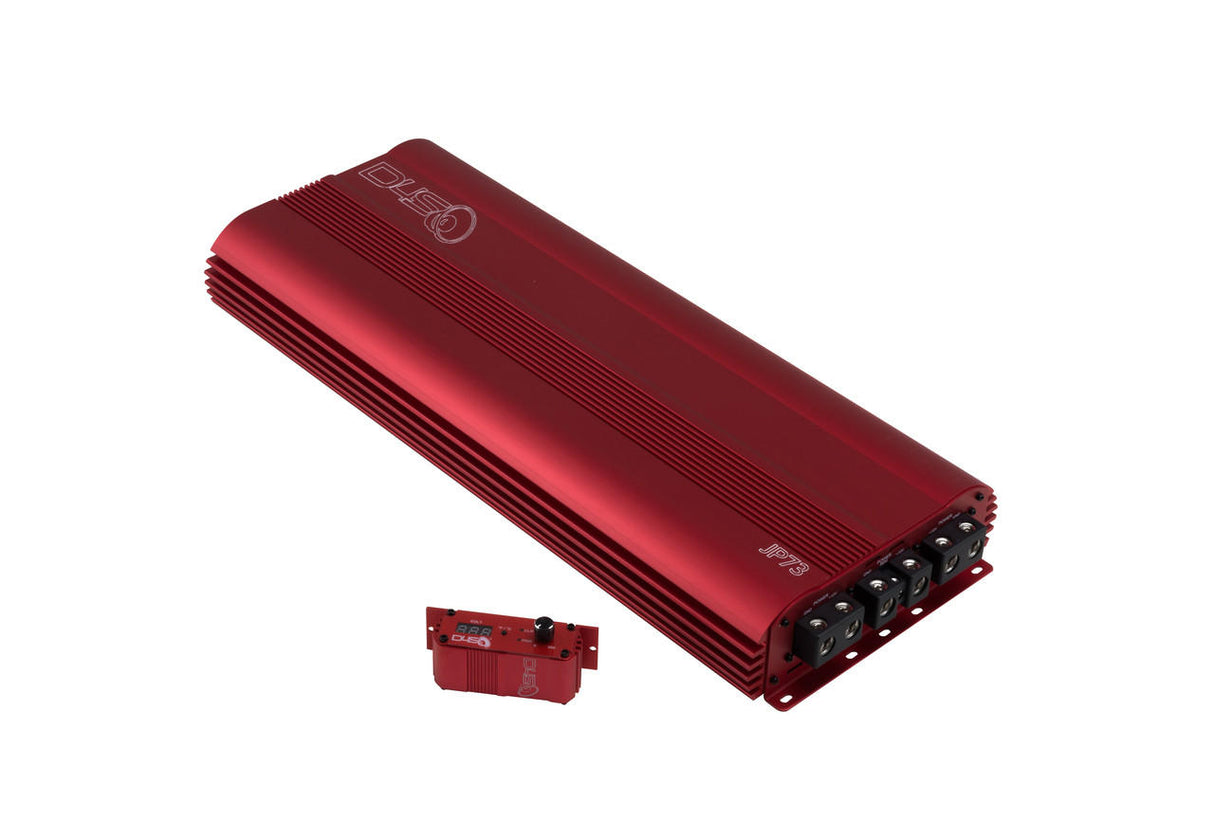

Down4Sound JP73 Sub Amp

Mono Class D Amplifier

On Board Power, Protection & Clipping Indicators

Strappable Design

Variable 9dB Bass Boost

Variable Low-Pass, Bass Boost & Subsonic Filters

Bluetooth Remote With Voltage & Temperature Display + Clipping Indicator

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short And Dc)

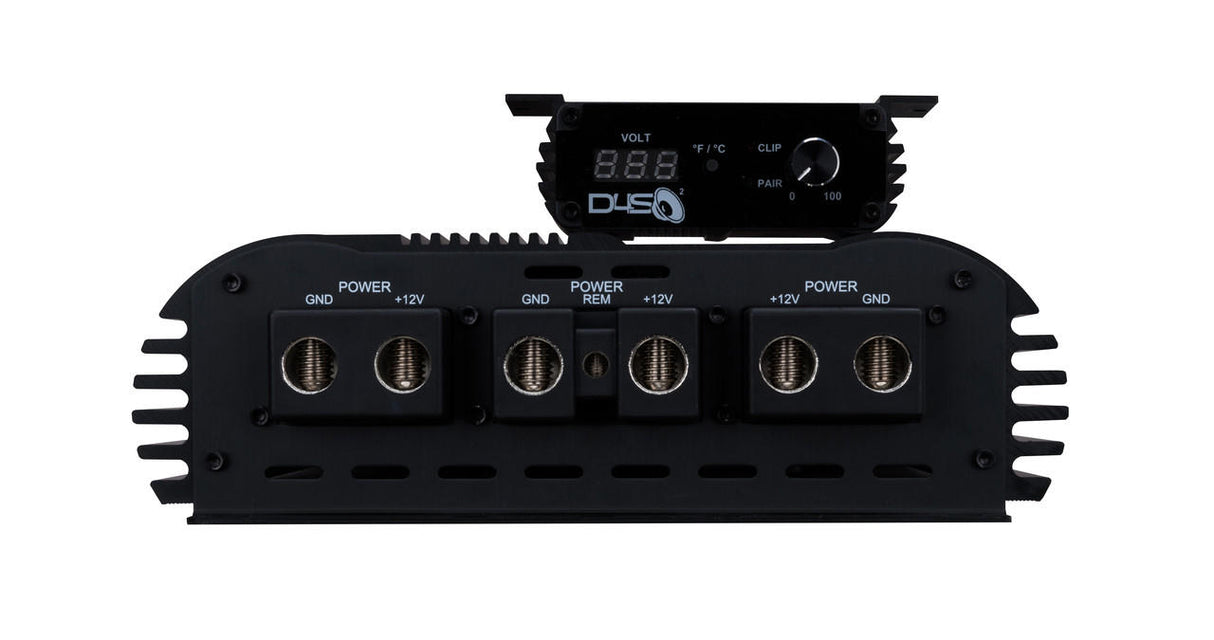

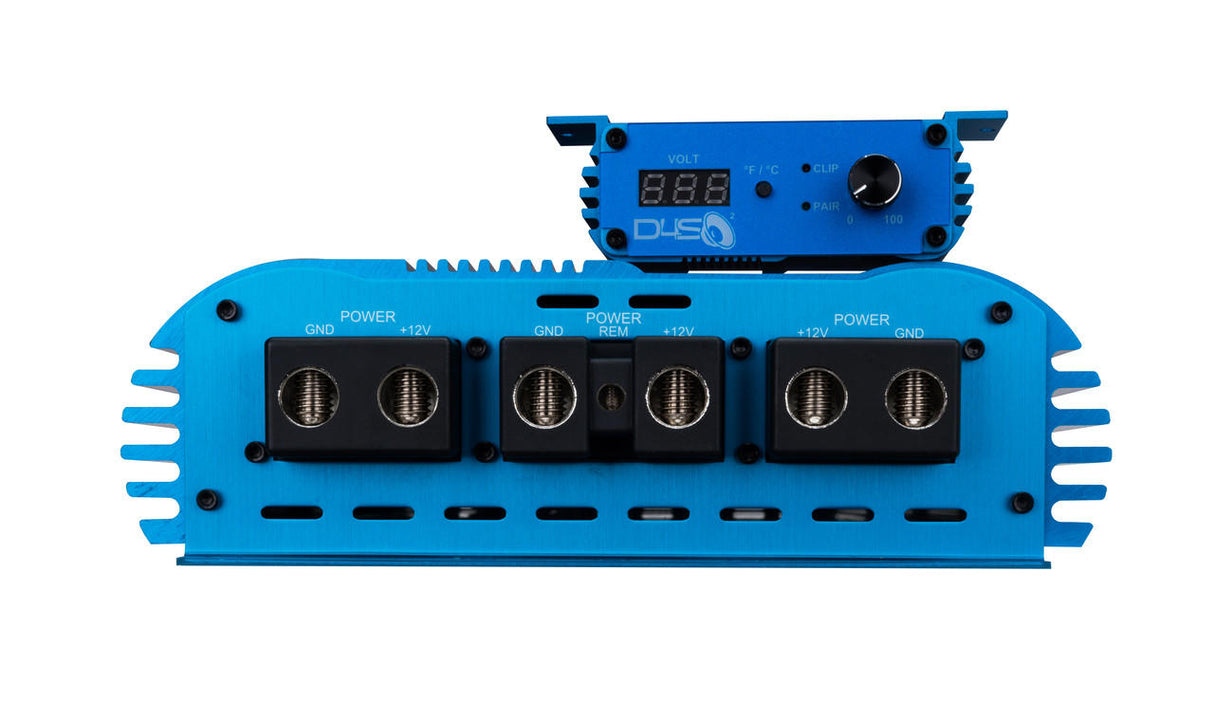

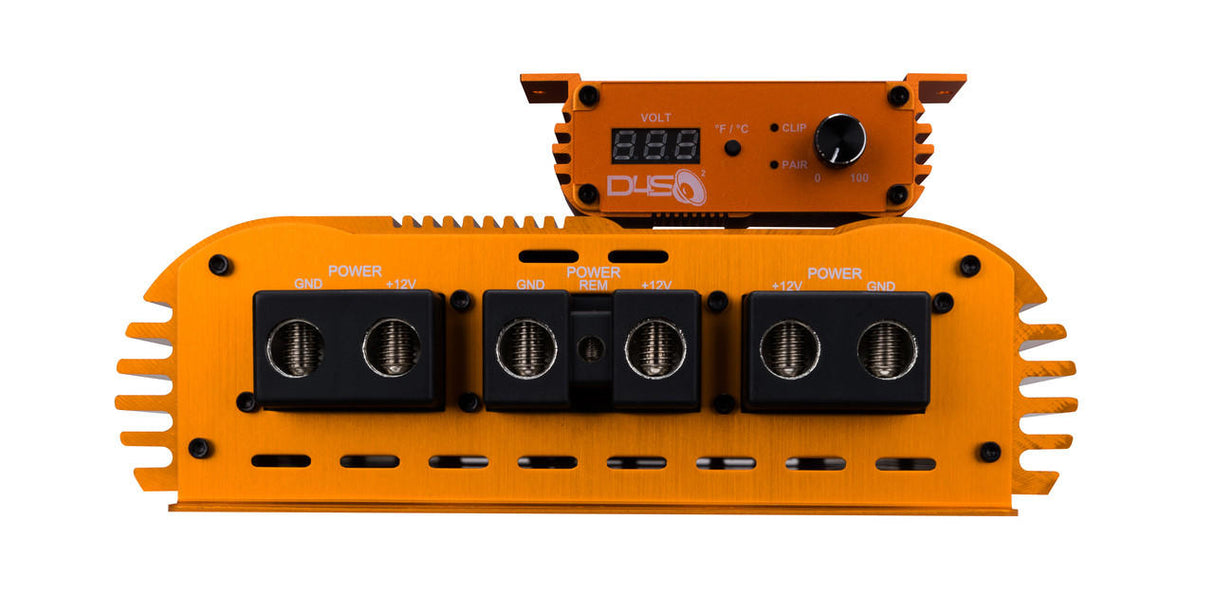

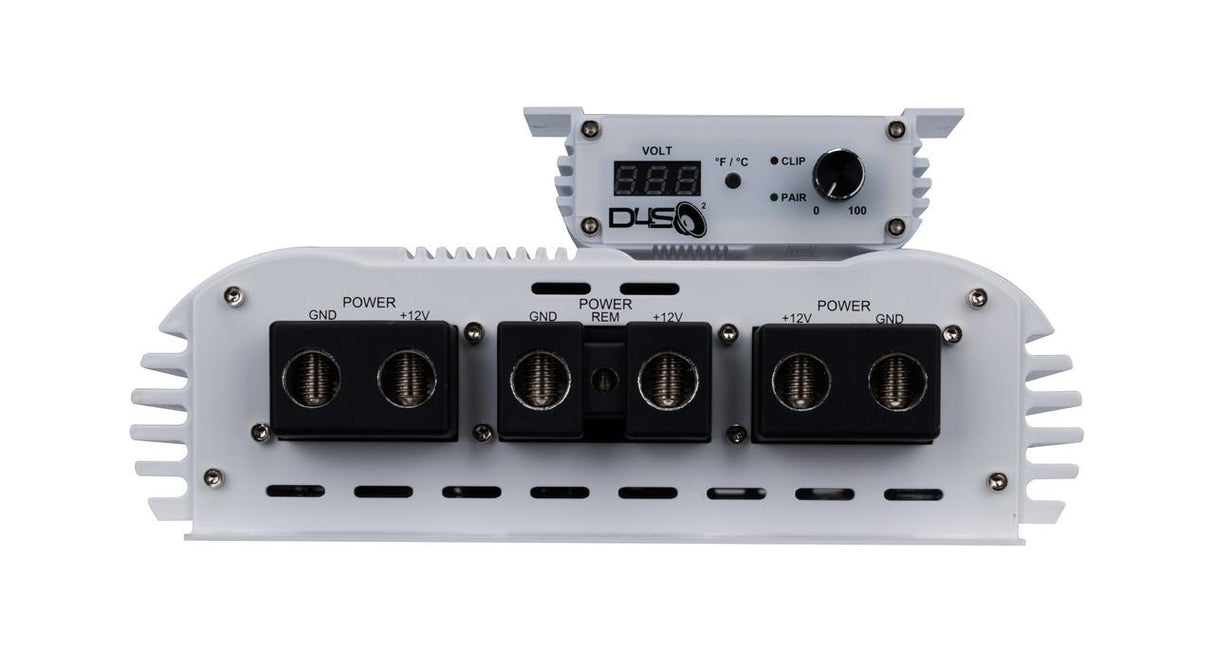

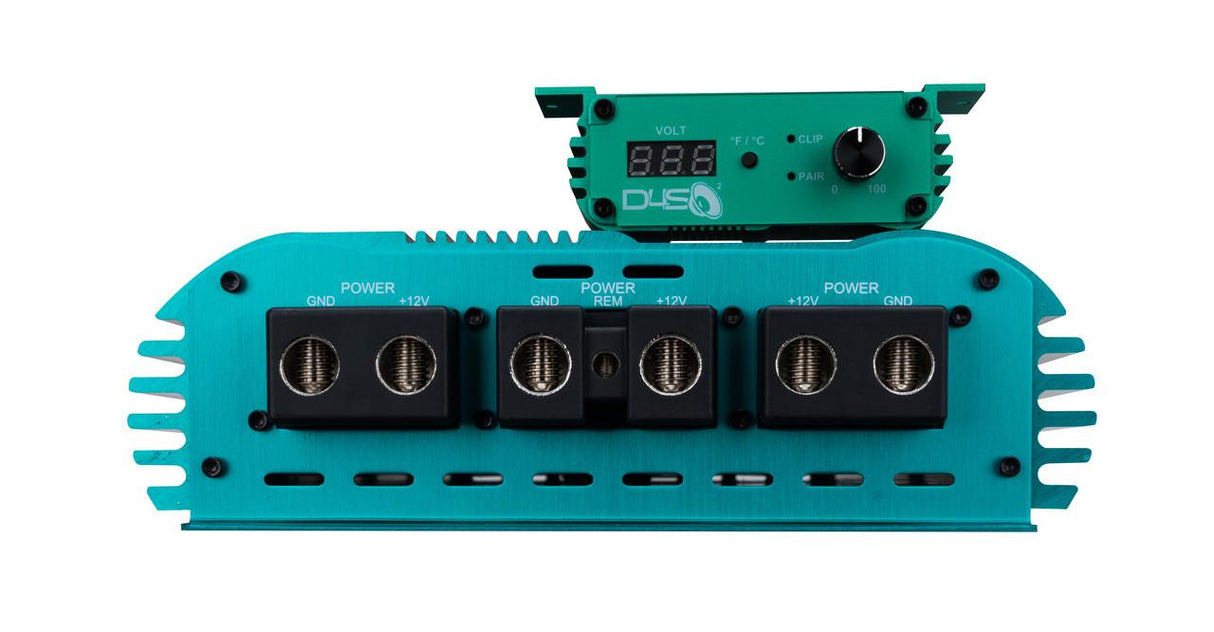

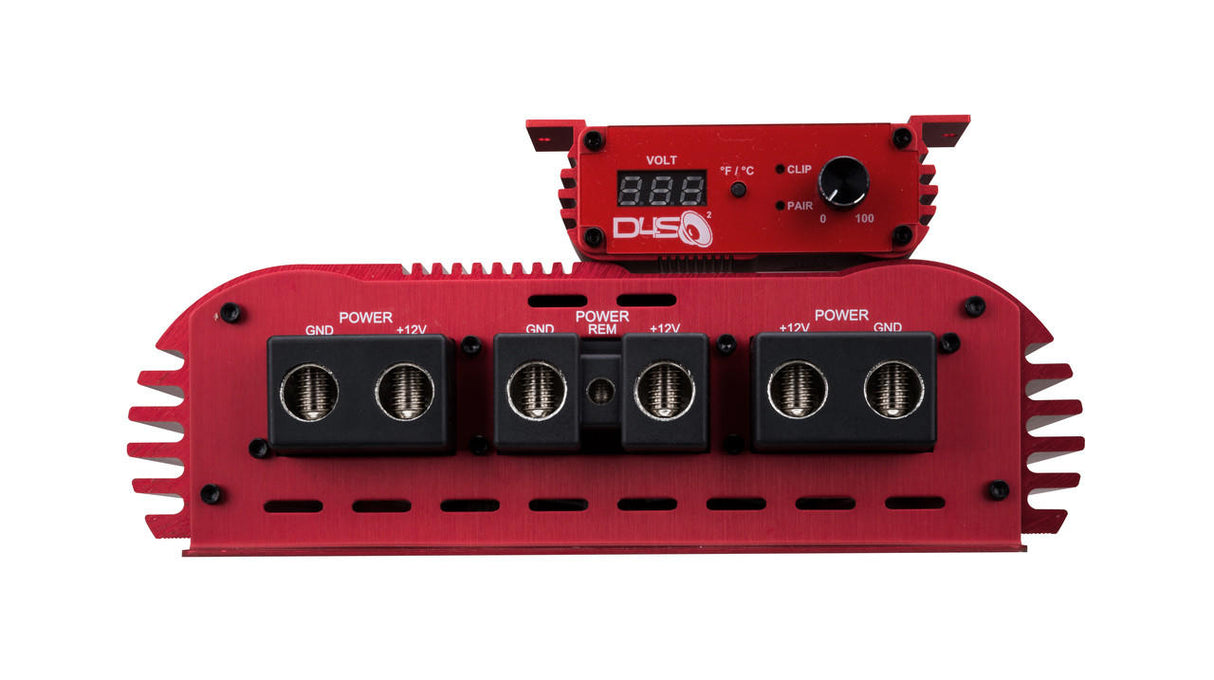

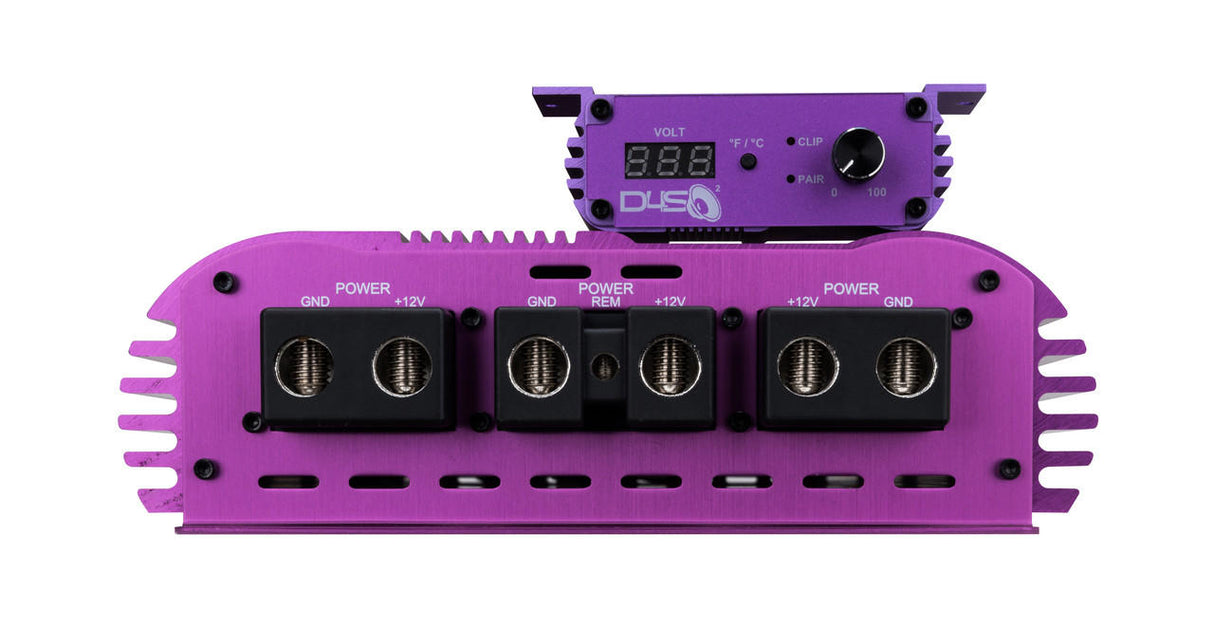

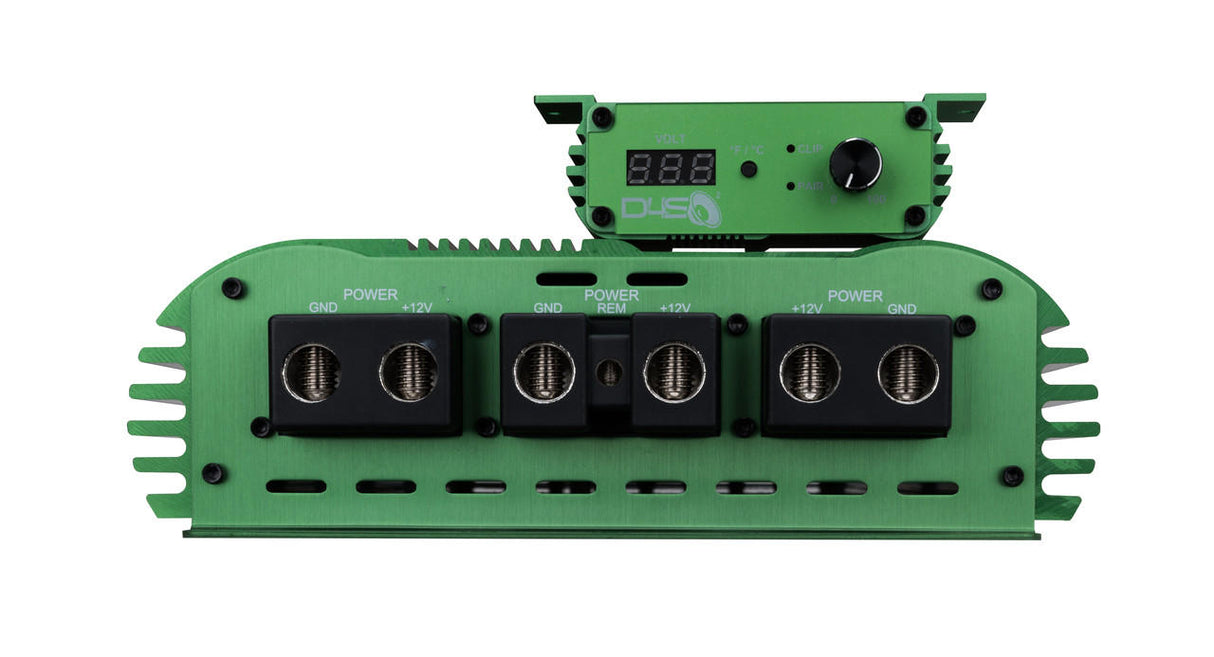

Three 1/0 AWG Power & Ground Inputs

Two 4 AWG Speaker Outputs

Power

Max Rated Output (Strapped to a second JP73): 14,600 Watts

1 Ohm RMS: 7,300W

4 Ohm RMS: 5,600W

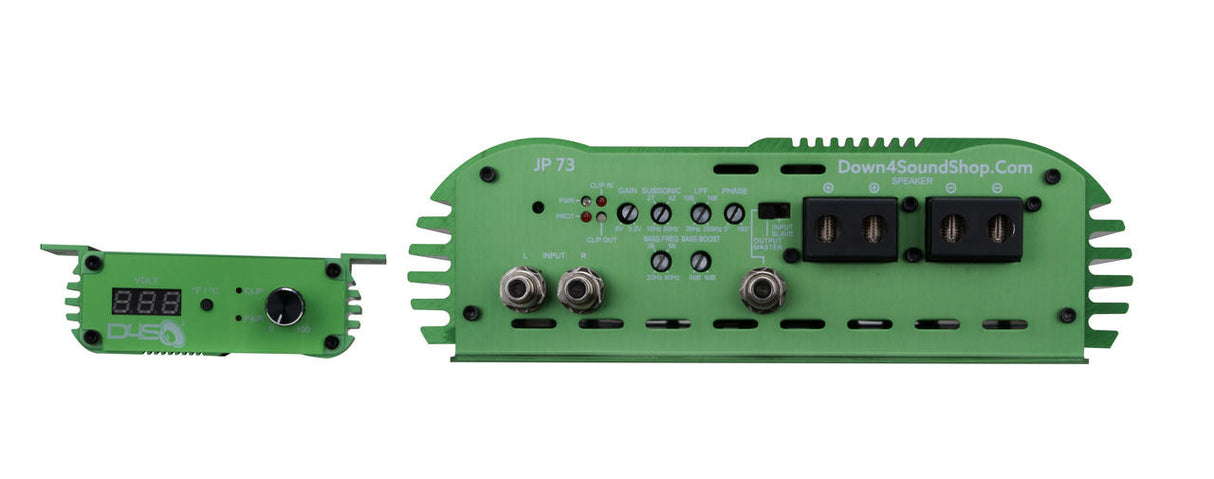

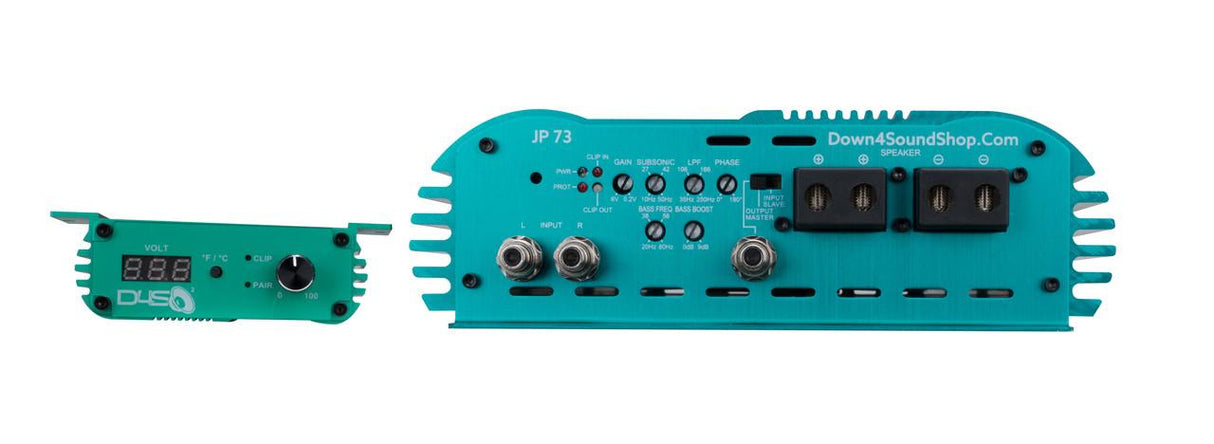

Triple 1/0 power inputs and Tiffany RCA connectors help make the Down4Sound JP73 a formidable bass amp - not to mention its ability to drive over 7K through either of two speaker outputs (both mono). More than a match for your subwoofer system, the amp includes oversized speaker terminals that are capable of taking up to a 4 gauge wire. Want even more power? Strap another JP73 together for a single 14,600-watt power source!

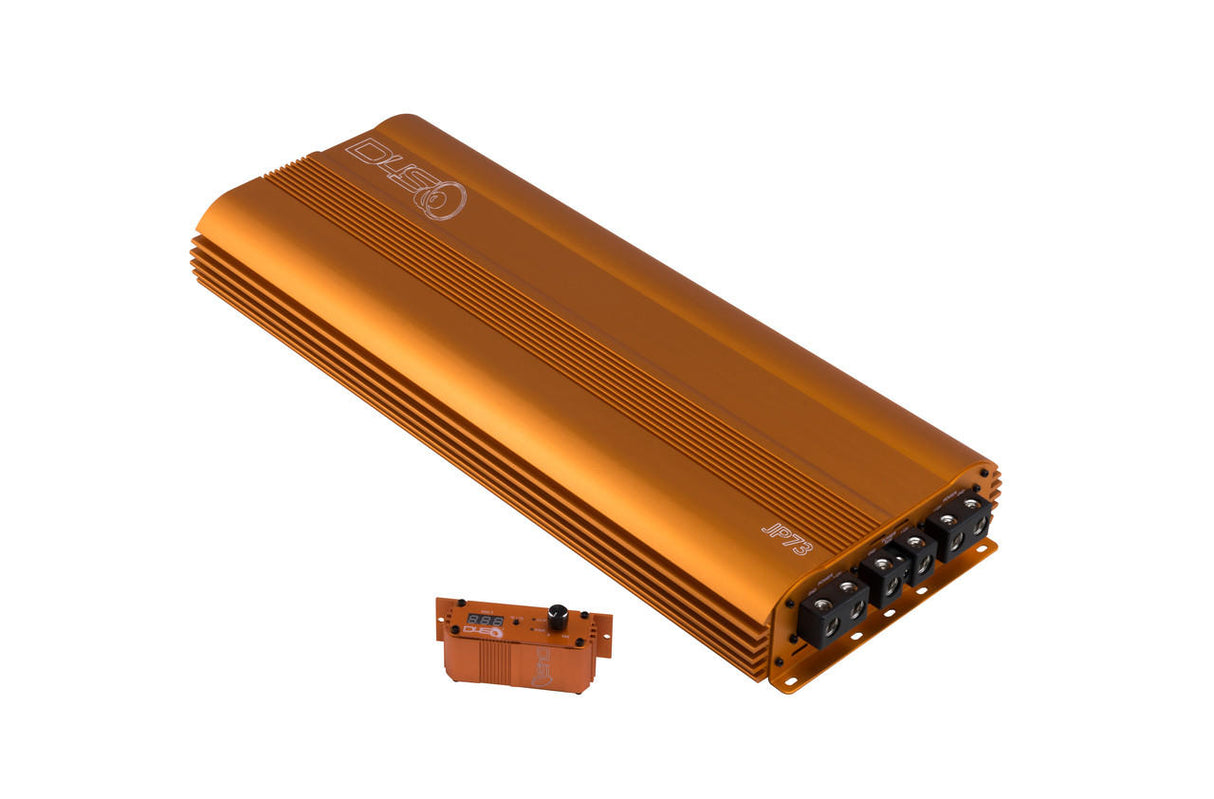

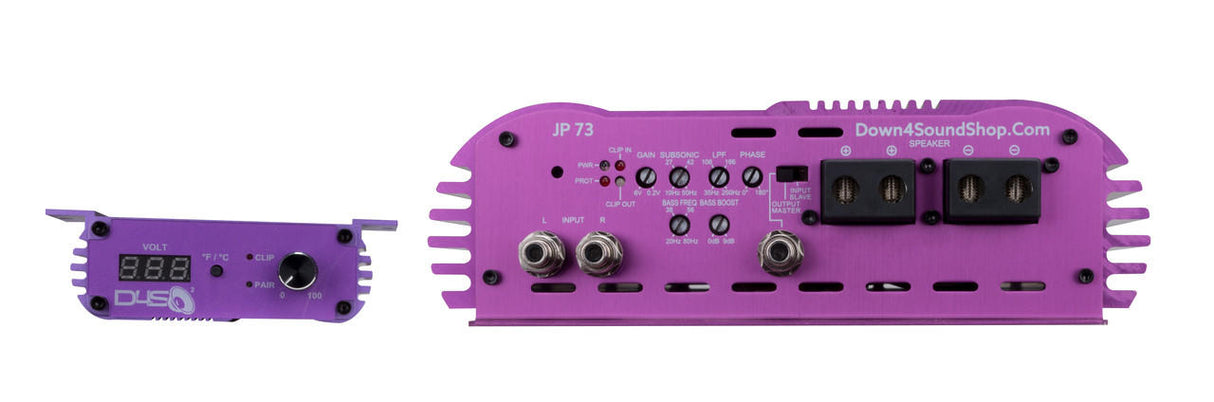

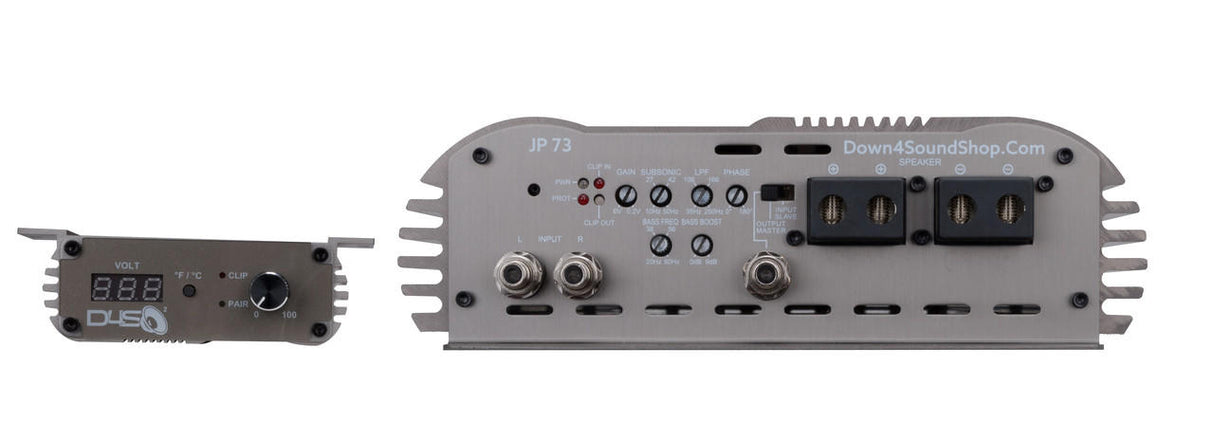

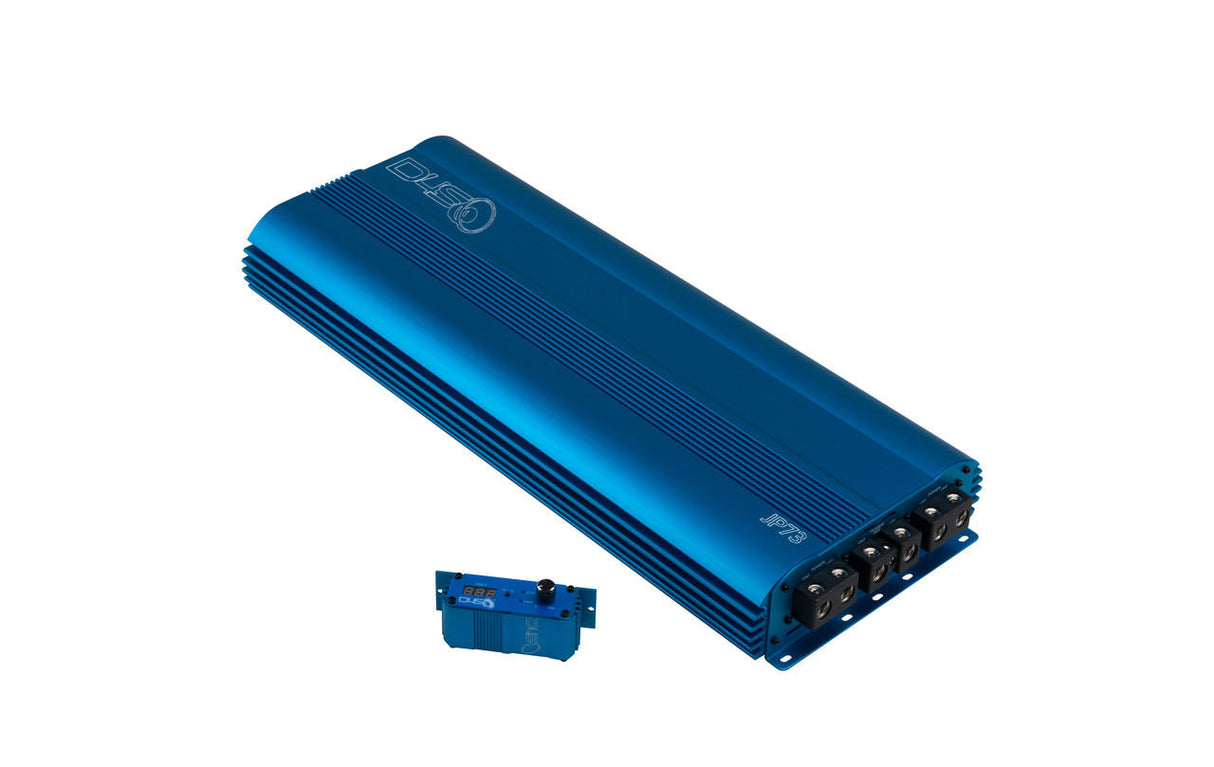

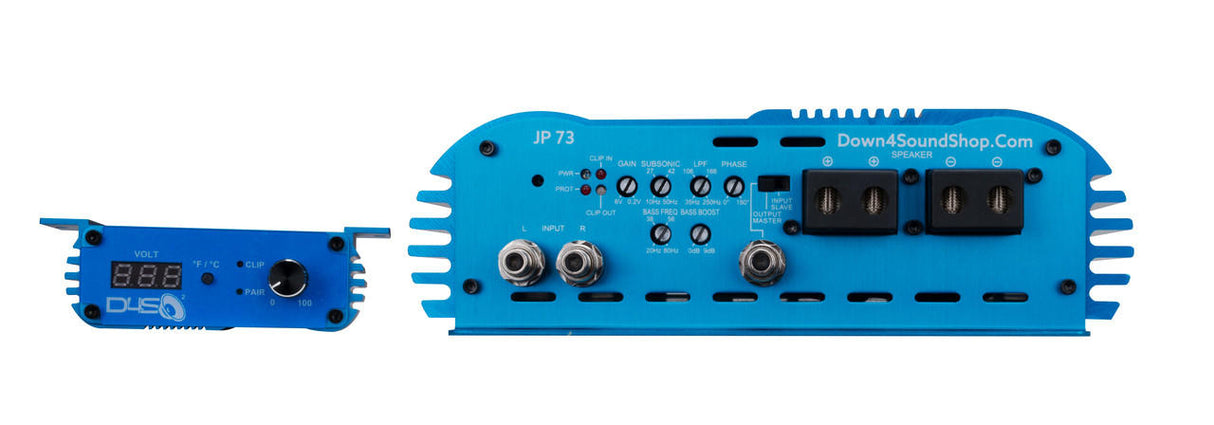

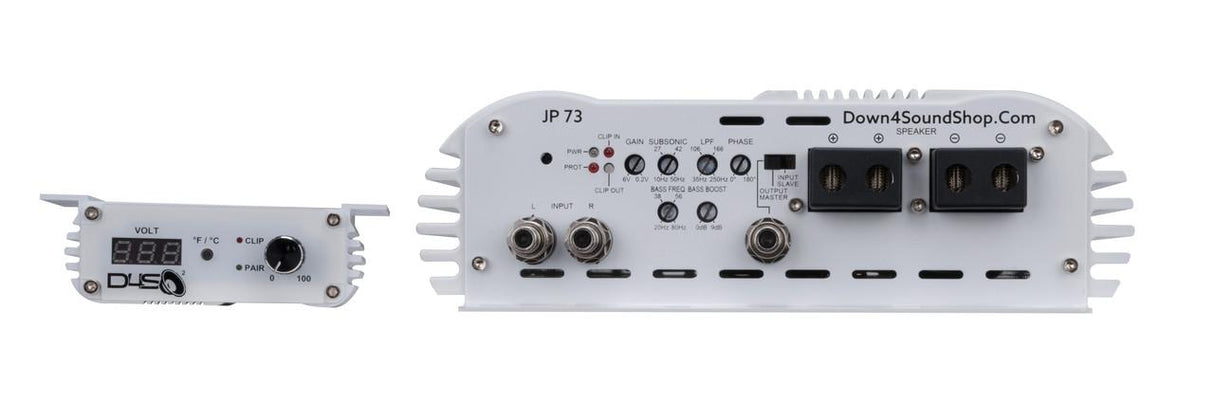

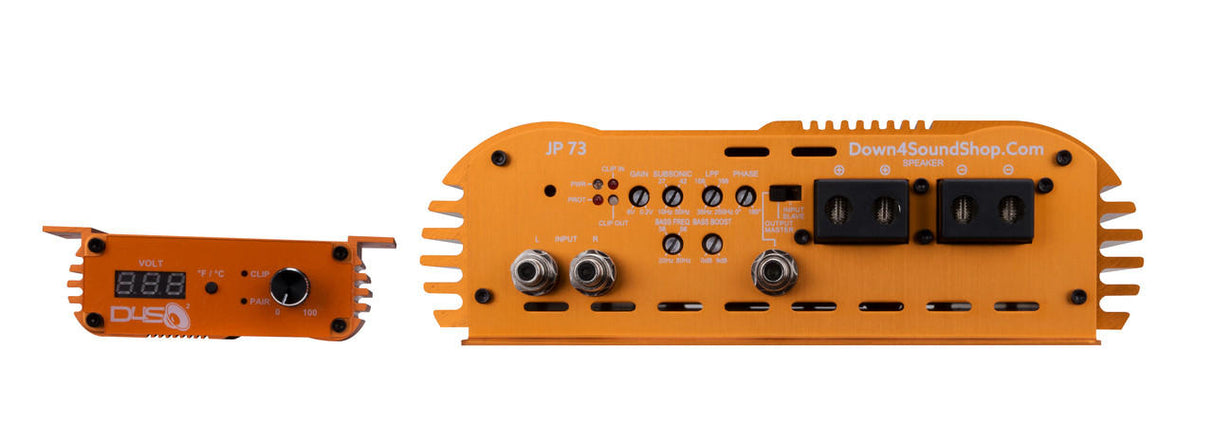

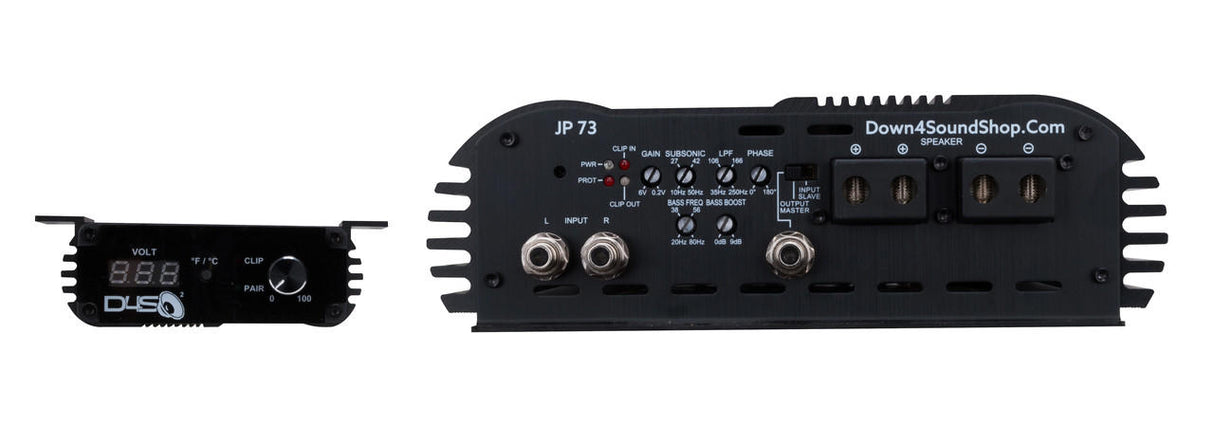

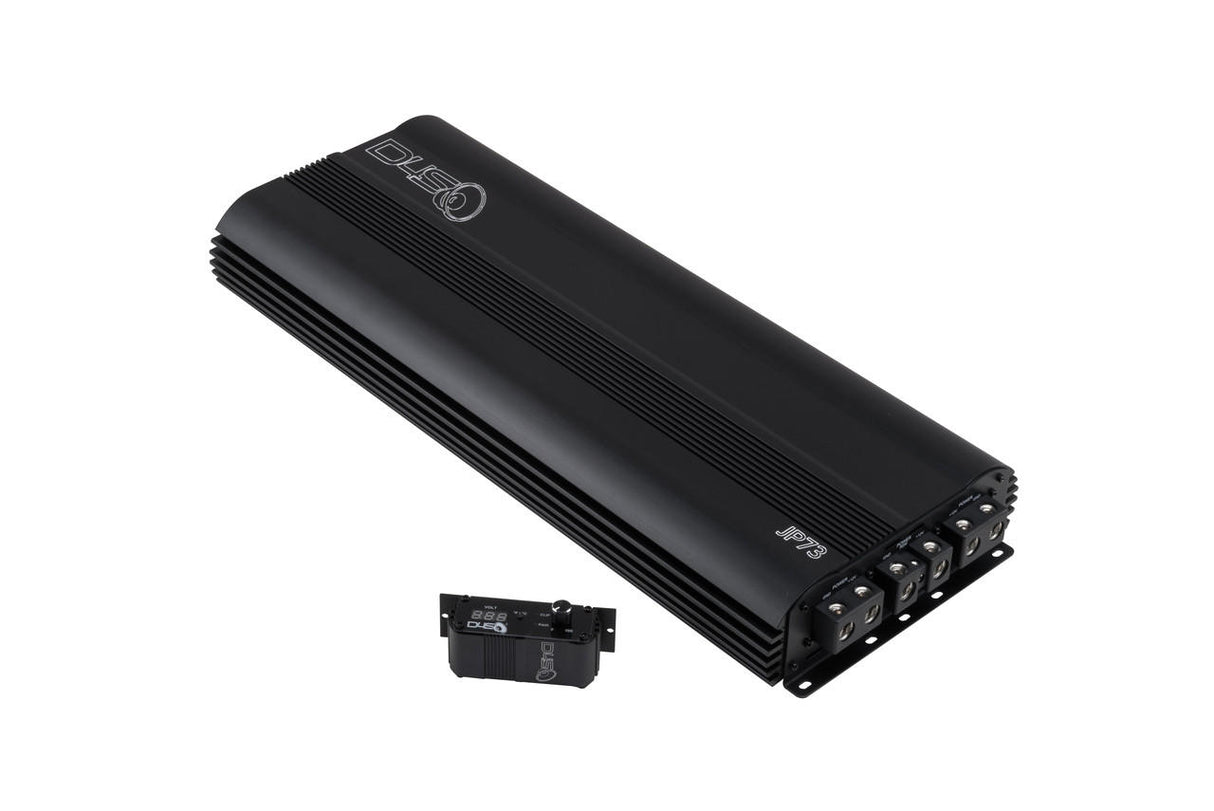

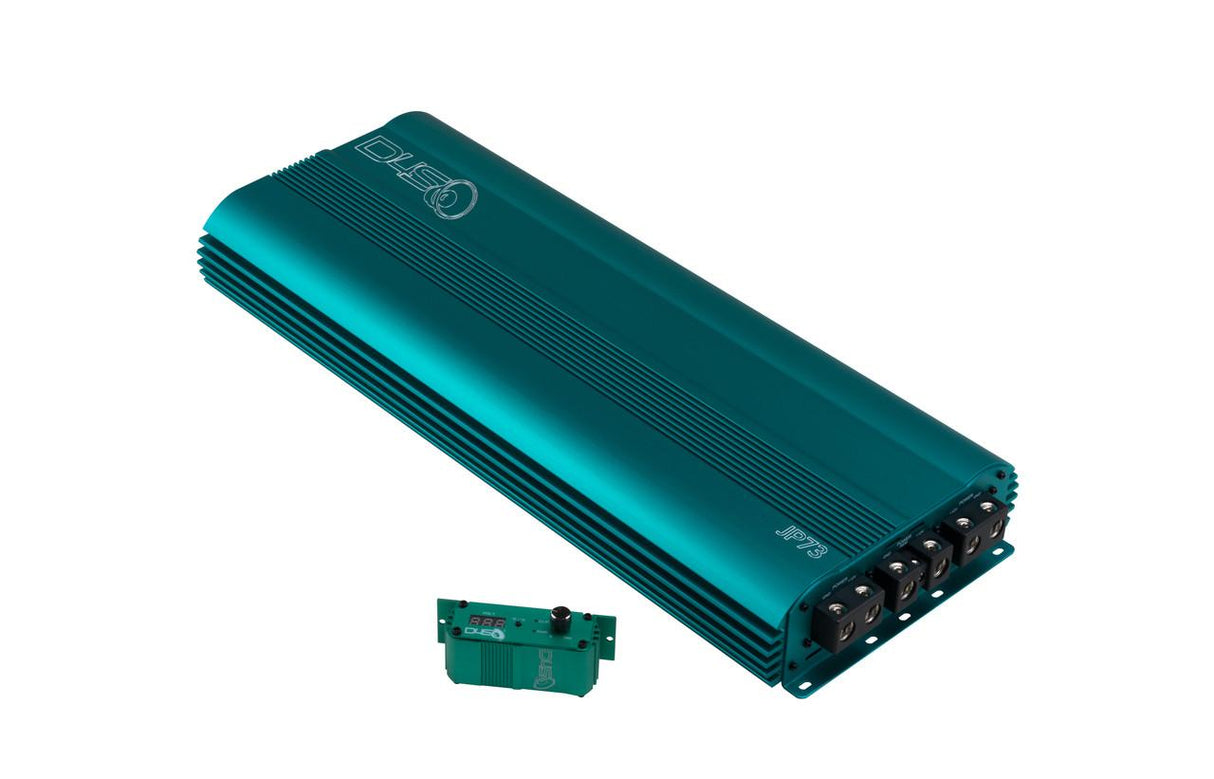

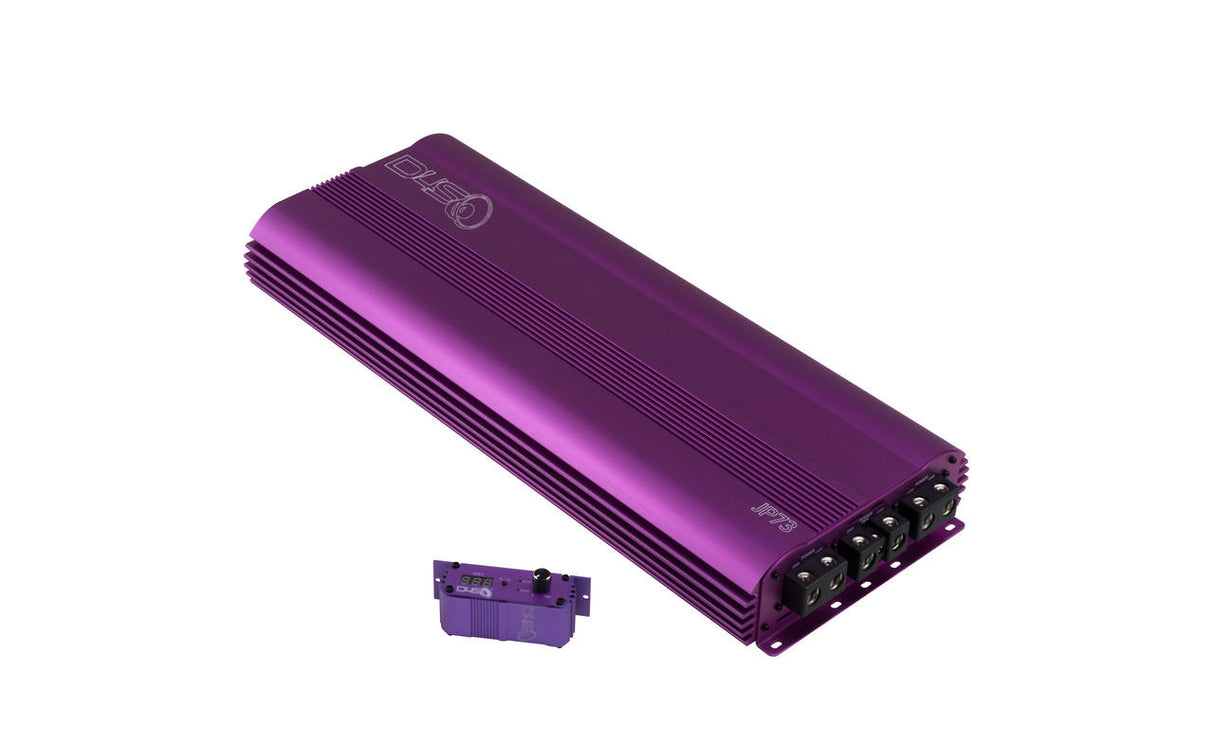

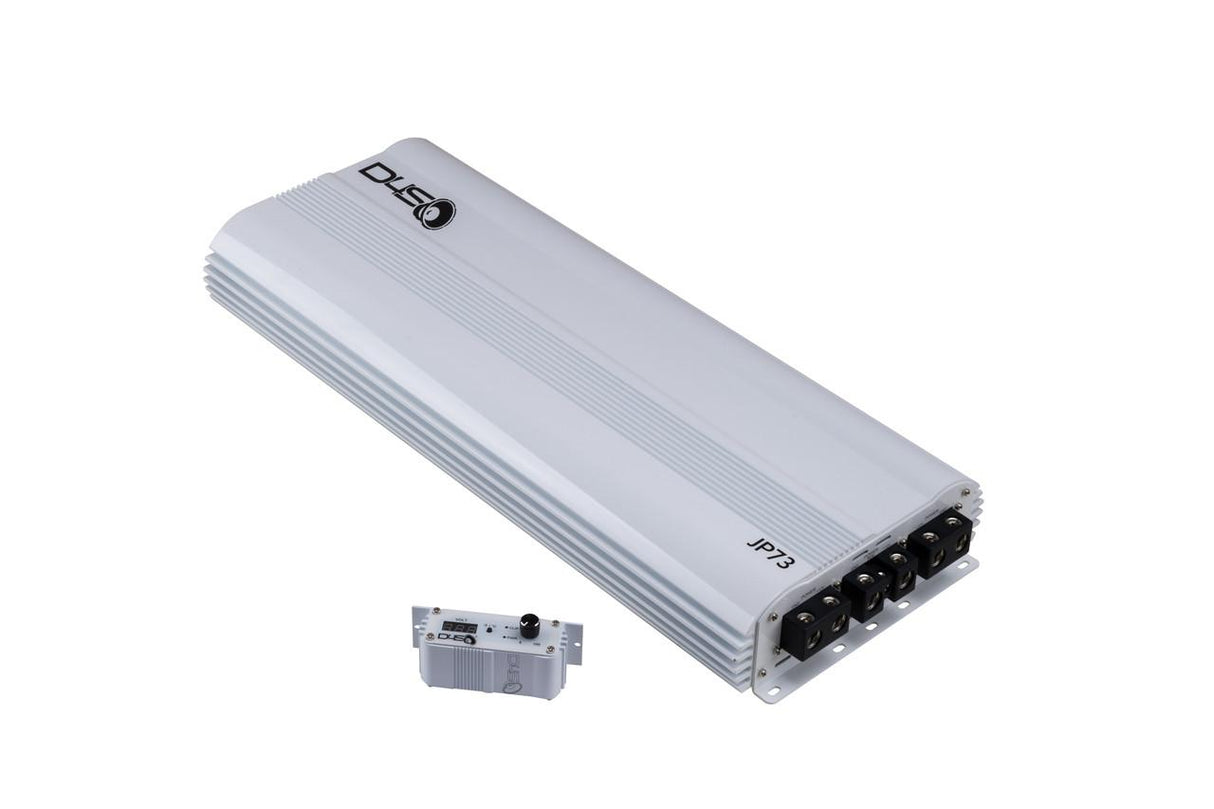

Available in nine brilliant colors and equipped with variable phase, subsonic, and lowpass acoustic controls, this powerhouse is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers.

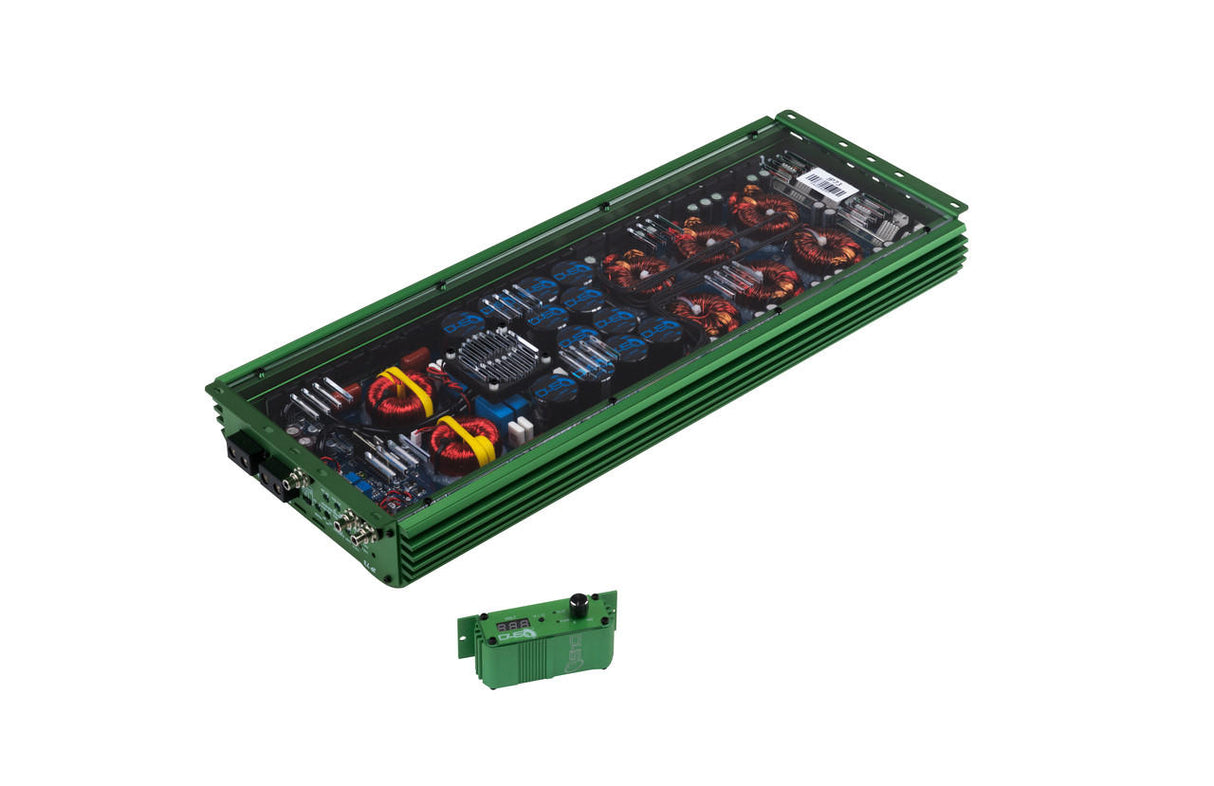

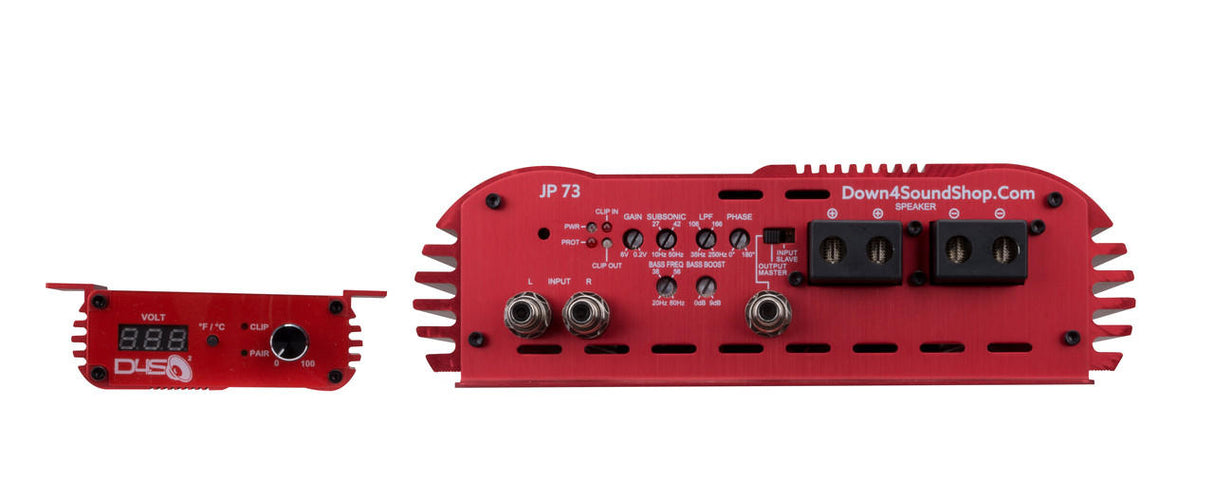

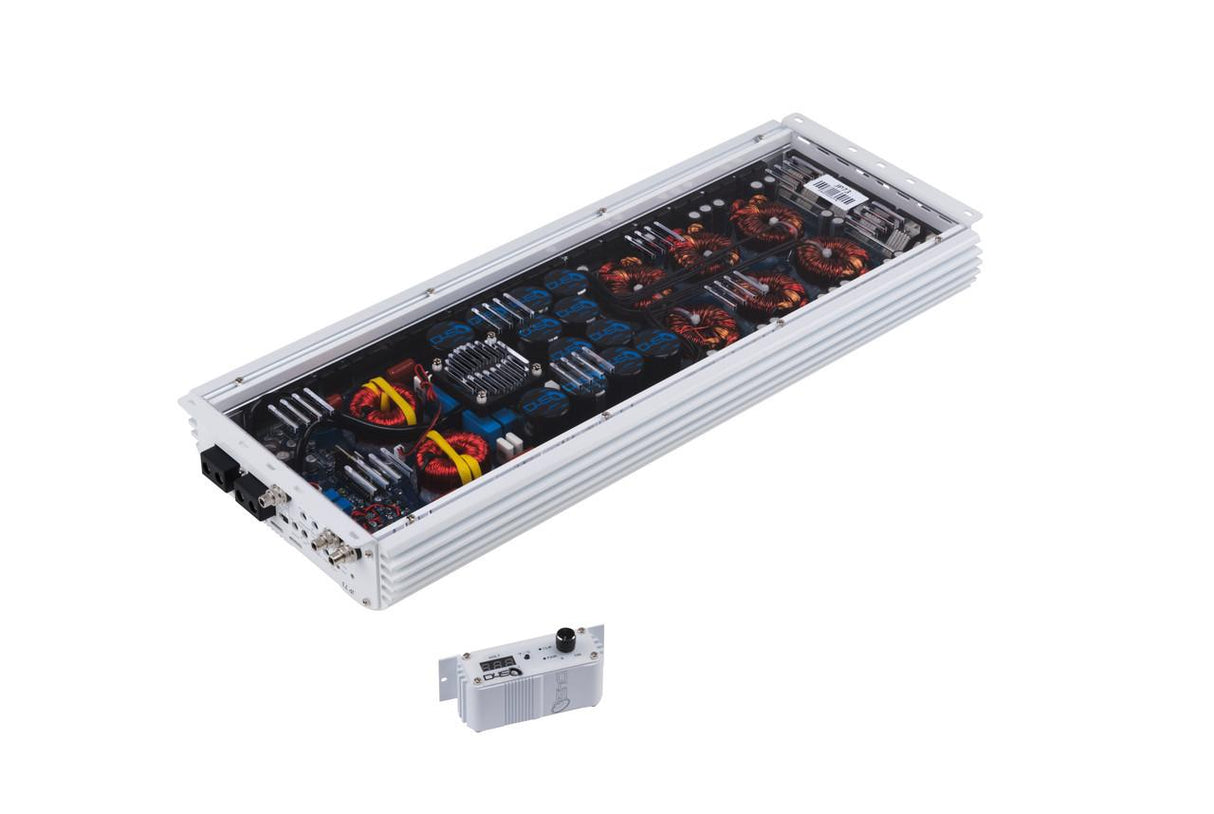

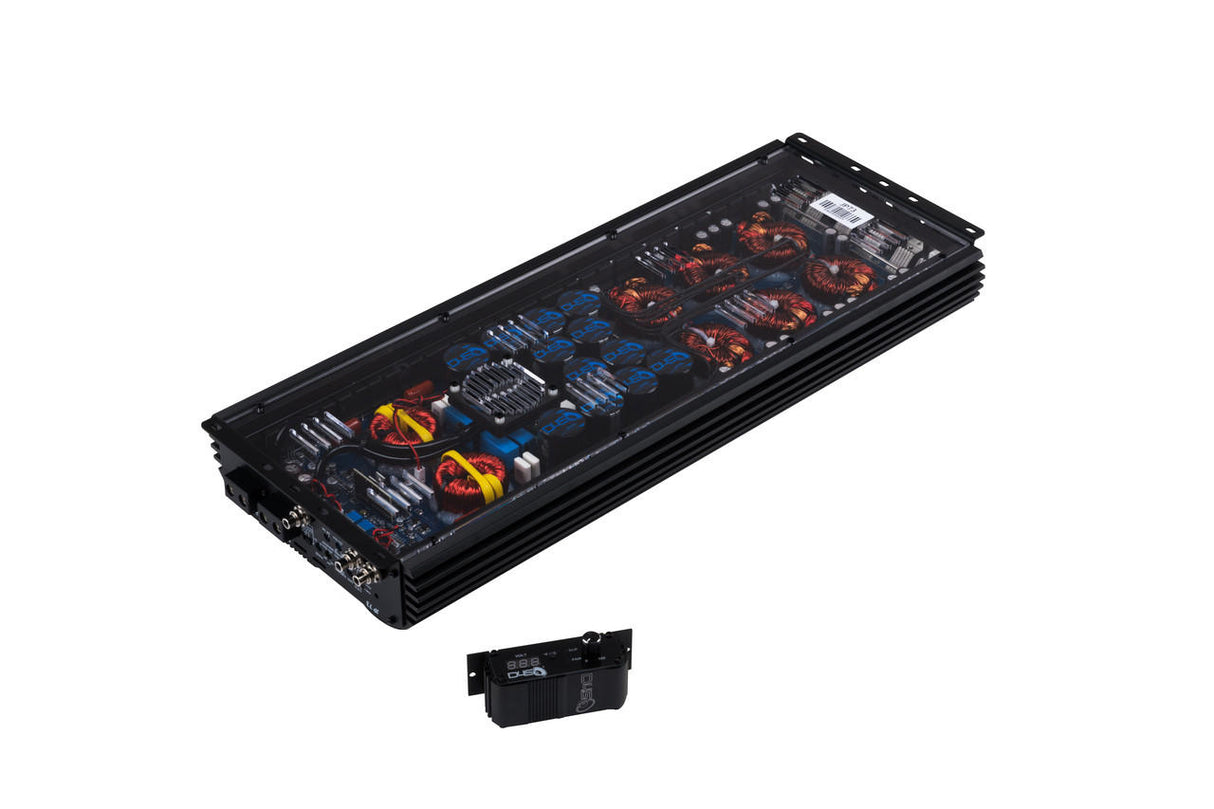

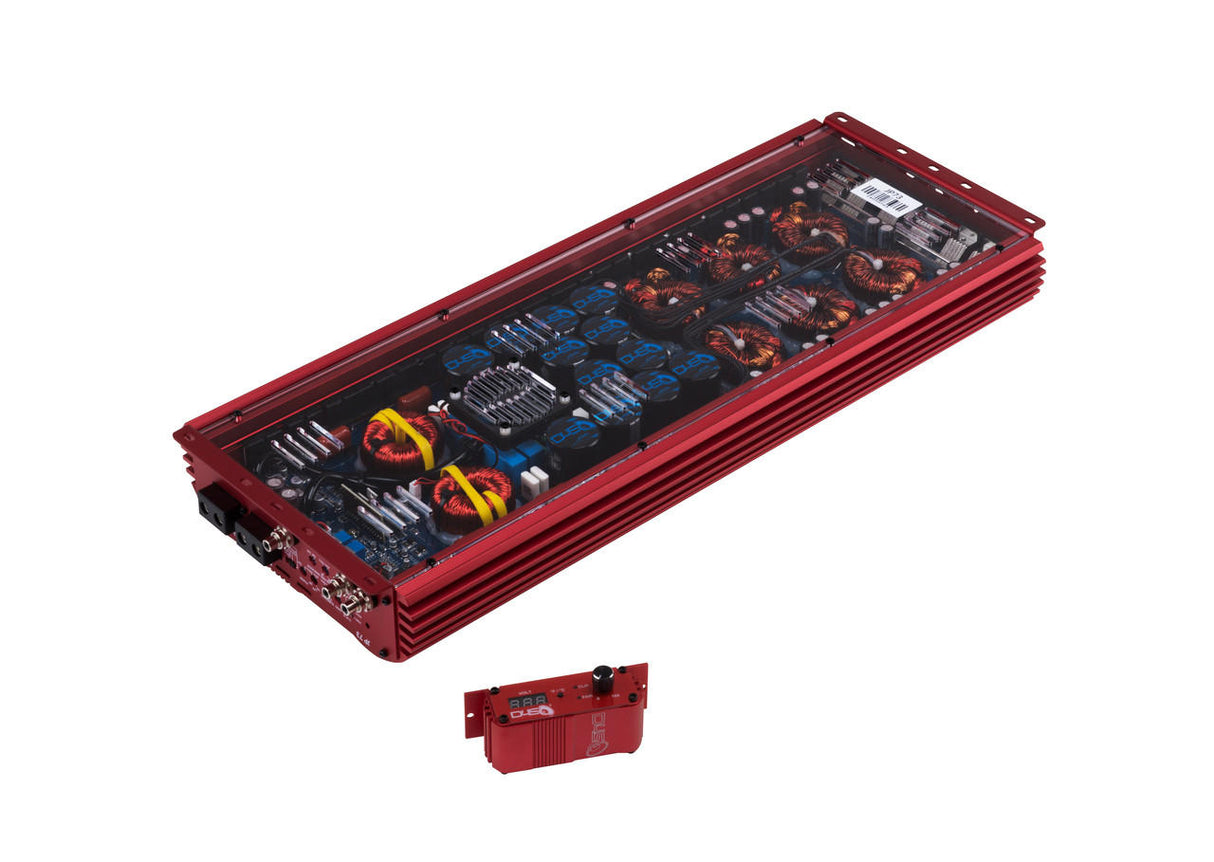

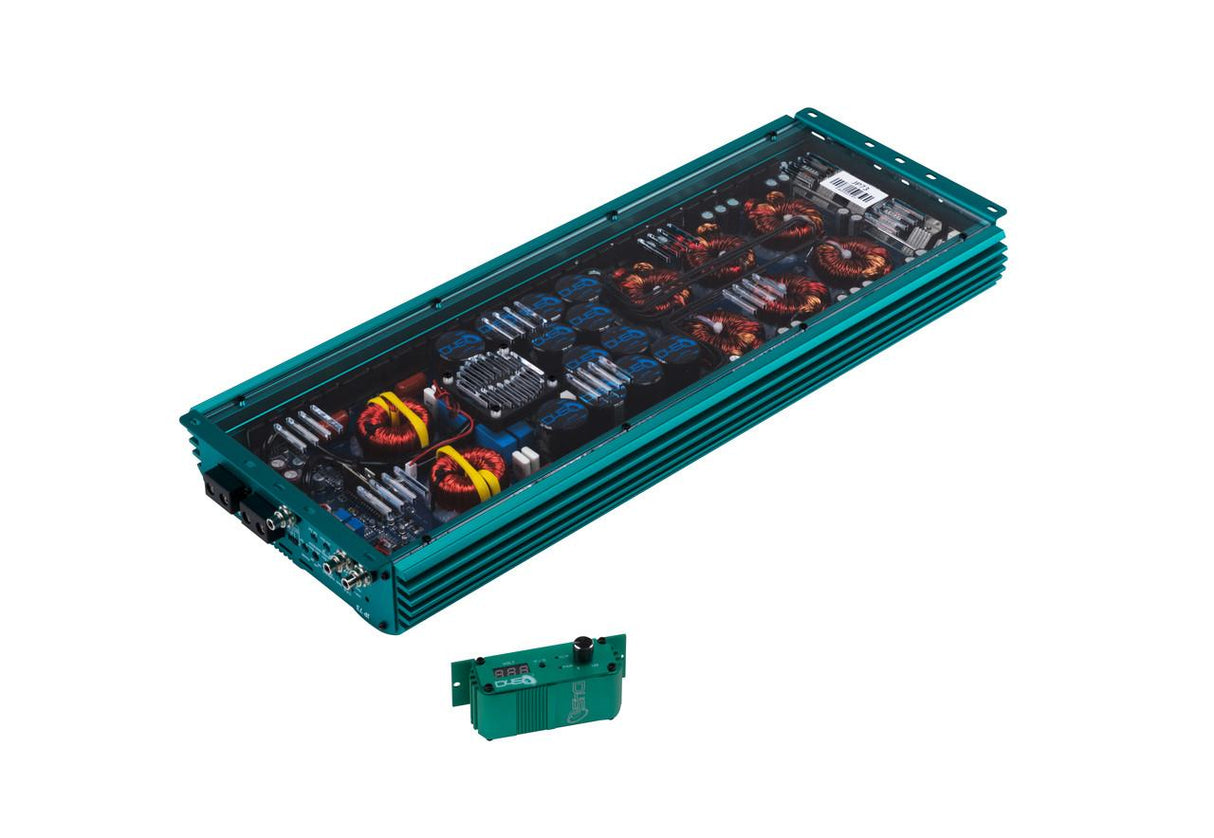

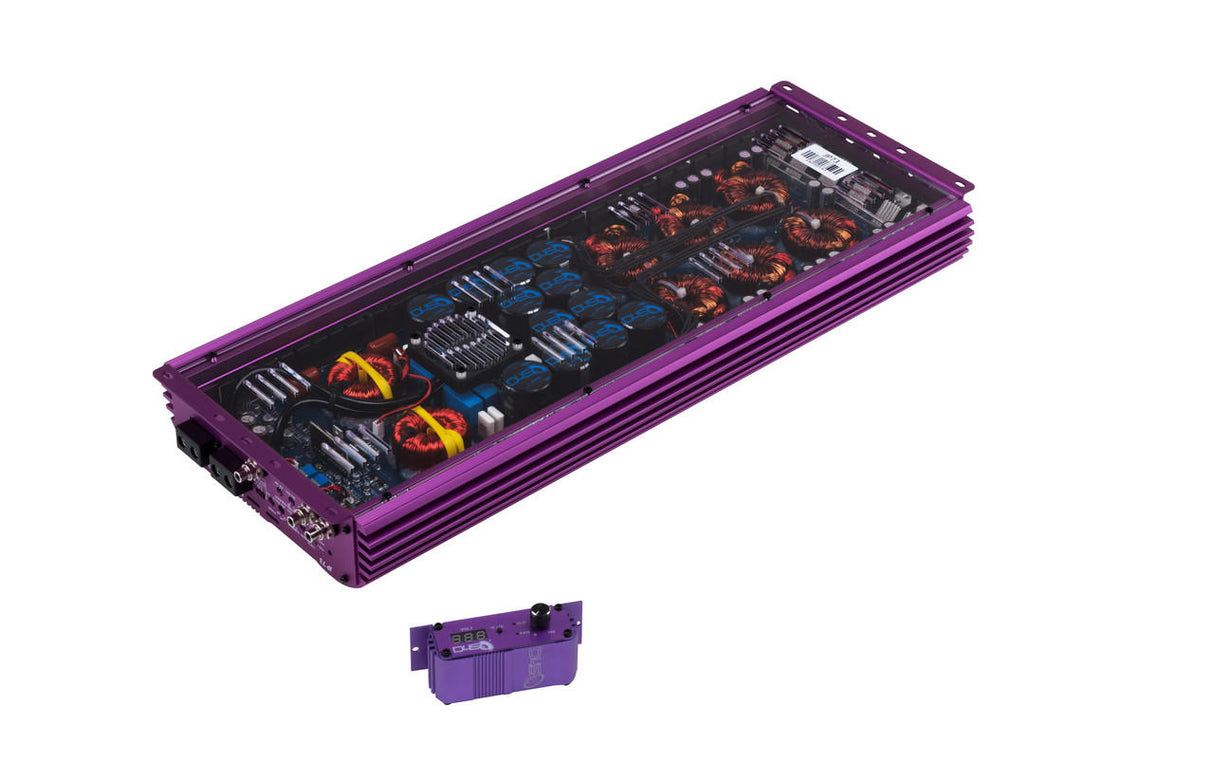

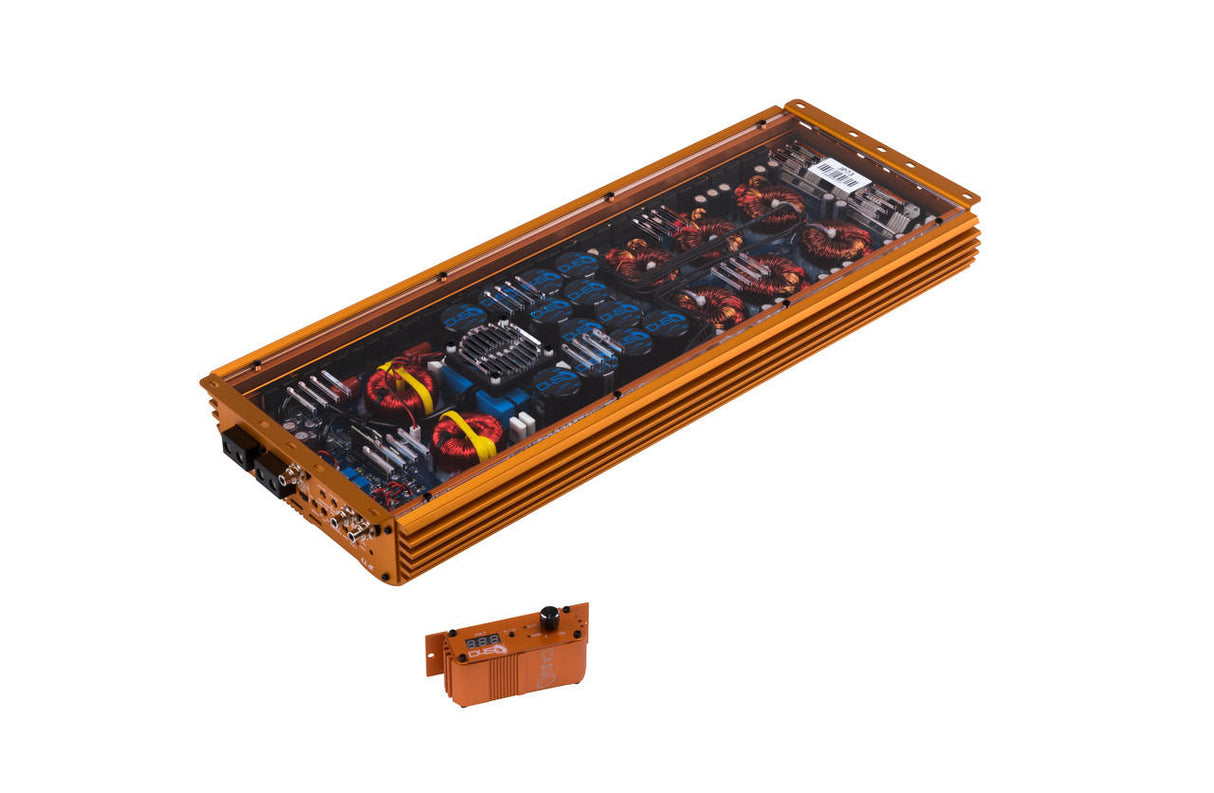

The included Bluetooth remote is packed with information like amp temperature, battery voltage, temperature, and clipping status. The Plexi base lets you see every detail of the board, so flip the amp over to see the heart of the Korean Class D design!

SPECIFICATIONS

Frequency Response: 14 - 269Hz

Variable High Pass Filter: 35 - 250Hz

Variable Low Pass Filter: 10 - 50Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9dB

Variable Phase Control: 0 - 180°

Signal to Noise: <94dB

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 12 to 15.5 Volts

Recommended Fusing: 800 Amps

Dimensions: 22.44” Long x 9.37” Wide x 2.71” High
