Down4Sound JP8 V1.5 Sub Amp

Mono Class D Amplifier

On Board Power, Protection & Clip Indicators

Strappable Design

Variable Low-Pass, Bass Boost & Subsonic Filters

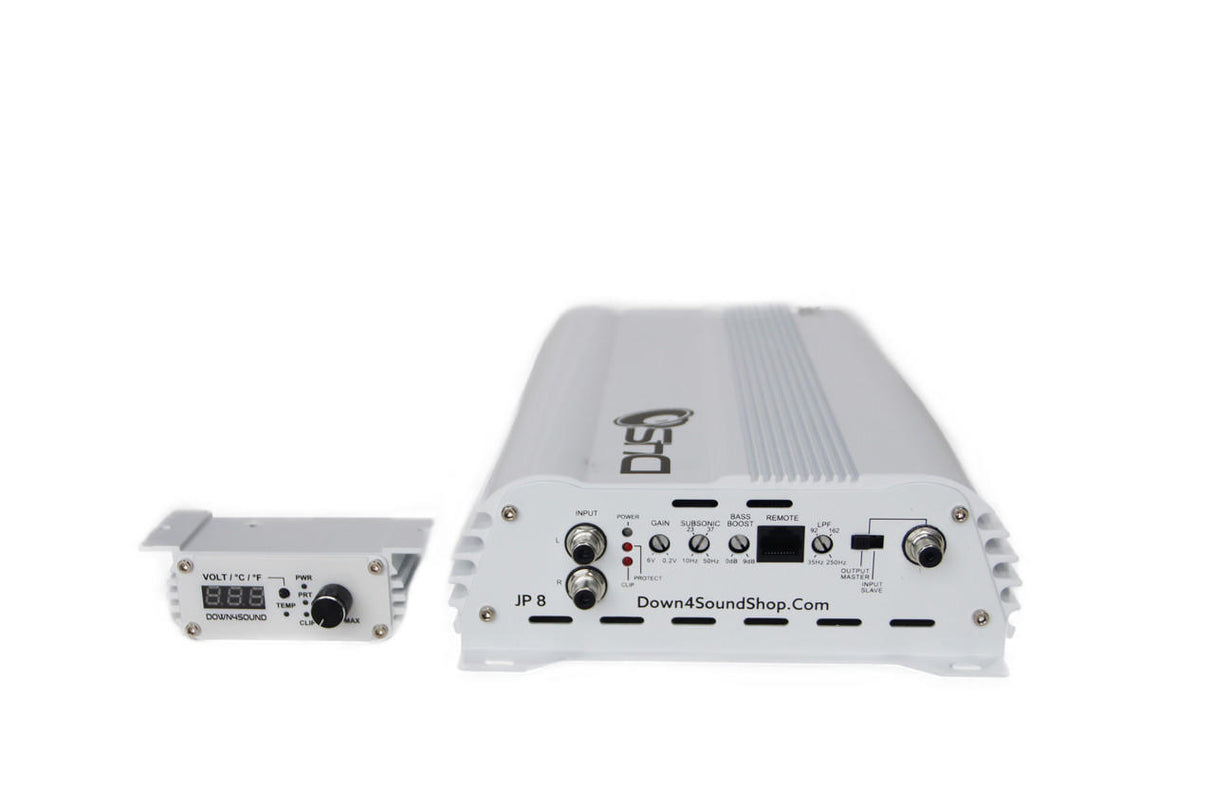

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

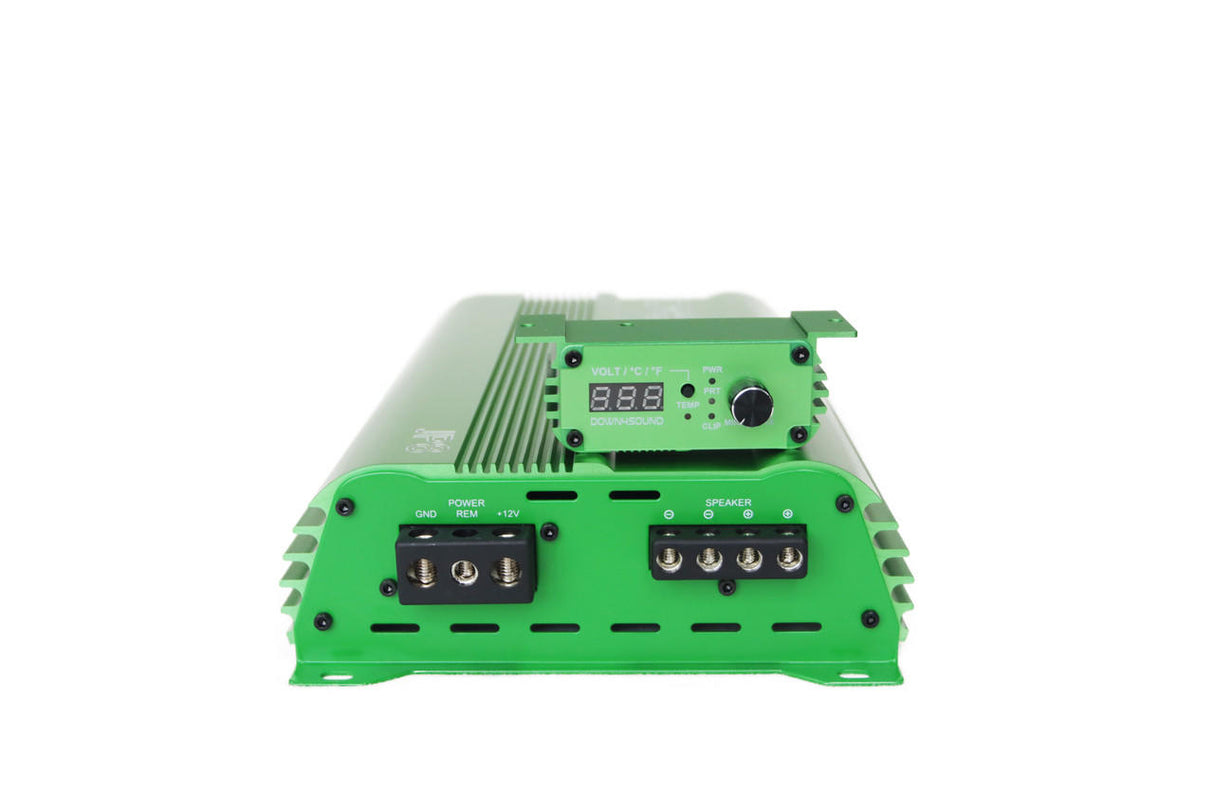

4 AWG Power & Ground Inputs

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)

Power

Max Rated Output (Strapped to a second JP8 V1.5): 2,300 Watts

1 Ohm RMS: 850W

2 Ohm RMS: 650W

4 Ohm RMS: 490W

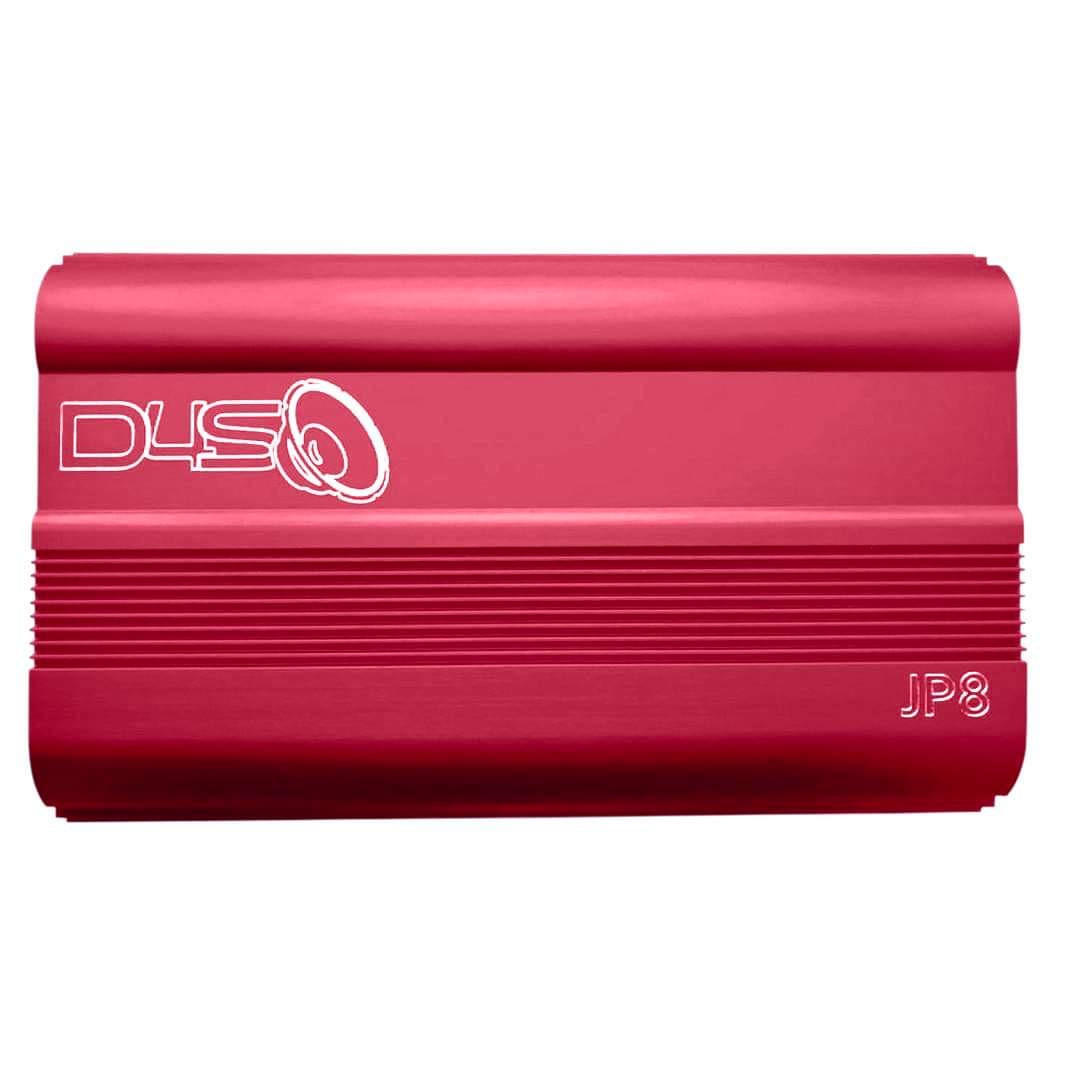

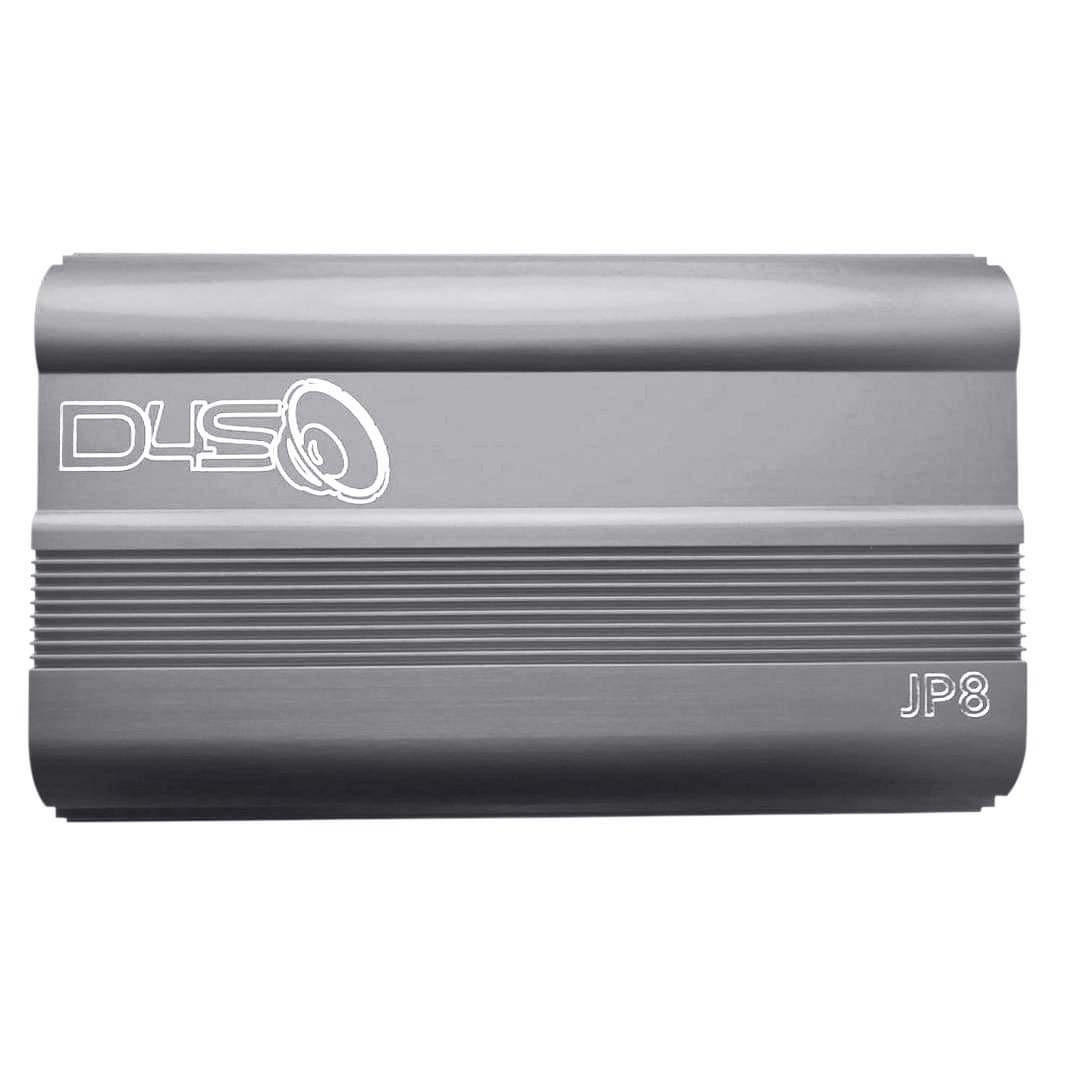

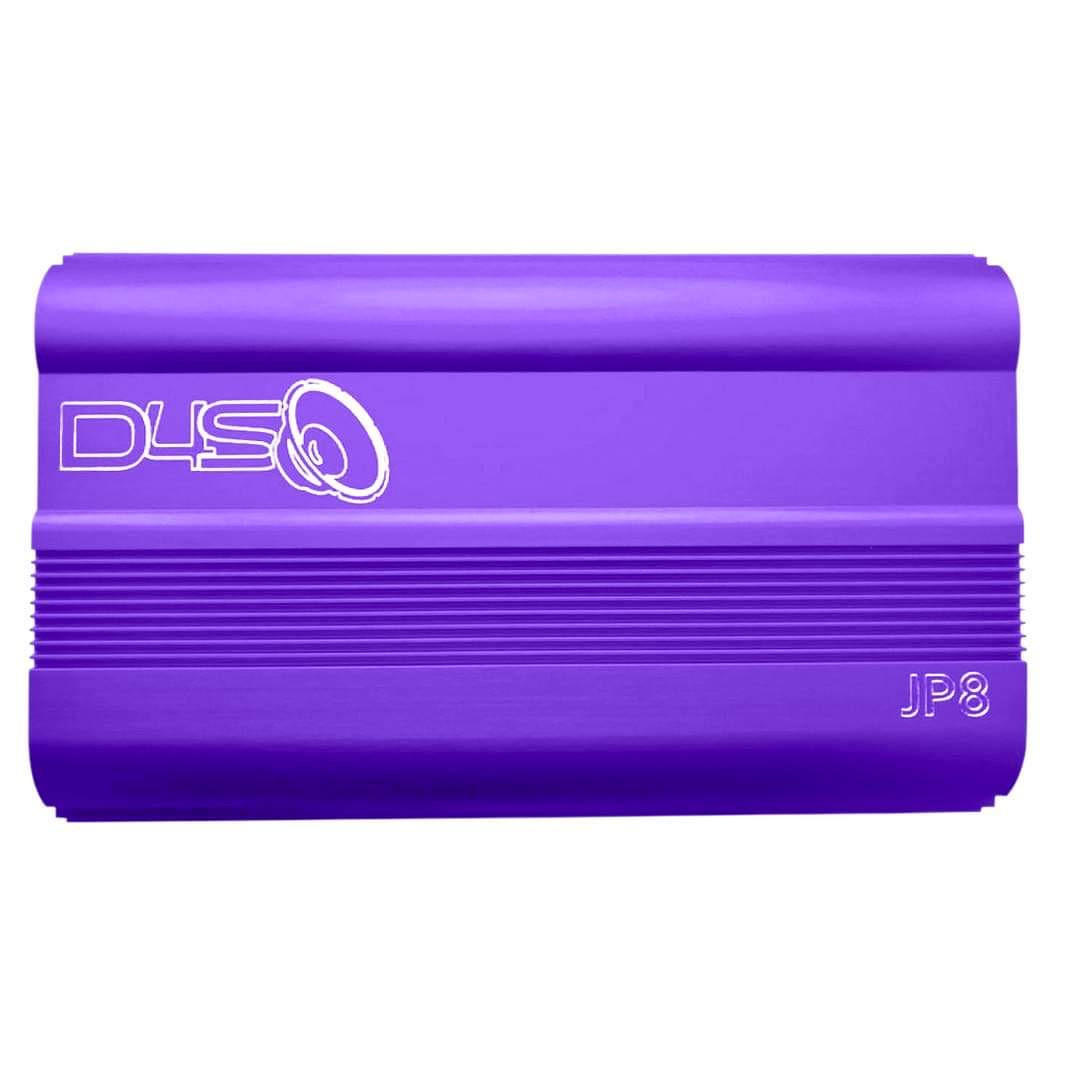

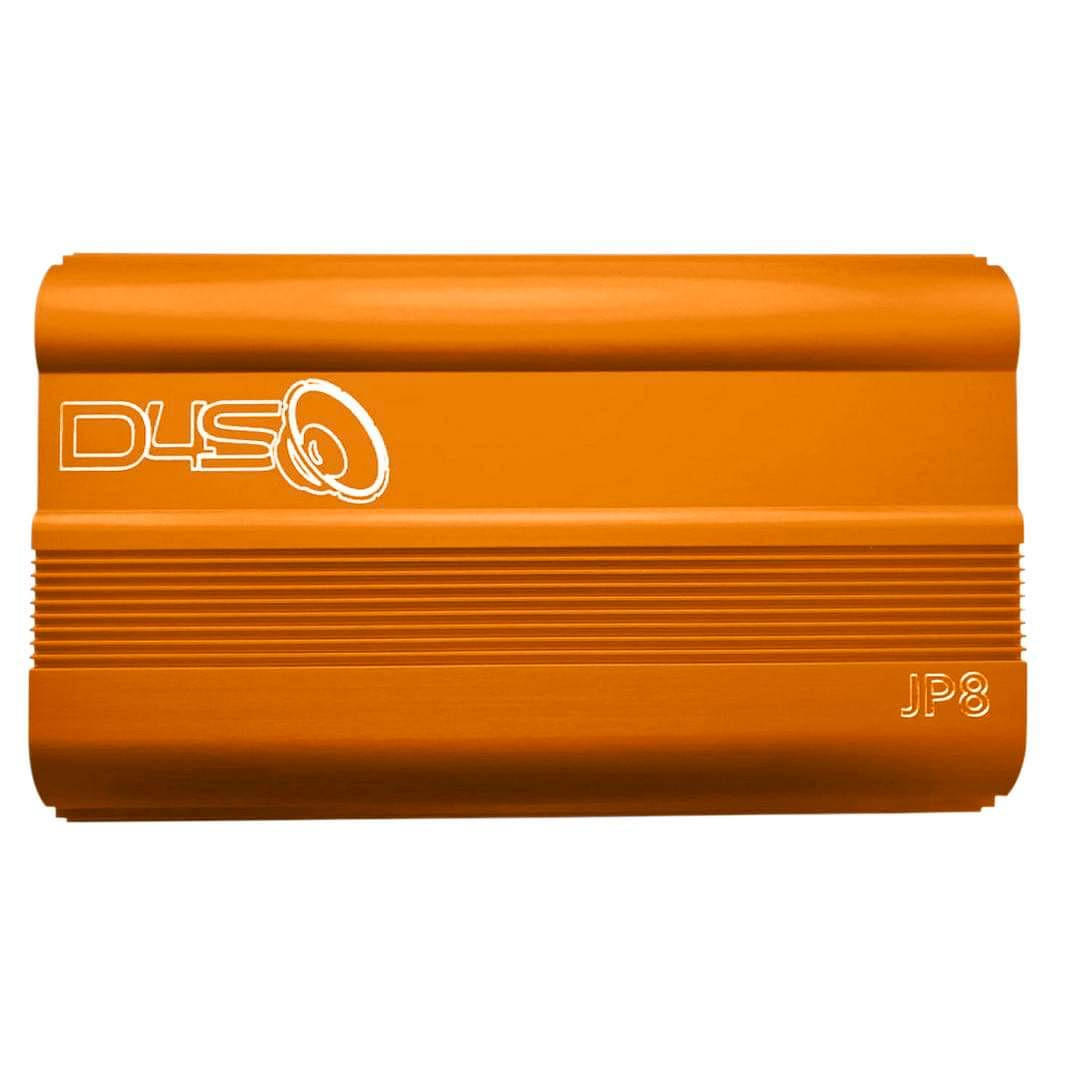

Available in twelve different colors, the Down4Sound JP8 V1.5 is a powerful, flexible Class D amplifier. Equipped with a 4 AWG power and ground, the amp comes with extensive acoustic controls to craft your bass exactly the way you want it. Strap another JP8 V1.5 together for a single 2,300-watt bass machine!

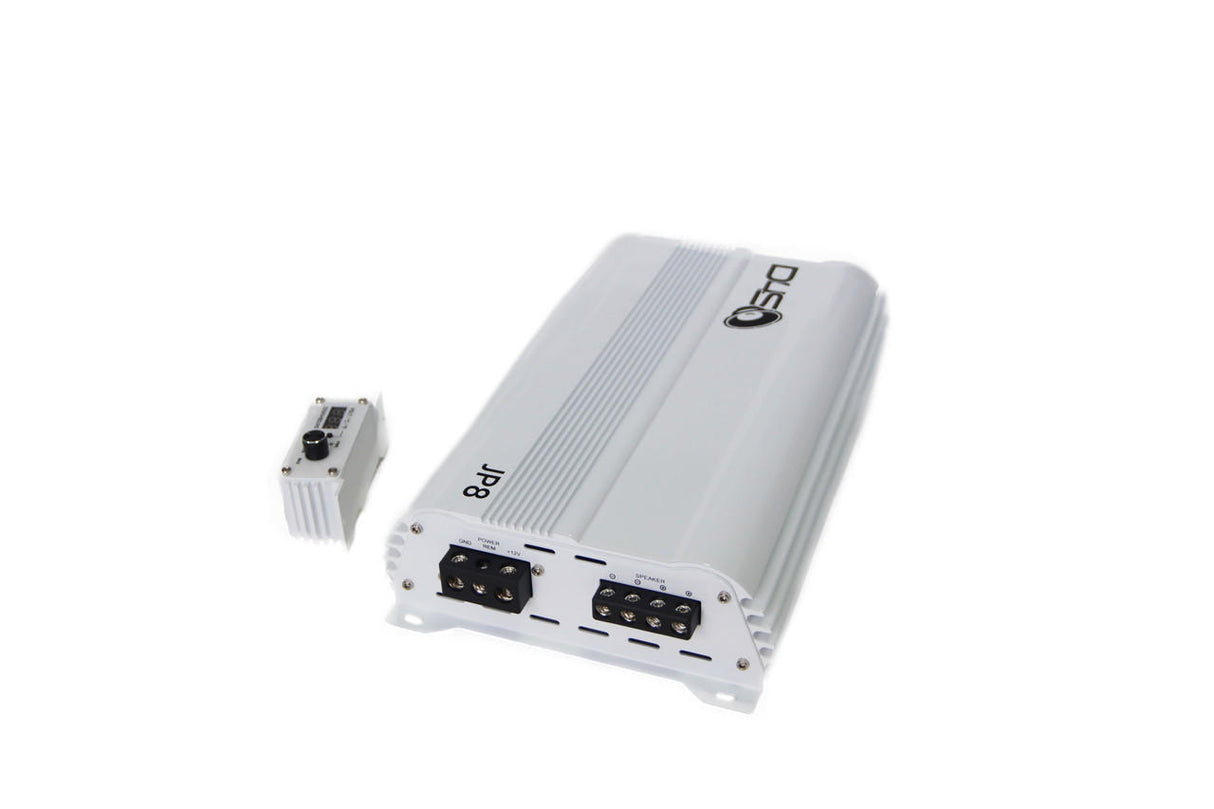

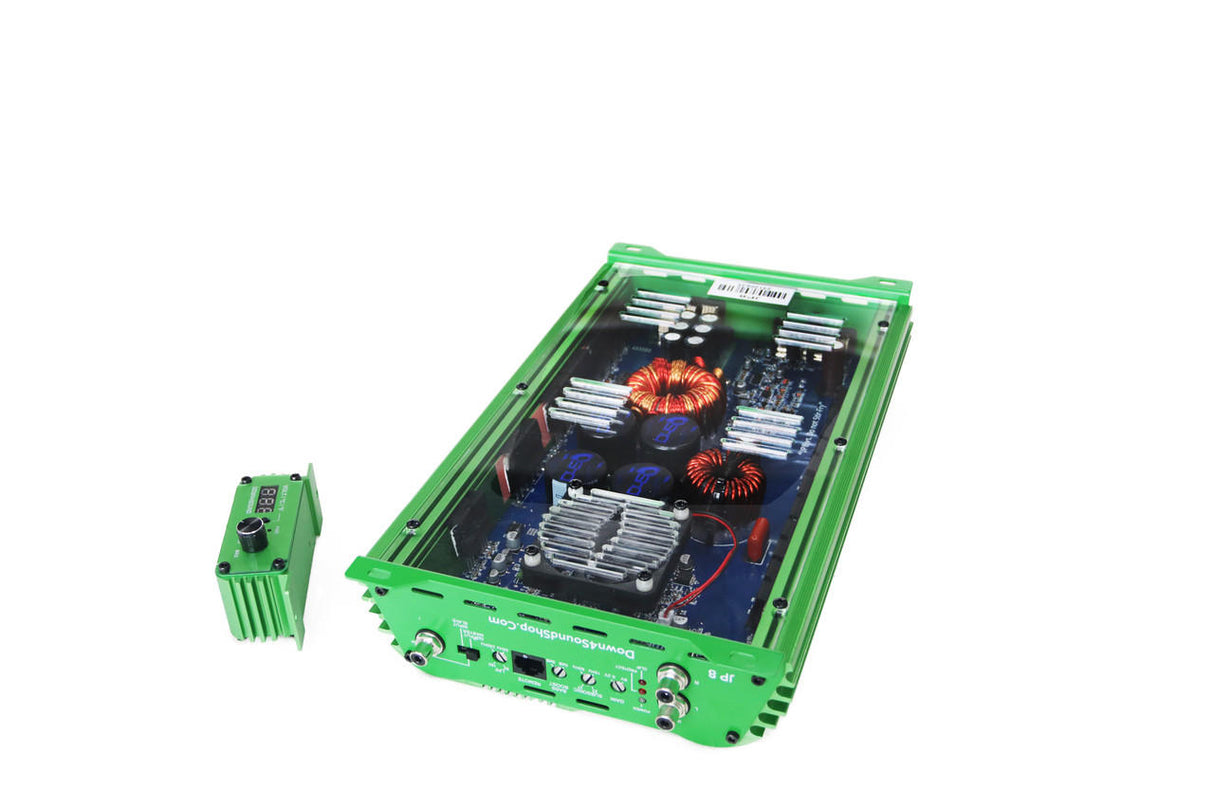

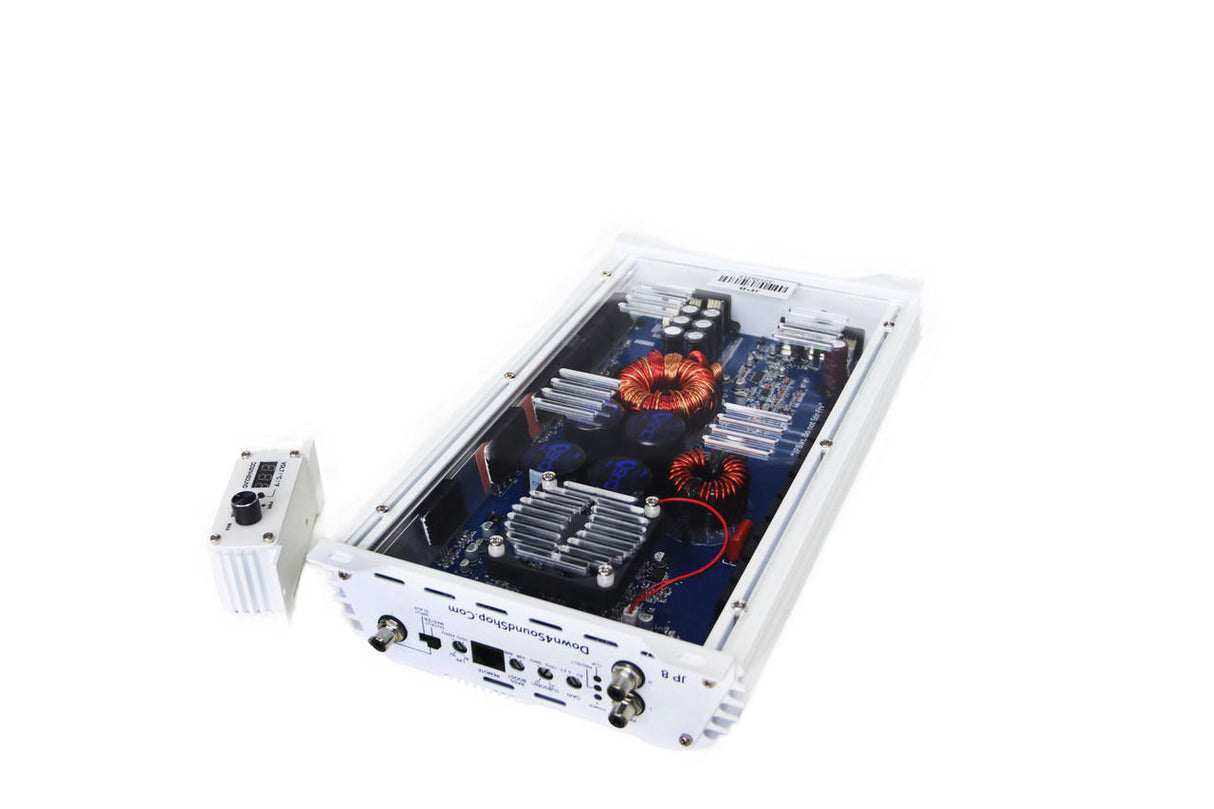

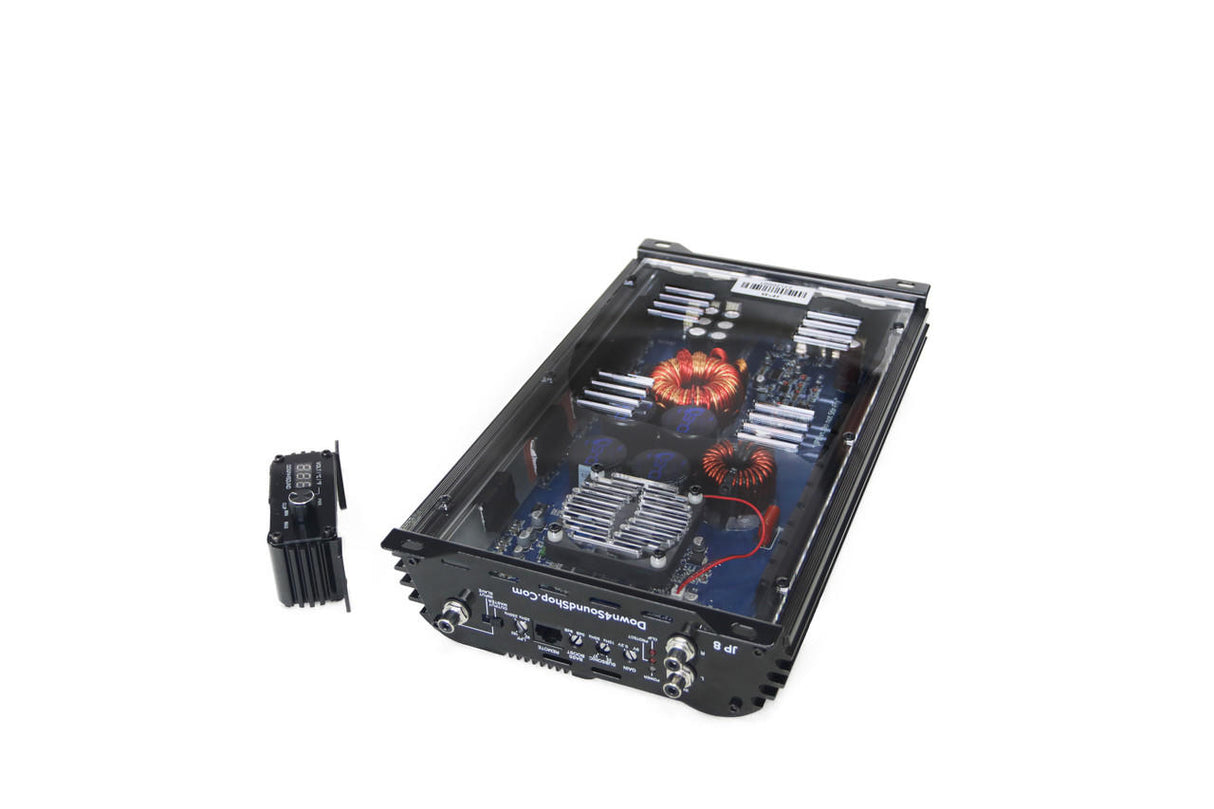

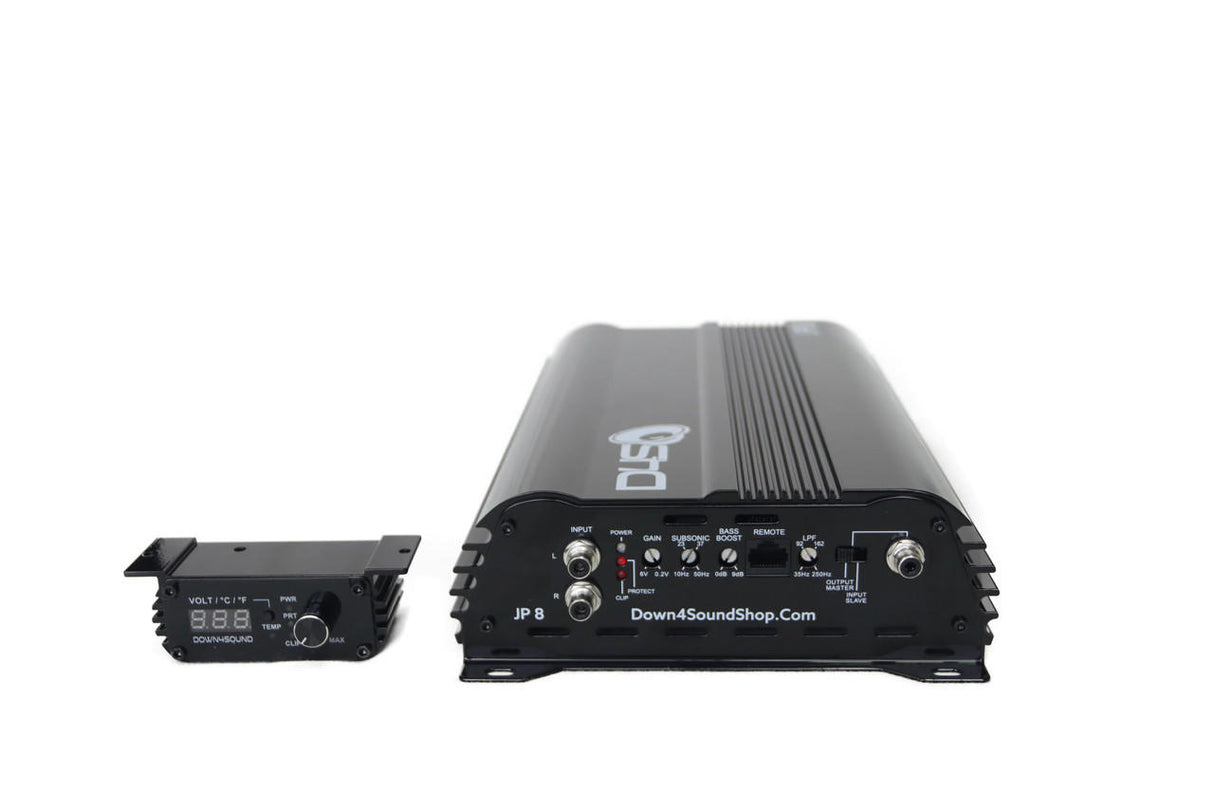

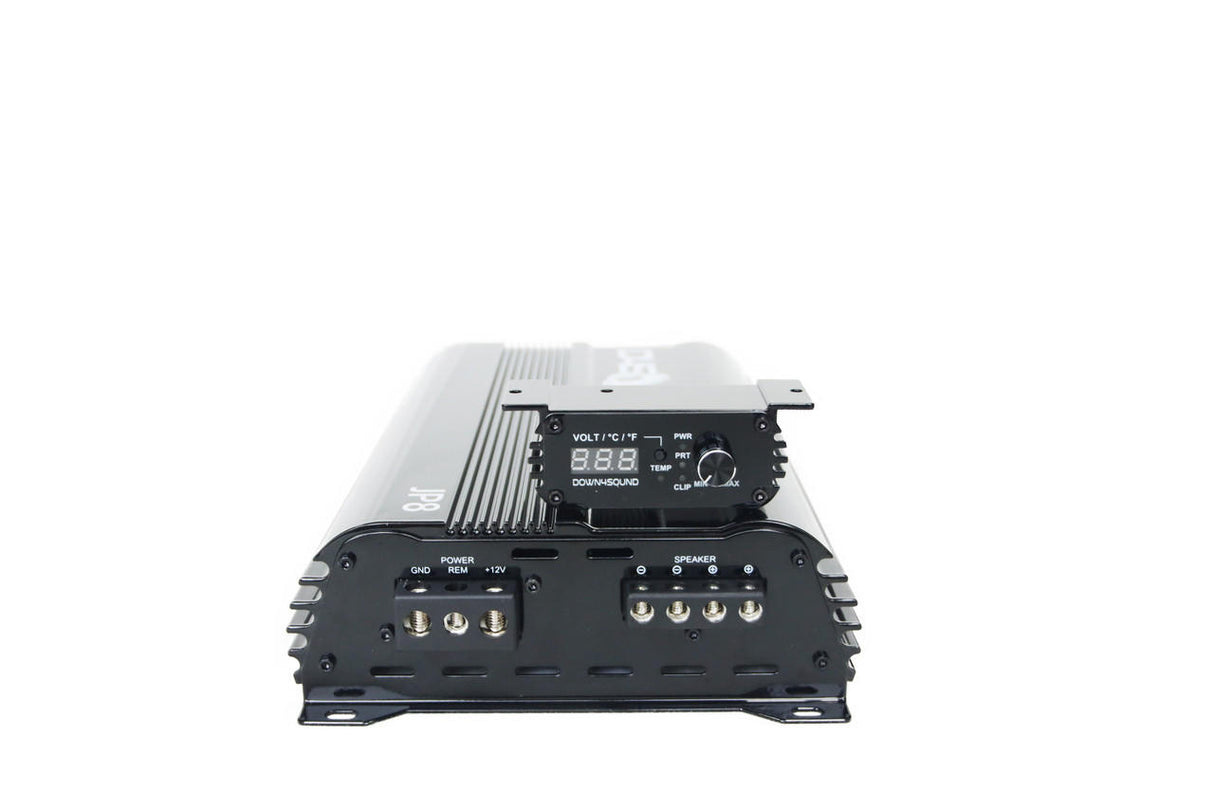

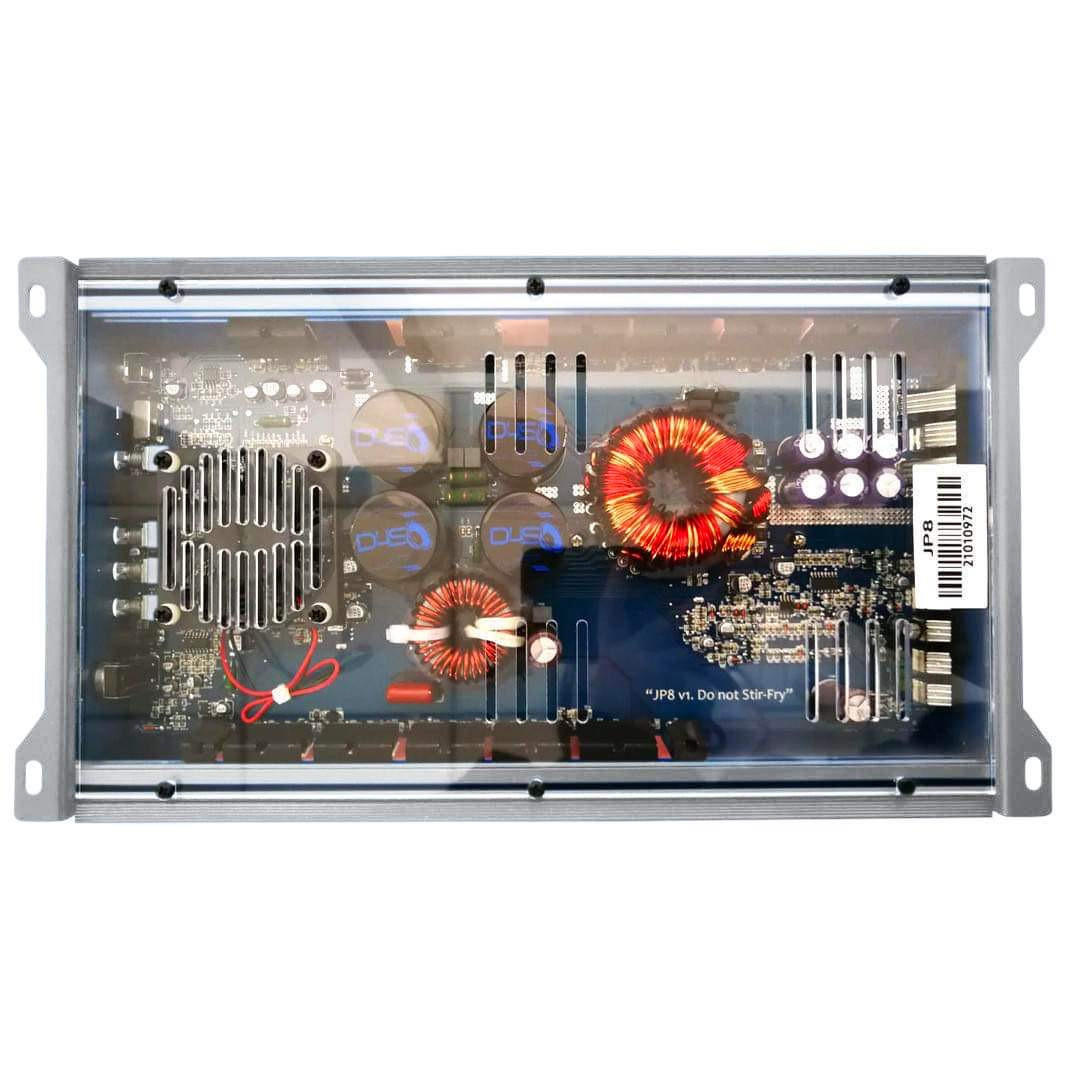

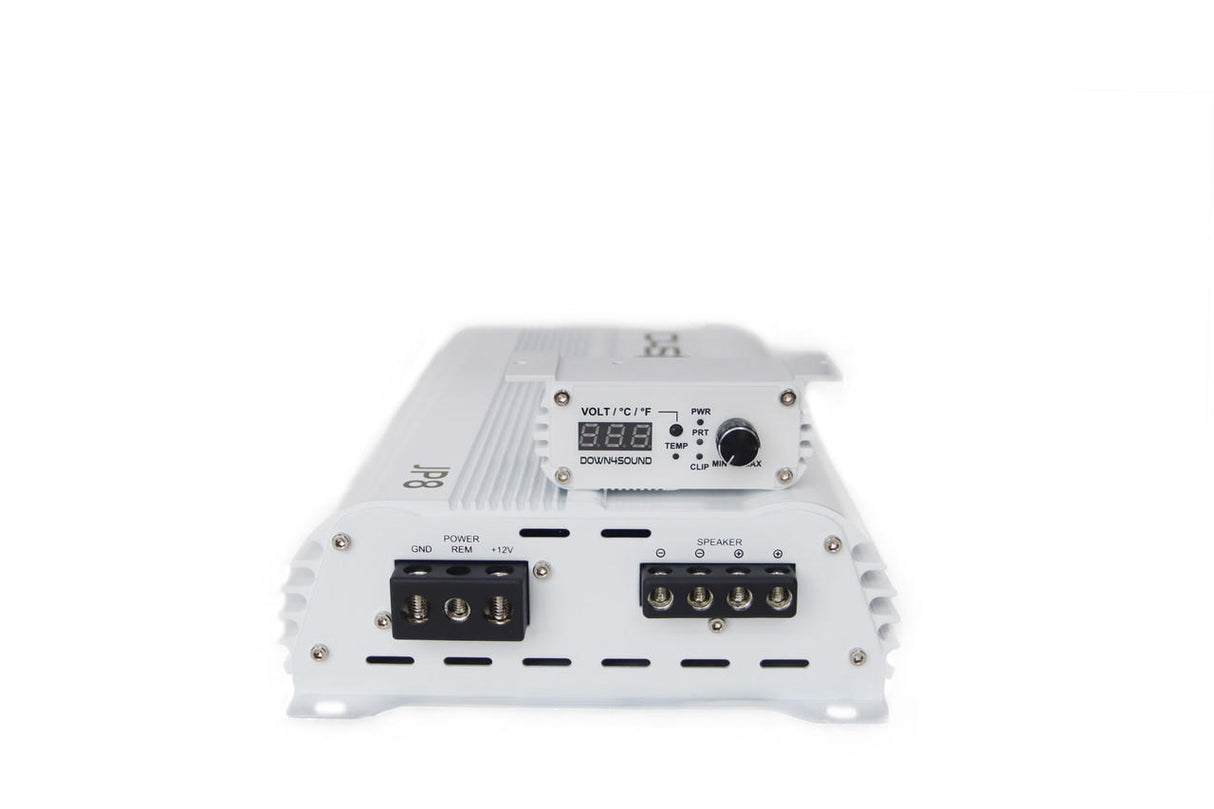

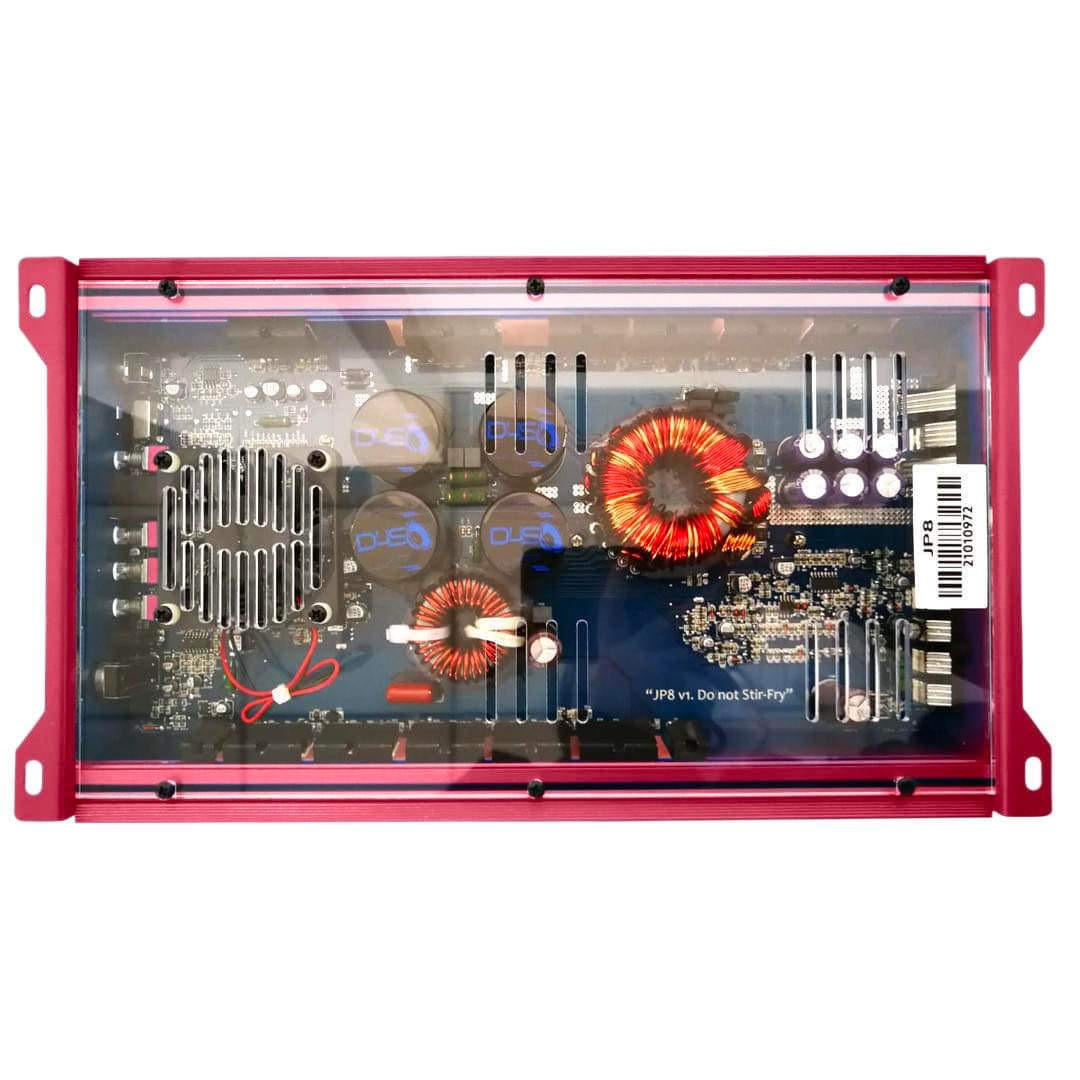

The included remote is packed with information like amp temperature, battery voltage, power, protection, and clipping status. With a Plexi base included, you can flip the amp over to see the heart of the Class D design!

SPECIFICATIONS

Frequency Response: 10 - 270Hz

Variable Low Pass Filter: 35 - 250Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9dB

Signal to Noise: 97dB

Total Harmonic Distortion: <0.1%

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 9 to 16 Volts

Recommended Fuse: 120 Amps

Dimensions: 11.81” Long x 7.4” Wide x 2.24” High
