Sundown Audio SA 15" v.2 1000 watt Subwoofer
Description
Description
SA v.2 15" Subwoofer
RMS 1000 watts
Dual 2 or 4 ohm voice coils
Vented magnetic gap
Aluminum 2.75” voice coil former for superior heat dissipation
Innovative high-velocity vented frame spacer ring
Large aluminum Faraday ring for smooth acoustic response
Patented high-strength cast aluminum frame
High-temperature voice coil wire

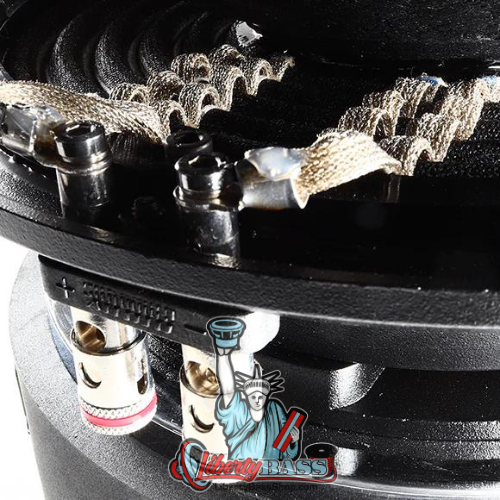

Spring-loaded terminals
Stitched-on double “XL” tinsel lead wires
This 12” SA v.2 is a top-down upgrade. The 2.75” coil punches way above its weight, outperforming most 3” coils without adding weight. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust double-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone and a strong foam surround were used to complete this masterpiece.
SA V.2 15"
| T/S SPECS | SAV2 15″ D2 | SAV2 15″ D4 |
|---|---|---|
| RE (Ohms) | 3.89 | 5.83 |
| FS (Hz) | 36.8387 | 37.4160 |
| VAS (L) | 51.9387 | 45.3391 |
| Qes | 0.5847 | 0.6963 |
| Qms | 5.1005 | 5.7094 |
| Qts | 0.5245 | 0.6206 |
| Le (mH) | 3.6326 | 4.7903 |
| BL (NA) | 24.4656 | 29.1578 |
| Mms (Grams) | 388.9706 | 431.9464 |
| Cms (uM/N) | 47.9860 | 41.8886 |
| Sens (dB @ 1w/1m) | 88.22 | 87.08 |
SA V.2 15"
| Sealed Enclosure | 2.0 cu ft |
| Ported Enclosure | 3.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 44 sq in |
| Displacement | |
| Depth | 8.65" |
| Outside Diameter | 15.59″ |
| Cut-Out | 14.01″ |
