LibertyBassShop.com | SKU:
Sold out

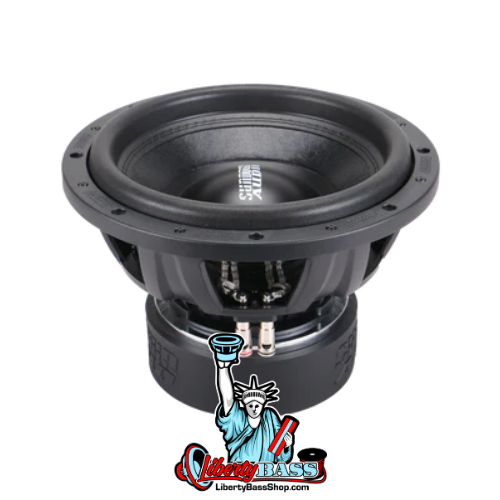

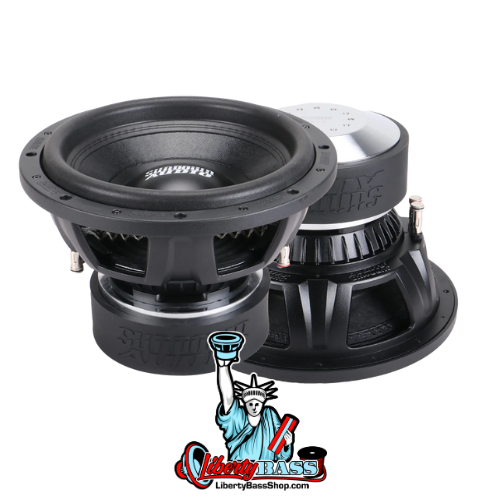

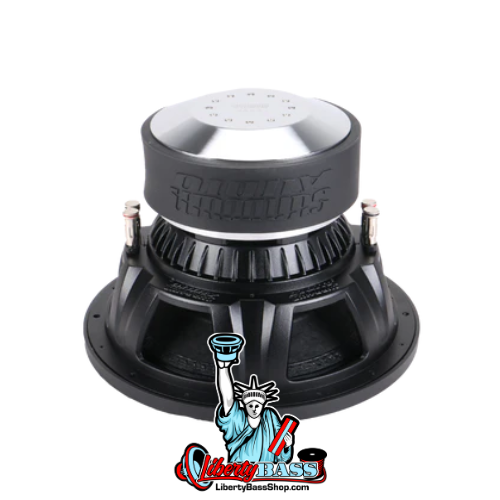

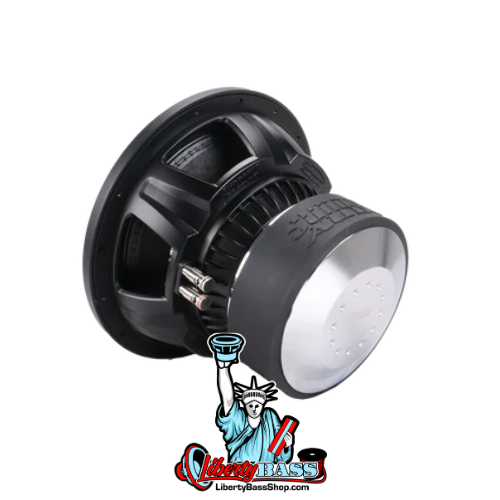

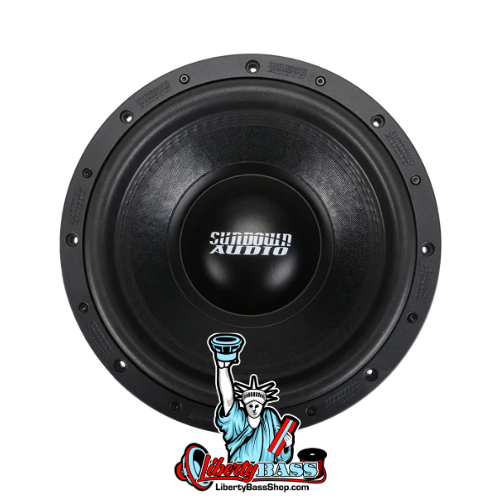

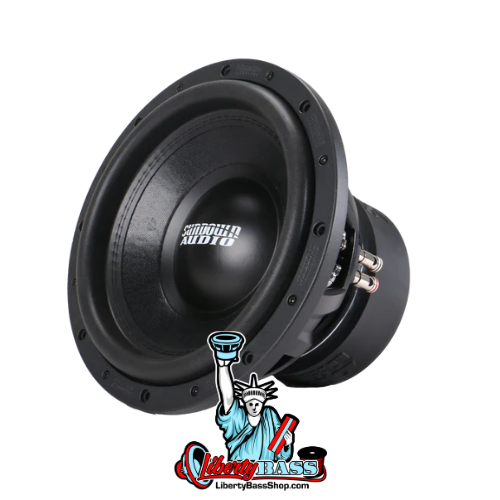

Sundown Audio SA-Series v.3 12" Subwoofer
$369.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Sundown Audio SA-Series v.3 12" Subwoofer - D4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Subscribe to our newsletter
Sign up for exclusive offers.
Sundown Audio SA-Series v.3 12" Subwoofer
$369.99 USD
Unit price
/
Unavailable
Description
Description
Sundown Audio SA-Series v.3 12" Subwoofer
- RMS 1250 watts
- Dual 2 or 4 ohm voice coils
Specifications
| RE (Ohms) | 3.04 | 6.06 |
| FS (Hz) | 35 | 35 |
| VAS (L) | 22.188 | 19.22 |
| Qes | 0.525 | 0.516 |
| Qms | 2.308 | 2.396 |
| Qts | 0.428 | 0.424 |
| Le (mH) | 3.1785 | 4.6357 |
| BL (NA) | 22.99 | 32.182 |
| Mms (Grams) | 369.747 | 372.752 |
| Cms (uM/N) | 55.431 | 48.017 |
| Sens (dB @ 1w/1m) | 84.05 | 84.9 |
| Xmax | 22mm | 22mm |
| T/S SPECS | SAV3 12″ D2 | SAV3 12″ D4 |
|---|
Enclosure Specifications
| Sealed Enclosure | 1.0 cu ft |
| Ported Enclosure | 1.75 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 26 sq in |
| Displacement | .18 cu ft |
| Depth | 8.4" |
| Outside Diameter | 12.84″ |
| Cut-Out | 11.2″ |
| Physical Dimensions | Download |
