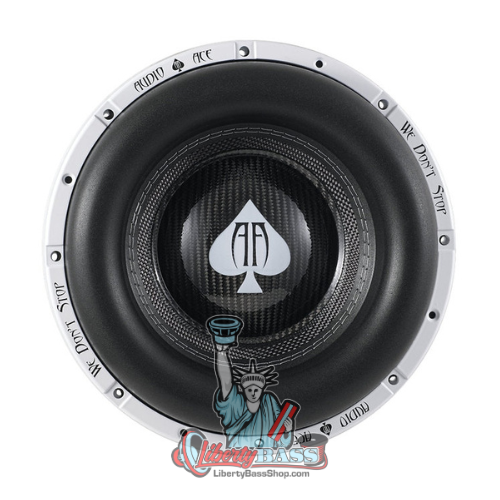

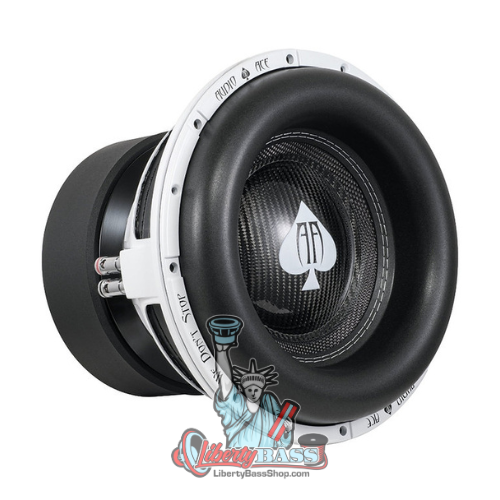

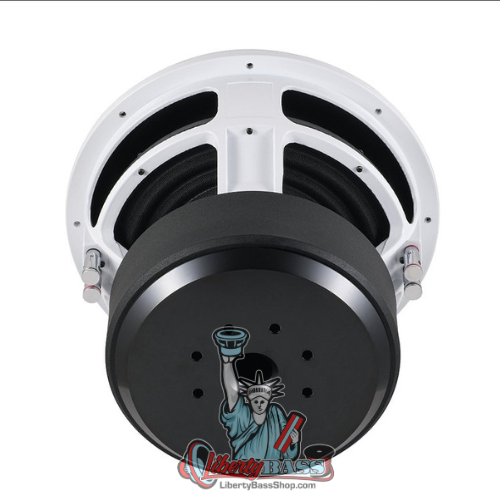

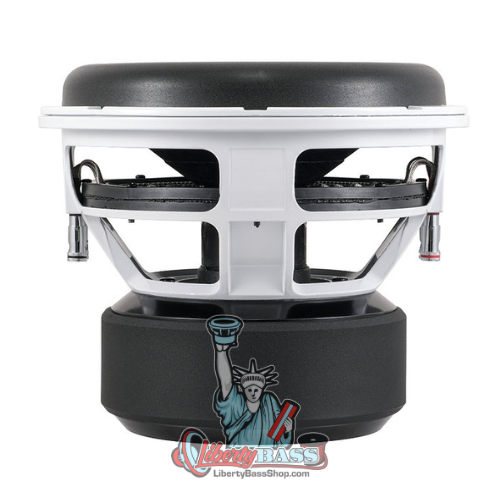

Audio Ace Jester 12" Subwoofer D2

Built with the Goal of acheiving a high level of SQ/SPL. The JESTER is conservatively rated at 3,000RMS. Designed with a fairly low FS and a strong motor structure allows the Jester to be versatile enough to sound great across a wide range of music. Whether you are looking to be one of the loudest vehicles in your town, or just wanting to enjoy the bass in your daily driver at EXTREME sound levels, the Jester is a Perfect Choice!

"WeDontStop" Locking Ring

12" High Performance Subwoofer

Dual 2 ohm coil

Heavy Duty Die Cast Aluminum Basket

3" BACCAW 4 Layer Voice Coil

300 Oz Magnet Structure4 Layer 10" Spider

47.6Lbs Total

Ts parameters done with Klippel machine after 20 hours of free air break in

Re 3.86

Le 3.051

L2 7.687

R2 17.31

Cmes 598.40

Lces 37.50

Res 51.07

Fs 33.6

Mms 468.912

Mmd 458.039

Rms 15.344

Cms .048

Kms 20.90

Bl 27.993

Qtp .470

Qms 6.451

Qes .488

Qts .453

Vas 13.8609

n0 .104

Lm 82.36

Lnom 82.51

Sd 452.39

Mounting Depth 8.5 inches

Cutout Diameter 11.25 inches

Box Recommendatio- 1.25 Cubic Feet

*ONE YEAR WARRANTY AGAINST DEFECTS ONLY*

Audio Ace warrants any products purchased from an AUTHORIZED Audio Ace dealer to be free of defects in material and workmanship under regular use for a period of ONE (1) YEAR from the date of original purchase. Please see our Store Policy for more information. ALL SALES ARE FINAL.
