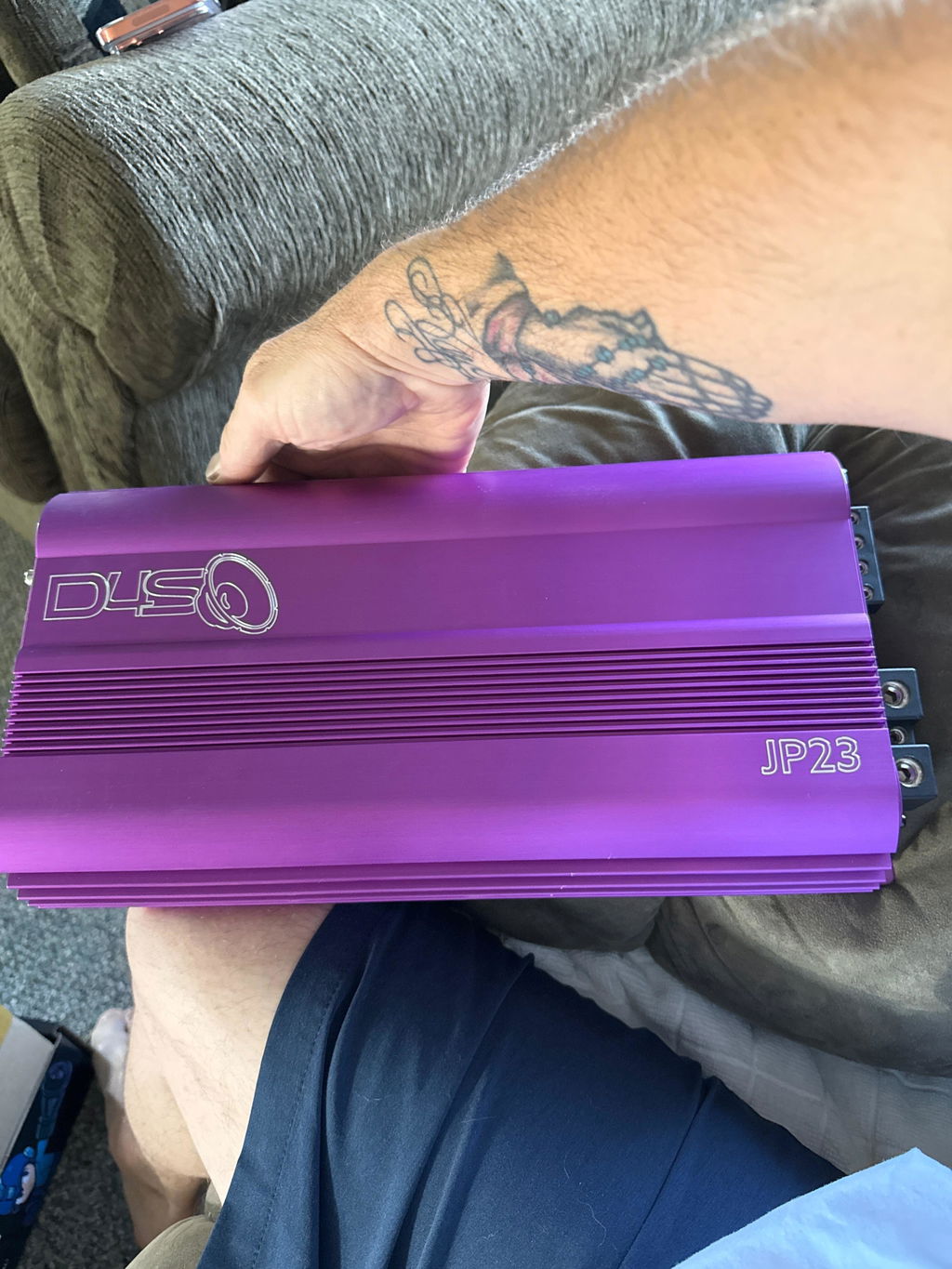

Down4Sound JP23 V2 Bass Amp

Mono Class D Amplifier

On Board Power & Protection Indicators

Strappable Design

Variable Low-Pass, Bass Boost & Subsonic Filters

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

1/0 AWG Power & Ground Inputs

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)

Power

Max Rated Output (Strapped to a second JP23 V2): 5,600 Watts

1 Ohm RMS: 2,800W

2 Ohm RMS: 1,800W

4 Ohm RMS: 800W

More than 20% smaller yet more powerful than V1.5, and with better sound quality, the Down4Sound JP23 V2 is capable of nearly 3K on its own. Strap another JP23 together for a single 5,600-watt powerhouse!

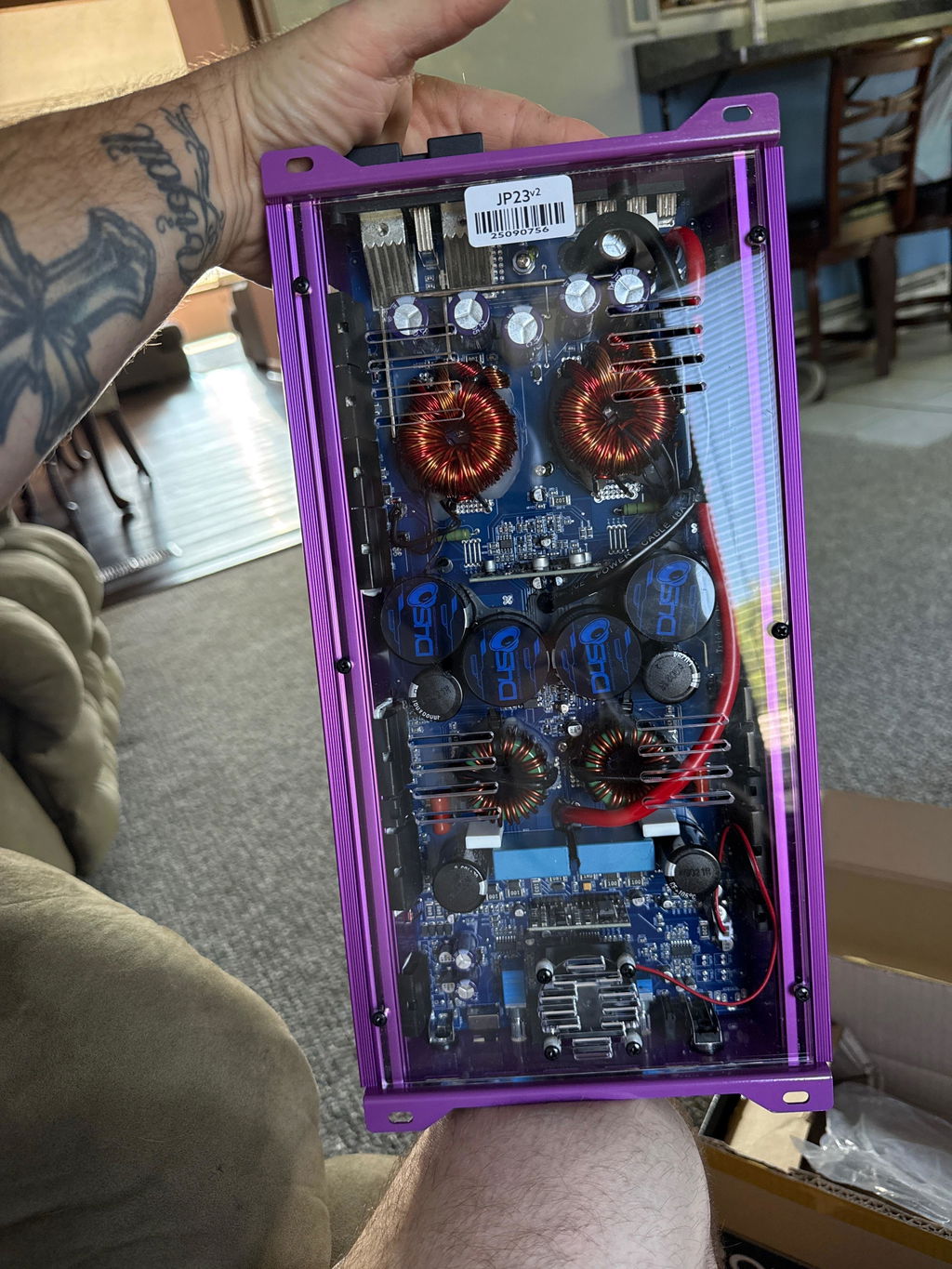

Available in eleven brilliant colors and equipped with a variable 9 dB bass boost, subsonic, and lowpass acoustic controls, this amp is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers. With a plexi base included, you can flip the amp over to see the heart of the Class D design.

SPECIFICATIONS

Frequency Response: 10 - 250Hz

Variable Low Pass Filter: 35 - 270Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9 dB

Signal to Noise: 97dB

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 9 to 15.5 Volts

Recommended Fuse: 300 Amps

Dimensions: 13.38” Long x 7.4” Wide x 2.24” High
